Note: Due to the snug fit, use caution
when installing the Banks iQ into the
window mount.
4.
Find a suitable place on the
windshield for ease of access and
viewing of Banks iQ. Use location
shown in figure 12 as a reference
for mounting Banks iQ in your vehicle.
Loosen the knob and move the swivel
suction plate to achieve desired viewing
angle of the Banks iQ screen. Do a test
fit and note the angle necessary to
achieve the correct viewing angle.
5.
Make sure the suction cup and the
mounting area on the windshield are
clean and dry. With the suction lever in
the up position, ensure the suction cup
is flat against the windshield, and then
push the suction lever down to secure
in place.
6.
Locate the Banks OBD II Interface
Cable in your kit. This cable has three
connection points. Connect the RED
OBD II connector on the Banks interface
cable to the vehicle OBD II connector.
Use a cable tie as shown in figure 13 to
secure the Banks interface cable to the
vehicle OBD II connector.
7.
Next, connect the 6-pin connector on
the Banks OBD II interface cable to the
6-pin connector on the Six-Gun Tuner
harness.
Fuse
Access
Panel

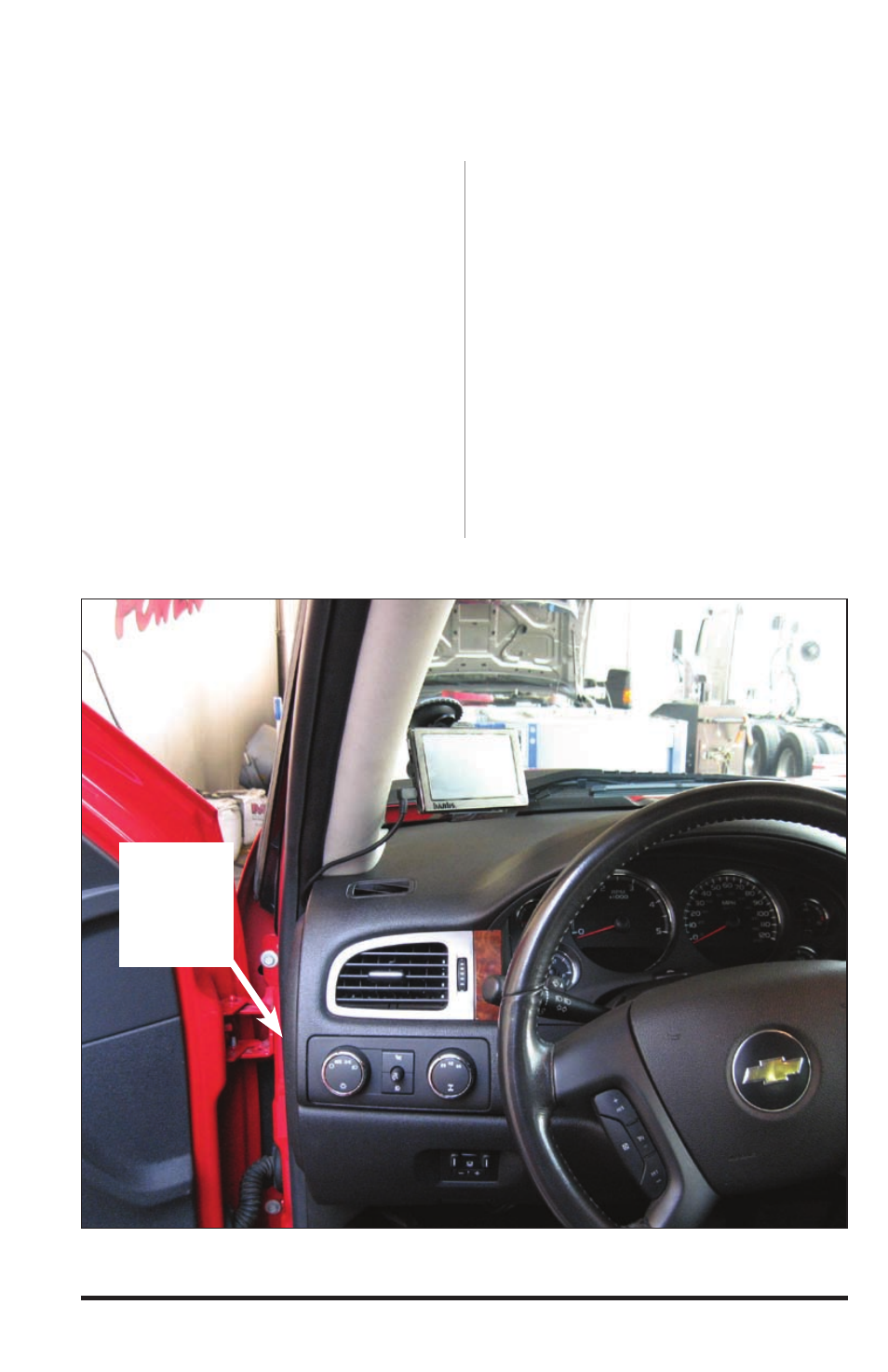

Figure 12 Mounting location for Banks iQ, Chevy LMM Shown.
