4.
Find a suitable place on the
windshield for ease of access and
viewing of Banks iQ. Use location
shown in figure 15 as a reference
for mounting Banks iQ in your
vehicle. Loosen the knob and move
the swivel suction plate to achieve
desired viewing angle of the Banks
iQ screen. Do a test fit and note the
angle necessary to achieve the correct
viewing angle.
5.
Make sure the suction cup and the
mounting area on the windshield are
clean and dry. With the suction lever
in the up position, ensure the suction
cup is flat against the windshield, and
then push the suction lever down to
secure in place.
6.
Next, remove and set the fuse
access panel aside. See figure 16.
7.
Locate the Banks OBD II Interface
Cable in your kit. This cable has
three connection points. Connect the
RED OBD II connector on the Banks
interface cable to the vehicle OBD II
connector. Use a cable tie as shown
in figure 17 to secure the Banks
interface cable to the vehicle OBD II
connector.
8.
Next, connect the 6-terminal
connector on the Banks OBD II
Interface Cable to the 6-pin connector
on the Banks SpeedBrake wire
harness.
Note: If your vehicle is equipped
with a Banks Diesel tuner, optional
tuner-to-SpeedBrake cable will be
needed (P/N 55411). See Figure
18. Disconnect the 6-pin terminal
connections between Banks oBD
II Interface Cable and Banks Diesel
tuner. Connect the oBD II 6-pin male
connector to the optional tuner-to-
SpeedBrake 6-pin female connector.
Connect the three (3) wire 6-pin male
connector to the Diesel tuner female
6-pin connector and connect the five
(5) wire 6-pin male connector to the
SpeedBrake female 6-pin connector.

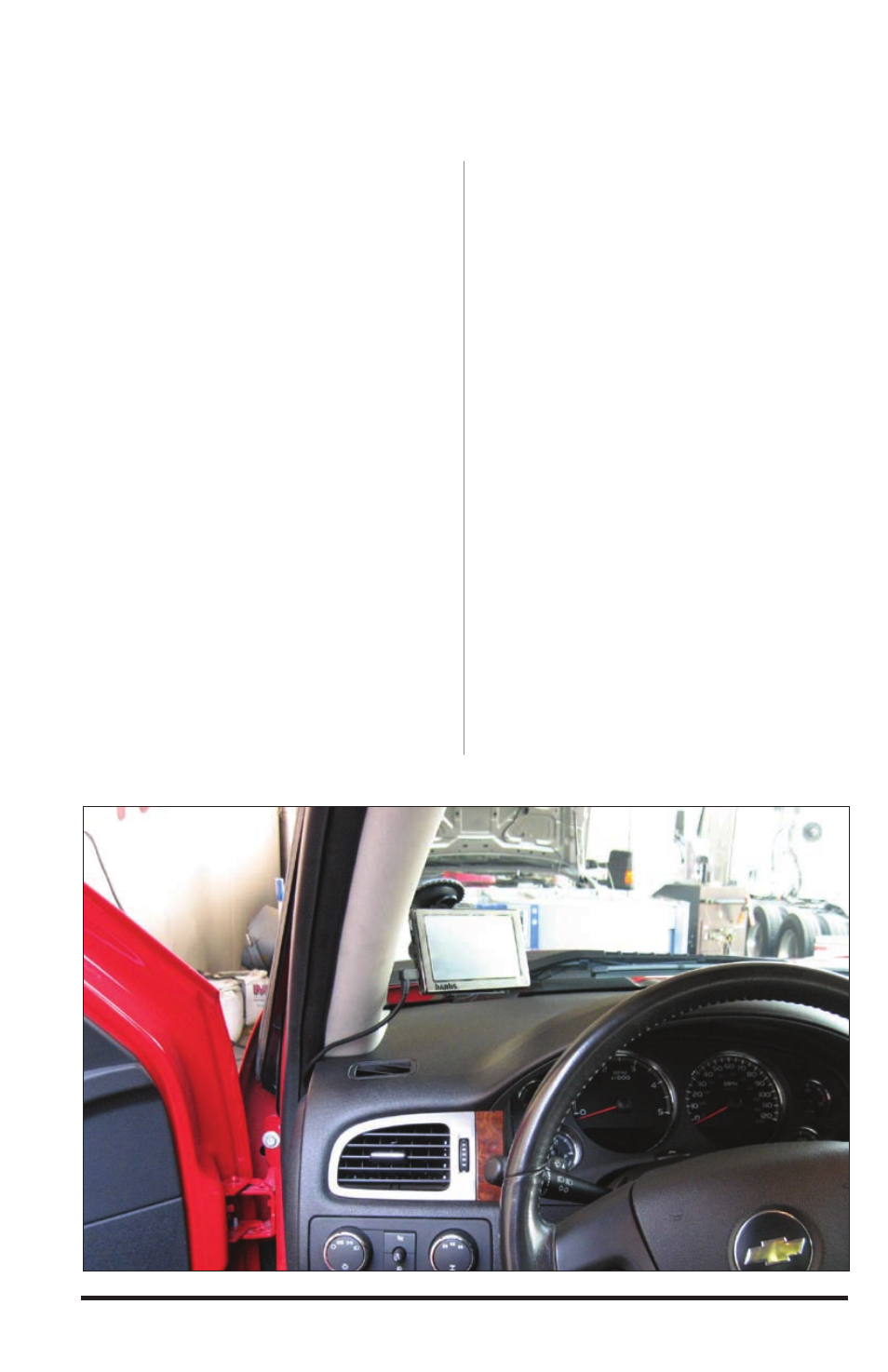

Figure 15 Mounting location for Banks iQ, Chevy LMM Shown.
