96506 v.8.0
31
Section 6 not needed if installing
the Power Level Selector Switch. If
this is the case, please proceed to
Section 7.
Note: This system has been
designed for use with the Palm
Tungsten E2 PDA.
Warning: The PDa may be
susceptible to damage as a
result of extended exposure
to sunlight, heat or extreme
cold. It is highly recommended
that the PDa be removed from
its mounting location if the
vehicle will be subjected to high
concentrations of sunlight, heat
or cold for an extended period
of time. Gale Banks Engineering
is not responsible for damage to
PDas resulting from exposure
conditions.
1.
Locate the Universal Mount and
Docking Station in your kit. Now
interlock the docking station to the
Universal Mount by inserting and
sliding the Universal Mount tabs into
the Docking Station grooves. See
Figure 6.1.
2.
Loosen both knobs and move and
the swivel suction plate and Docking
Station to achieve desired viewing
angle of PowerPDA screen. Do a test
fit and note the angle necessary to
achieve the correct viewing angle.
Tighten both knobs to lock in the
position. See Figure 6.1.
Note: If the universal mount swivel
does not move or is tight after
loosening the hold down knob, then
remove the previously inserted
docking station and slightly loosen
the tension screw. See Figure 6.2.
3.
Locate the alcohol swap in the
kit. clean the suction cup and the
mounting area on the windshield and
let dry. With the suction lever in the
up position ensure the suction cup is
flat against the windshield then push
suction level down to secure in place.
4.
Locate the Banks OBD II Interface
cable in your kit. This cable has
three connection points. connect
the RED OBD II connector on the
Banks interface cable to the vehicle
OBD II connector. Use a cable tie as
shown in Figure 6.3 to secure the
Banks interface cable to the vehicle
OBD II connector. Next, connect the
6-pin connector on the Banks OBD II
interface cable to the 6-pin connector
on the EconoMind Tuner harness.
5.
Locate the RJ12 cable (similar to
telephone connector) on your Banks
Interface cable and pull enough cable
through to reach the bottom of the
Docking Station.
6.
Route the RJ12 cable to reach the
Docking Station and connect it to the
left most receptacle on the bottom of
the Docking Station.
Note: You may need to remove and
or loosen dash panel or covers to
install the RJ12 cable between dash
crevice or behind dash panels.
WarNING: THE CHarGING CaBLE
oN THE DoCkING STaTIoN
IS DESIGNED To SUPPLY a
CoNSTaNT LoW-VoLTaGE PoWEr
SoUrCE (+5VDC) To THE BaNkS
PoWErPDa aND IS “LIVE”
aS LoNG aS THE SYSTEM’S
oBD II INTErFaCE CaBLE IS
CoMPLETELY INSTaLLED aND THE
rJ12 CoNNECTor IS PLUGGED
INTo THE DoCkING STaTIoN.
aLTHoUGH THIS CHarGING CaBLE
IS SHorT aND ITS CIrCUITrY IS
FUSE-ProTECTED, THE USEr IS
ExPECTED To TakE aPProPrIaTE
MEaSUrES To PrEVENT SMaLL
Section 6
MoUNTING THE DoCkING STaTIoN aND CoNNECTING THE BaNkS PoWErPDa
VEHICLE CoMMaND CENTEr

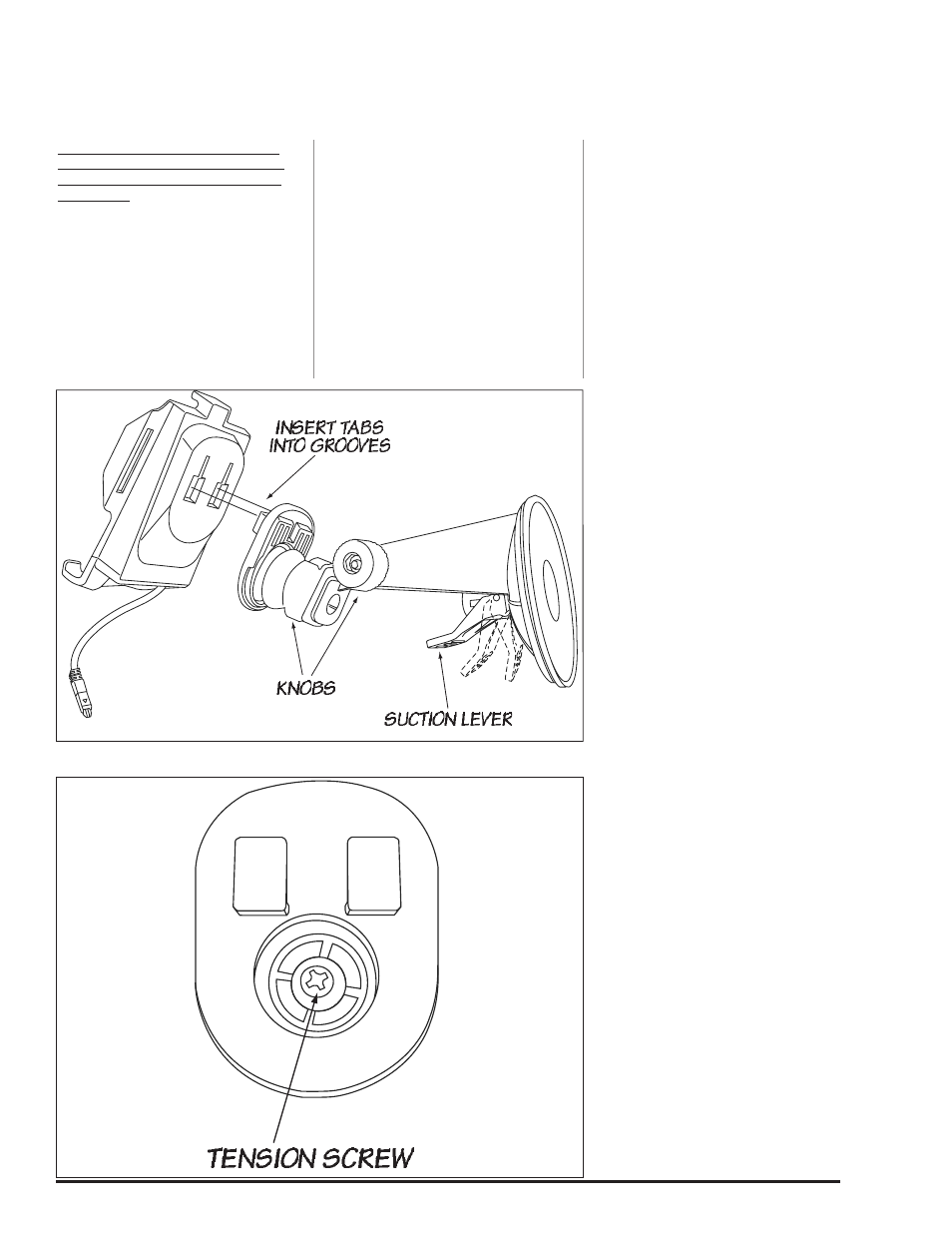

Figure 6.1
Figure 6.2
