Banks Power Ford Trucks: (Diesel ’03 - 07 6.0L Power Stroke) Speed Control- SpeedBrake Quick Reference Guide (PDA) For use with PowerPDA - Manual (Page 2)

1.
With vehicle key in “RUN” position, press the
PowerPDA “poweR” button.
2.
If the System Monitor Screen is not displayed as
shown above, press the “BaNks BRake” icon.
3.
Press Up on the 5-way navigation button to toggle
between modes. The Mode will be displayed in the
lower left hand corner of the PDA screen.
4. While in the “speeD CoNTRoL” mode, press left on
the 5-way navigation button to decrease target
speed and right to increase. Press “DowN” on the
5-way navigation button to toggle through preset
target speeds.
5.
Press the center of the 5-way navigation button to
access the System Menu.
For more detailed information on SpeedBrake
features, consult the Advanced User Manual.
Gale Banks Engineering
546 Duggan Ave., Azusa, cA 91702
(626) 969-9600 • Fax (626) 334-1743 Product Information & Sales: (888) 635-4565
Caution: Your Banks SpeedBrake is not a substitute
for the hydraulic brakes on your truck. the device will
not correct or compensate for improperly maintained
hydraulic brakes. also, please be aware that your
Banks SpeedBrake is not designed to be used as a
parking brake or to bring your vehicle to a complete
stop. Your Banks SpeedBrake is a supplementary
braking system designed to help you slow down or
to assist you in maintaining a more constant speed
when descending a grade. Remember that this
SpeedBrake is first and foremost a preemptive device
and it is most efficient when used to help prevent,
rather than correct, a vehicle over speed situation.
the use of a Banks SpeedBrake does not increase the load
capacity of your vehicle. Gross combined Weight Rating
specifications should always be adhered to. the Banks
SpeedBrake will allow you to slow your vehicle more
effectively within your vehicle’s weight specifications.
bankspower.com

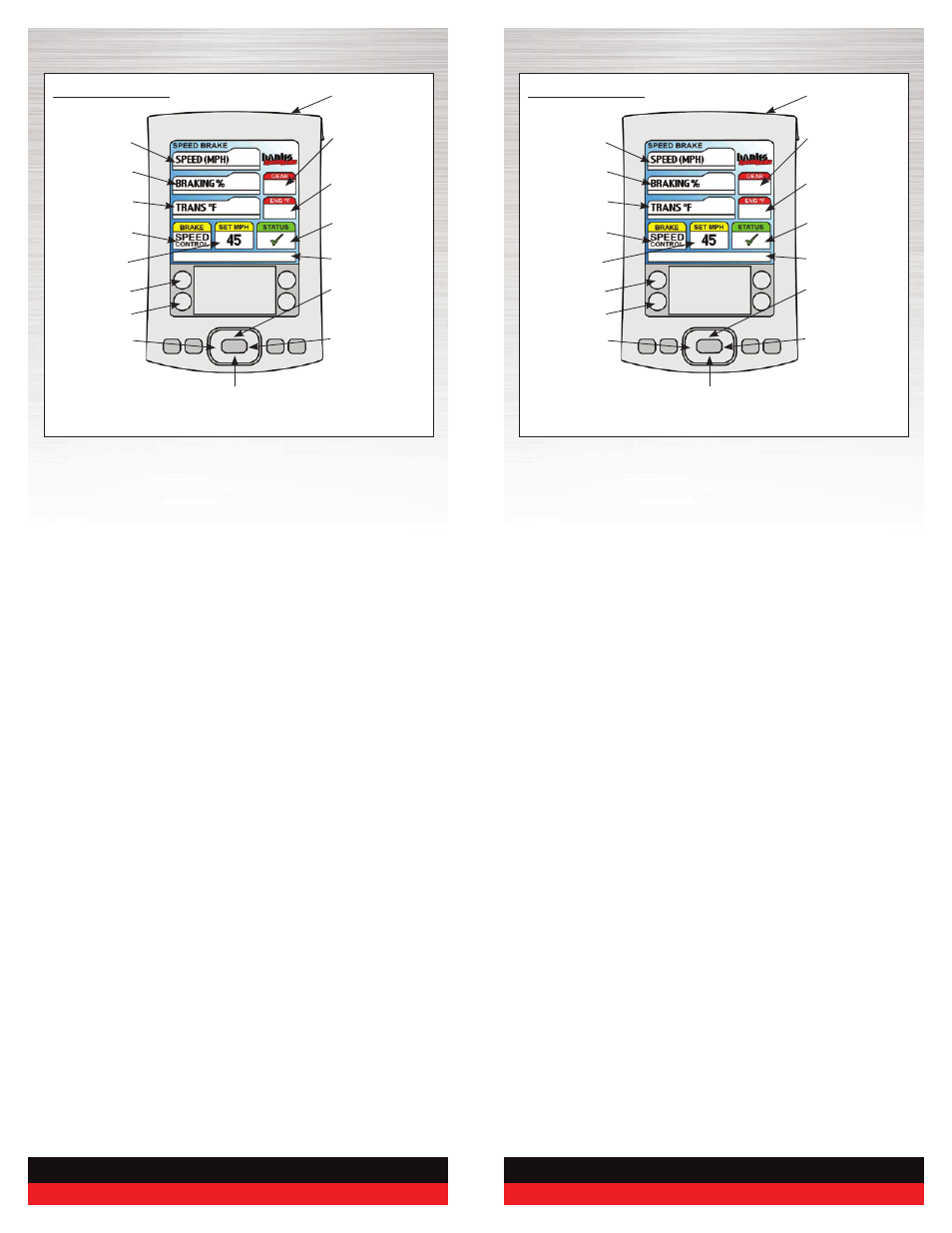

Vehicle
