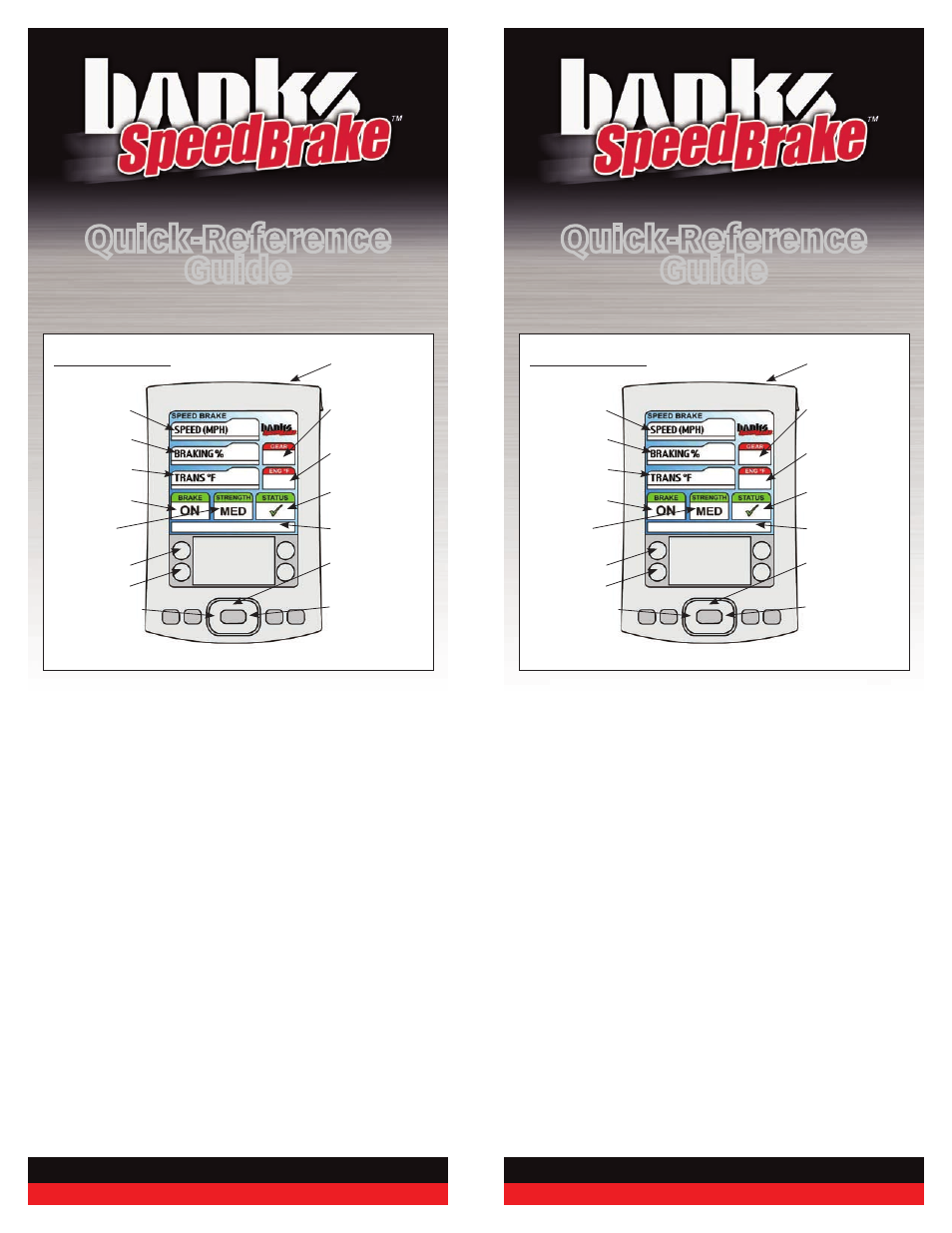

Banks Power Ford Trucks: (Diesel ’03 - 07 6.0L Power Stroke) Speed Control- SpeedBrake Quick Reference Guide (PDA) For use with PowerPDA User Manual
Quick-reference guide quick-reference guide, On mode

Vehicle
Speed
driVe Gear
decreaSe BrakinG
StrenGth leVel
when in on Mode.
increaSe BrakinG
StrenGth leVel
when in on Mode.
Mode Select:
chanGe Between
ModeS
enGine
teMperature
SpeedBrake
indicator
StatuS
application of
the SpeedBrake
tranSMiSSion
teMperature
SpeedBrake
Mode
Brake
StrenGth
leVel
hoMe key
Menu key
on Screen
alert diSplay
power
SySteM Monitor Screen
11/1/09 PN 97234 v.3.0
©2009 Gale Banks Engineering
Caution: using the HiGH setting with a lightly loaded
vehicle will result in VERY aggressive braking activity.
Become familiar with the characteristics of the Strength
settings before encountering slippery road conditions
(i.e. snow or rain).
on Mode
11/1/09 PN 97234 v.3.0
©2009 Gale Banks Engineering
Caution: using the HiGH setting with a lightly loaded
vehicle will result in VERY aggressive braking activity.
Become familiar with the characteristics of the Strength
settings before encountering slippery road conditions
(i.e. snow or rain).
1.
With vehicle key in “RUN” position, press the PowerPDA
“poweR” button.
2.
If the System Monitor Screen is not displayed as shown
above, press the “BaNks BRake” icon.
3.
Press Up on the 5-way navigation button to toggle
between modes. The Mode will be displayed in the
lower left hand corner of the PDA screen.
4.
While in the “oN” mode, press left on the 5-way
navigation button to decrease Brake Strength and right
to increase. Brake Strength will be displayed in the
lower center of the PDA screen.
5.
Press the center of the 5-way navigation button to access
the System Menu.
For more detailed information on SpeedBrake features,
consult the Advanced User Manual.
on Mode
1.
With vehicle key in “RUN” position, press the PowerPDA
“poweR” button.
2.
If the System Monitor Screen is not displayed as shown
above, press the “BaNks BRake” icon.
3.
Press Up on the 5-way navigation button to toggle
between modes. The Mode will be displayed in the
lower left hand corner of the PDA screen.
4.
While in the “oN” mode, press left on the 5-way
navigation button to decrease Brake Strength and right
to increase. Brake Strength will be displayed in the
lower center of the PDA screen.
5.
Press the center of the 5-way navigation button to access
the System Menu.
For more detailed information on SpeedBrake features,
consult the Advanced User Manual.
Vehicle
Speed
driVe Gear
decreaSe BrakinG
StrenGth leVel
when in on Mode.
increaSe BrakinG
StrenGth leVel
when in on Mode.
Mode Select:
chanGe Between
ModeS
enGine
teMperature
SpeedBrake
indicator
StatuS
application of
the SpeedBrake
tranSMiSSion
teMperature
SpeedBrake
Mode
Brake
StrenGth
leVel
hoMe key
Menu key
on Screen
alert diSplay
power
SySteM Monitor Screen
