5 p.n. 96376
trim front
of banks
super-scoop
to match
angle of
grille
against the back side of the grille with the centerline
of the inlet opening horizontal. See Figure 4. use
heavy snips or a hacksaw to trim the air inlet opening
of the super-scoop. the height between the super-
scoop and the air inlet hood should be as great as
possible to prevent any rain water not eliminated
by the scoop’s water drain hole from climbing up
into the air filter. the curved outlet section of the
super-scoop may be trimmed back if less bend is
required to make a more streamlined hose routing.
See Figure 4 .
once a location has been determined for
the super-scoop, mount it using one of the
methods outlined below.
the banks super-scoop may be mounted by several
means. if the grille consists of horizontal bars or a
perforated metal screen heavy enough to support
the inductor, it may be secured using four 14” nylon
cable ties, provided, slipped through the ears on the
scoop and through the grille. See Figure 5.
an alternate method is to mount the inductor using
the four perforated metal straps provided. these
can be bent as required and attached to the scoop’s
ears with the 1 ⁄
4
20 x 1 11 ⁄
4
hex bolts, 11 ⁄
4
-20 nylock
nuts and 3 ⁄
4
o.d. x 5 ⁄
16
i.d. flat washers provided. the
opposite end of the straps may be attached to any
convenient mounting points such as the gravel pan,
grille brackets, etc. as required, with four no. 10 x 3 ⁄
4
”
sheet metal screws provided. a combination of cable
ties and scraps may also be used.
connect the fresh air inlet on the air filter housing
to the super-scoop using the 4” diameter flex hose
provided. cut the hose to the desired length using a
knife and diagonal cutting pliers. secure with no. 64
hose clamps.
check over the entire installation for loose
clamps or bolts, hoses and wiring too close to
hot or moving parts, sharp edges, etc. , and correct
as necessary.
start engine and listen for any exhaust leaks.
tighten bolts or clamps to correct leaks as
required. allow engine to warm up and test drive
vehicle. NOTE: Exhaust tubing will smoke for the first
15-20 minutes of operation. This is normal, as grease
used in the bending process will burn off the inside
of the pipes.
three banks powerpack plaques have been
included in your kit. these may be affixed to
your vehicle by pealing off the backing and pressing
firmly in the desired location. a piece of masking tape
applied to the vehicle with reference measurements
to other emblems or body trim may be used to level
and locate your plaques. Figure 6 shows suggested
locations for plaques.
11.
12.
13.
14.

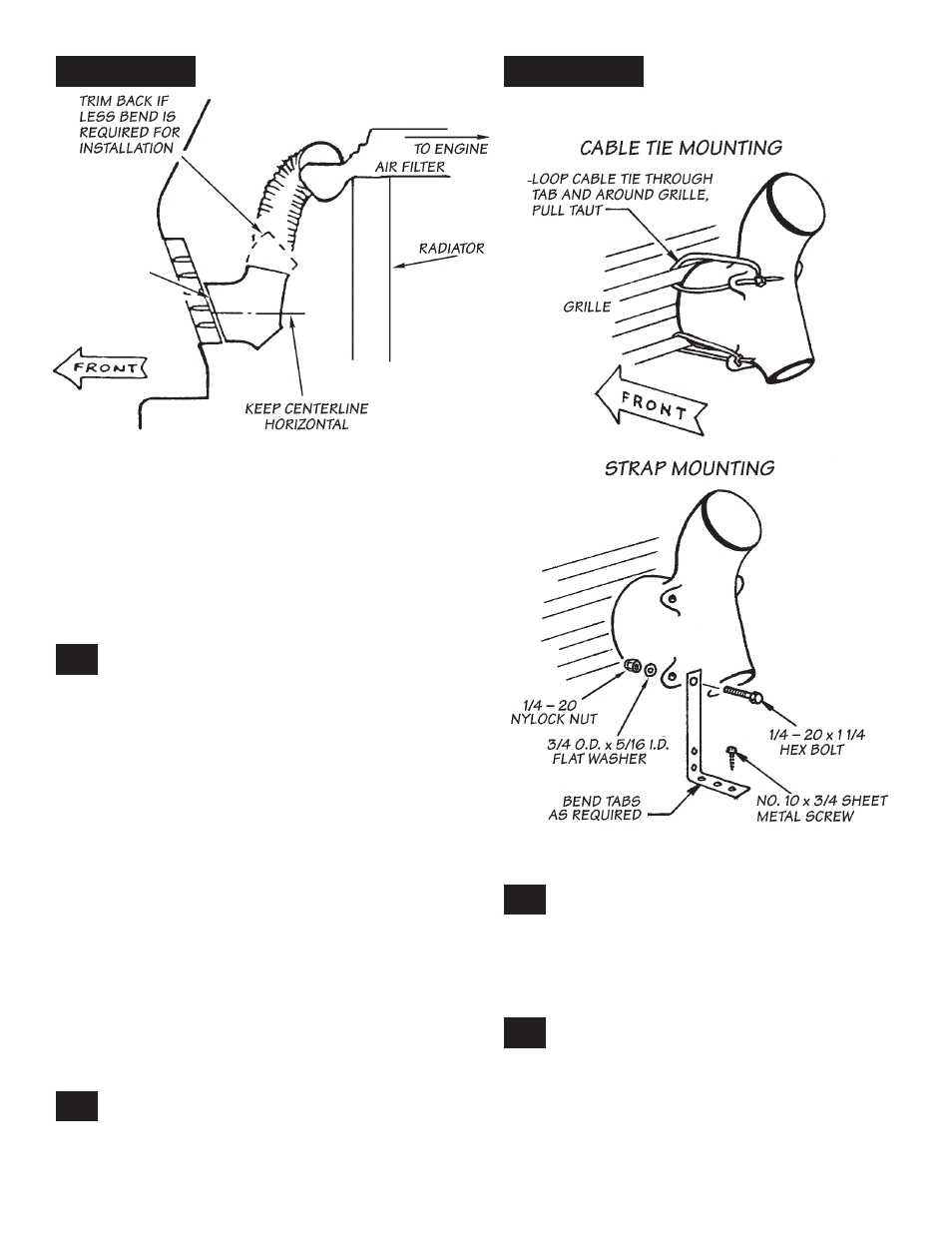

Super-SCoop mounting methodS
figure 4 figure 5
