the firewall. NOTE: Taping the end of the harness
to a piece of stiff wire (i.e. coat hanger) may
make routing the harness through the firewall
a simpler task. The stiff wire should be pushed
through the slit in the grommet and then the
wires can be attached to the stiff wire and pulled
through the hole in the firewall.
CAUTION: Pull gently to avoid damage to the
wire harness connectors. Always pull on the
wire harness convolute sheath rather than the
wires themselves.
39.
From inside the vehicle, continue to pull the
harness through the firewall until the main harness
is approximately 22
” inside the cab.
40.
FOR AUTOMATIC TRANSMISSION
VEHICLES ONLY: Insert the end of the provided
Tcc wire harness with the 4-pin connector through
the grommet from the engine compartment side
using the same hole. Pull the Tcc wire harness
from inside the cab until approximately 22” of the
wire is inside. Note: The TCC wire harness is not
applicable on vehicle with a manual transmission.
41.
In the engine compartment, locate the CAN
BUS connector on the drivers side of the engine. It
is a flat 3-pin connector located on top of the fuel
lift pump below the map sensor next to the ECM.
Remove the weather seal plug and insert OttoMind
cAN BUS connector into this connector. See
Figure
9 .

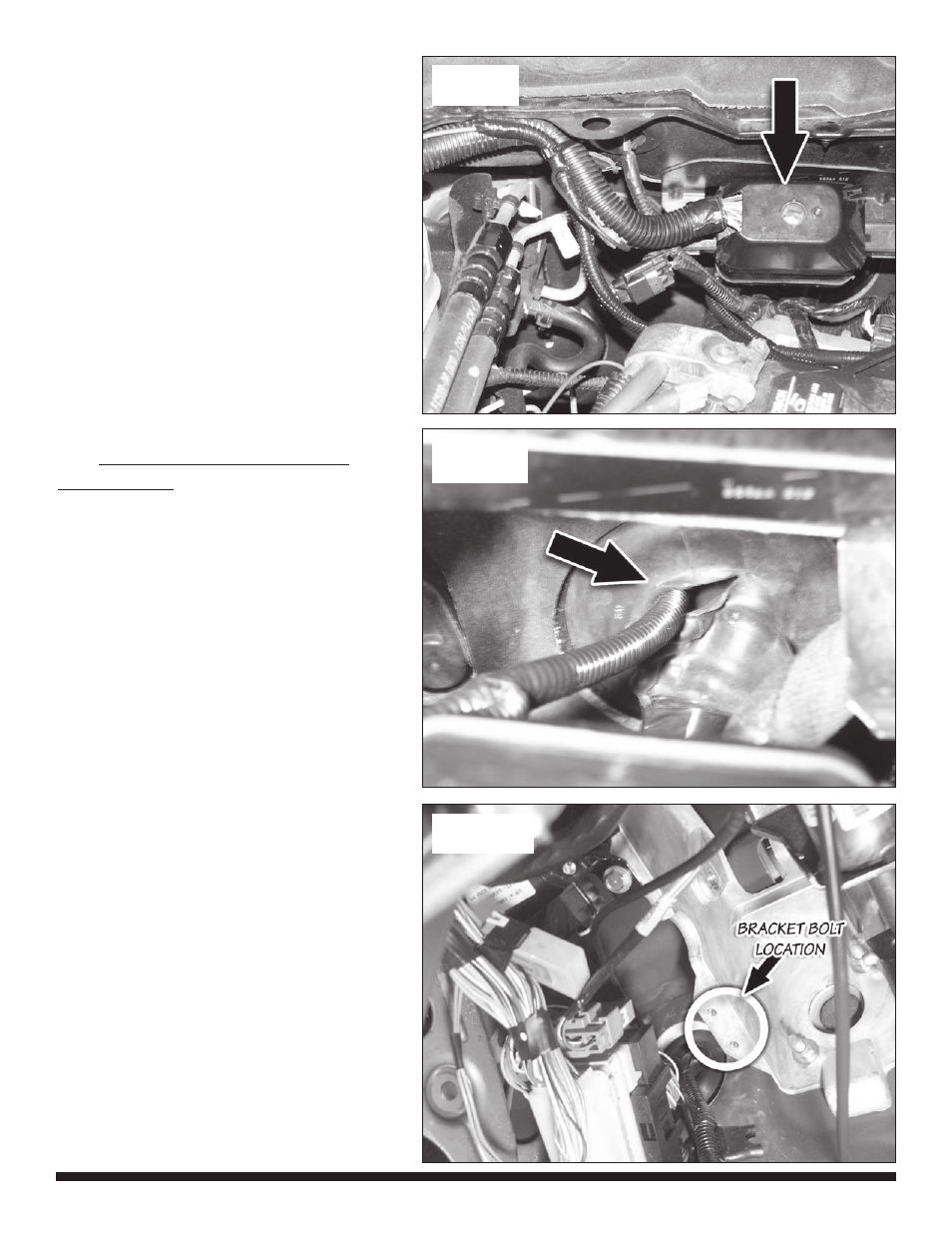

Figure 6
Figure 7
Figure 8
