the Stud Plate and Bracket with the
supplied nylock nuts and washers to
the inner fender. See Figure 7. do
not reuse the nylock nuts if the nylon
insert is worn.
7.
Lift up, align and fit the Banks
Super-Scoop into position. Fasten the
supplied screws and washers to the
side of Banks Super-Scoop. do not
reuse the split lock washers if they are
worn or flat.
Note: Hand tighten only at this time.
See Figure 7
8.
Now go to the inlet of the Super-
Scoop and align the inlet to fit the
contour of the spoiler. Using the
holes in the Banks Super-Scoop as a
template, center punch then drill the
holes through the spoiler. Use a 1 ⁄
8
pilot drill then a finish off with a 1 ⁄
4
drill. See Figure 8.
9.
After drilling the spoiler make
sure to remove any debris and align
the Super-Scoop to fit the spoilers
contour. Insert the supplied plastic
retainers and push in the retaining pin
to expand the retainer and fasten the
Super-Scoop.
10.
Now go back to the fender
well and tighten all the fasteners
making sure that the Super-Scoop is
positioned as far into the bottom of
the Ram-Air housing down spout as
possible.
Warning: If the Super Scoop is not
positioned properly it will interfere
with the wheel or wheel well
liner. Make sure there is adequate
clearance between the Super-
Scoop and wheel at all extreme
positions of the wheel. (Full
steering and suspension travel).
96492 v.5.0
9

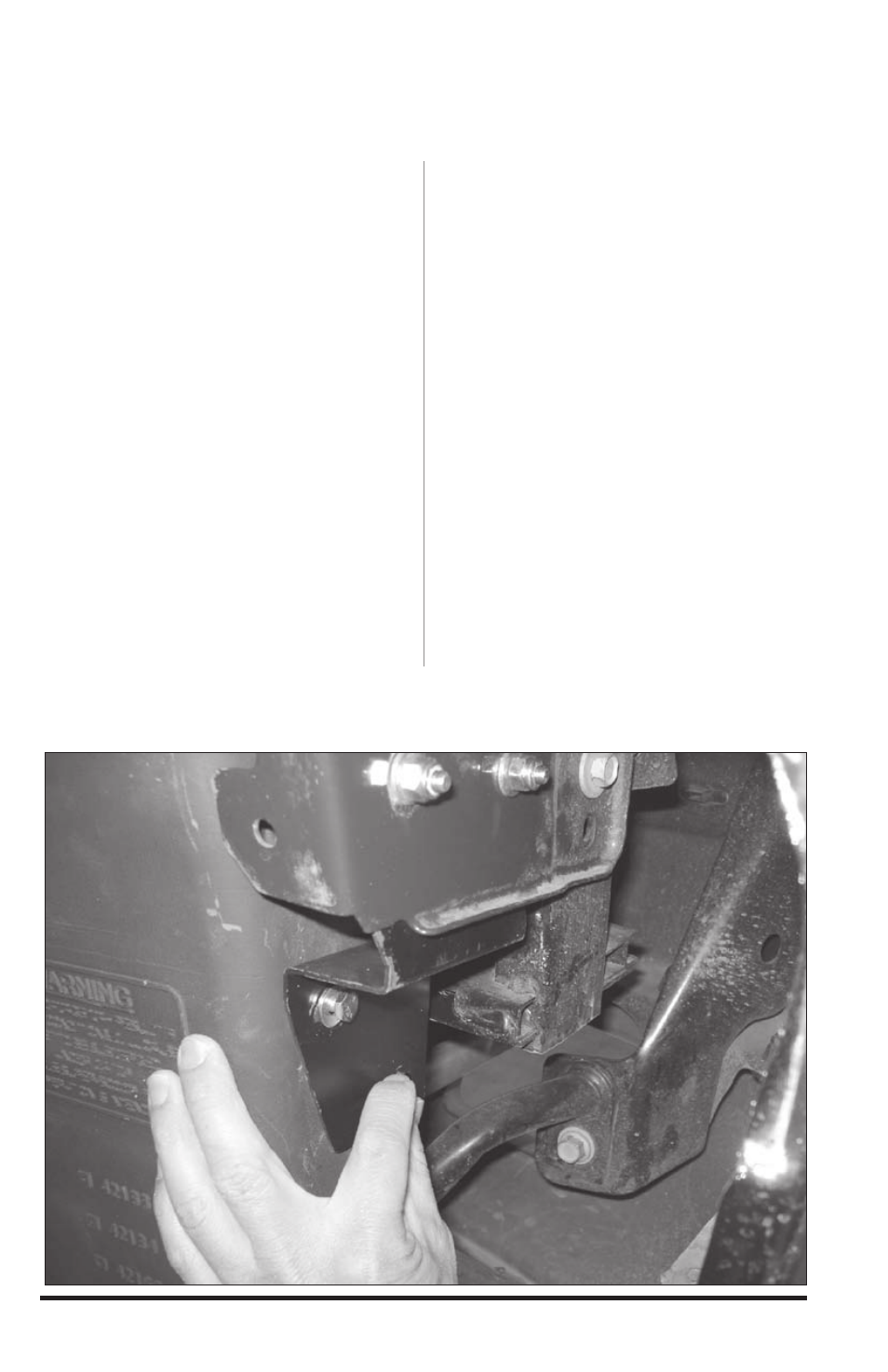

Figure 7
