NOTE: Before installing the Banks
Super-Scoop make sure to have a
completely installed Banks Ram-Air
Intake System in your vehicle.
1.
Remove all plastic retainer pins
attached to the fender lining then
remove the wheel liner and set aside.
See Figure 2
Note: Detach the wire harness clip
from the fender well liner and lay the
wire harness out of the way.
2.
The wire harness that connects to
the horn on the passenger front side
of the truck needs to be relocated to
facilitate the addition of the Super-
Scoop. Unclip the harness retainer
located below the horn and remove
the retainer.
3.
Unclip the harness retainer above
the horn and move the wire harness
(take up the slack) until positioned as
shown in Figure 3. Make sure the
wire harness is repositioned above the
lower frame.
4.
Remove the stock horn bracket and
replace with the supplied horn bracket
(reuse stock fasteners). Make sure to
orient the horn bracket towards the
front of the vehicle. See Figure 4.
5.
Install the Banks Super-Scoop from
beneath the front bumper and place
the Super-Scoop’s opening over the
bottom of the Banks Ram-Air housing
down spout.
Note: Some vehicles, depending on
year and equipment options, may
require the A/C line to be bent slightly
to provide additional clearance to fit
the Banks Super-Scoop. See Figure 5.
6.
Locate the supplied Super-Scoop
Stud Plate and Super-Scoop Bracket
in your kit. Install the Stud Plate and
Bracket to the side of the inner fender
as shown in Figure 6. Lightly fasten
Section 2
SuPeR-SCooP INSTALLATIoN

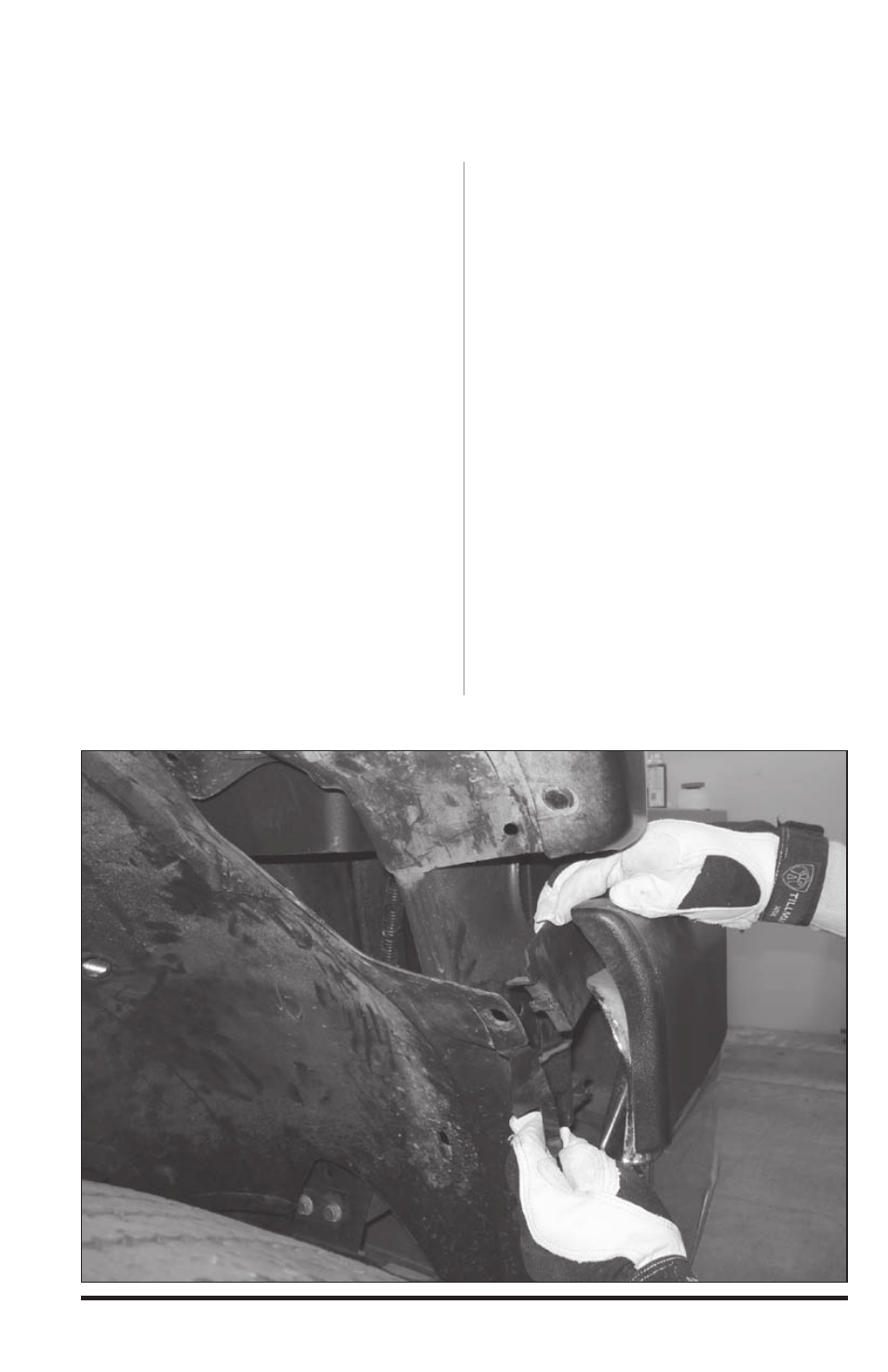

Figure 2
6
96492 v.5.0
