12
96436 v.7.0
18.
slip the 5” Monster tailpipe tip on.
Keep the wrapping on for now. For a
Fleet-side truck the 5” tip should be
hung 1in past the end of the tailpipe.
For a dually, the tip should be 3 1 ⁄
2
”
past the end of the tail pipe. snug up
the clamp.
19.
position all the exhaust
components such that all the hanger
pins are parallel with the frame pins
and all exhaust tubing is located
properly. lightly tighten the clamps
to maintain position. the tailpipe tip
should be positioned 1-1 1 ⁄
2
“ below
the bottom edge of the fender. all
hangers should be hanging slightly
forward to allow for heat expansion of
the exhaust tubing (see Figure 8).
20.
with everything positioned
properly, begin to tighten the clamps
starting with the ones closest to the
turbo and working your way back.
torque V-band clamp to 80 in-lbs.
torque all remaining clamps to 35 ft-lbs.
21.
the 2-pin warm-up valve module
needs to be installed onto the warm-
up valve connector on the vehicle wire
harness. on the pedal stool under the
turbocharger, disconnect the 2-pin
connector. attach the 2-pin connector
to the banks warm-up valve module
and zip-tie the module and wire harness
away from any moving parts. see
Figure 9
22.
your system includes two banks
power logos that have been designed to
compliment the Ford badging on your
truck. we have provided measurements,
which will allow you to place these
logos in a position that gives a clean
factory look. see Figure 10.
23.
remove protective wrapping
from tailpipe tip. the Monster exhaust
installation is now complete.
-enD, seCtion 1-

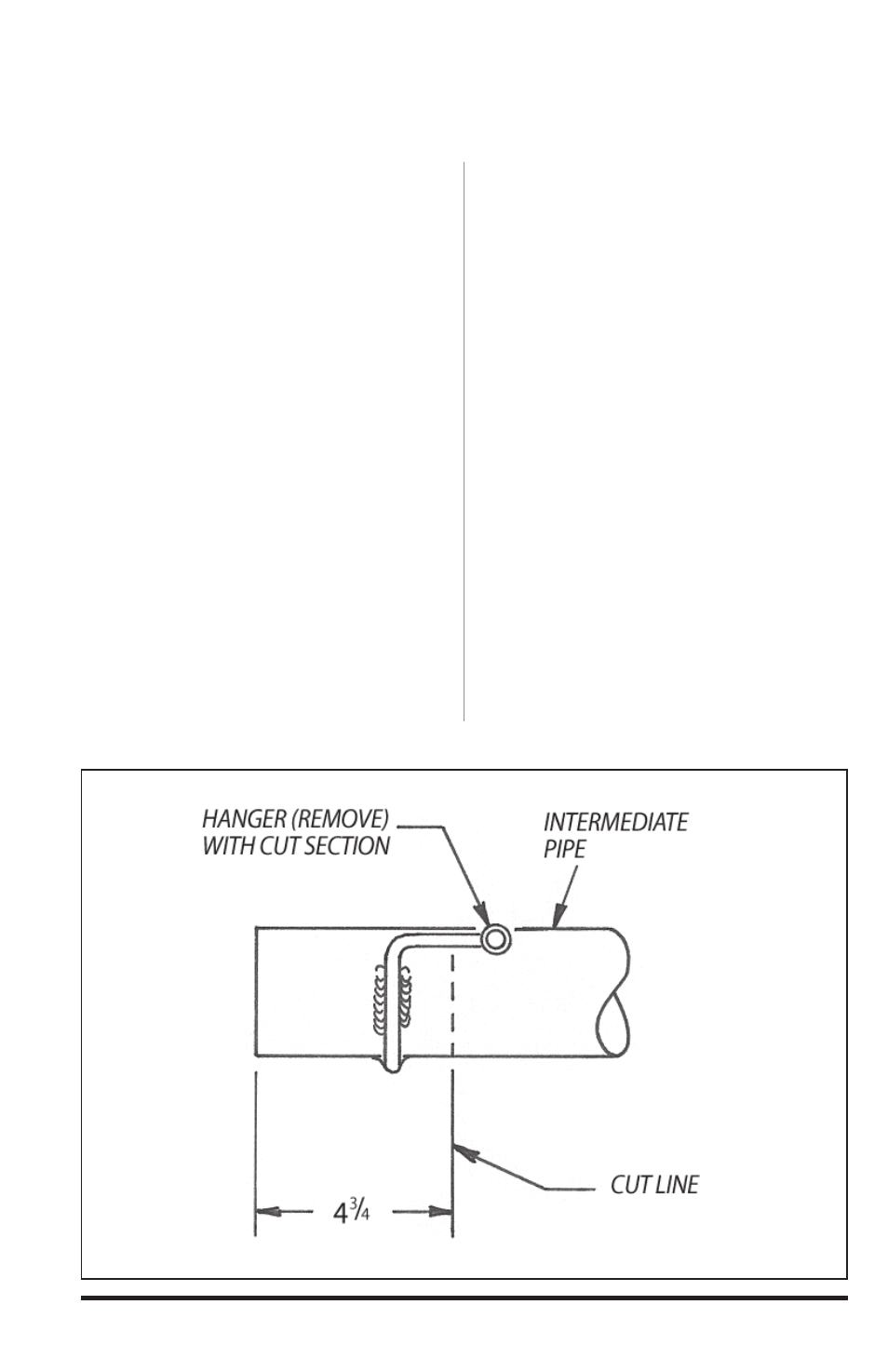

Figure 7
