Banks Power Chevy_GMC Trucks: Duramax LB7 (Diesel ’01 - 04 6.6L) Tuner- Six-Gun Diesel Tuner with optional Speed-Loader Module '01-04 For use with Six-Gun Switch User Manual
Page 9

the back of the connector so the pin
numbers are viewable.
7.
Install the male spade connector on
the end of the GRAY wire of the
supplied Torque Converter Clutch (TCC)
harness to the red T-Tap installed on
the BROWN wire in
Step 6. Attach the
BLUE wire of the TCC harness to the
RED T-Tap on the GREEN wire with
white tracer. Route the TCC harness
through the grommet on the firewall
to the Six-Gun. Re-install the TCM
housing onto the radiator fan shroud.
Make sure the tabs on the bottom of
the housing are inserted into the slots
on the tab of the shroud.
8.
From inside the cab, with the lower
dash panel removed, route the main
10-pin and 8-pin connectors and the
TCC harness (if applicable) on the left
side of the support bracket. Connect
the coupled 10-pin and 8-pin
connectors into the corresponding Six-
Gun Diesel Tuner connections. Connect
the single 8-pin connector into the
bottom of the Six-Gun. For automatic
transmission only, connect the 4-pin
male connector of the TCC harness
into the 4-pin female connector on the
Six-Gun Diesel Tuner.
9.
Insert the Six-Gun Diesel Tuner on
the outside of the left steering column
support bracket between the left dash
panel and the steering column. Orient
the Six-Gun such that the pair of 8-

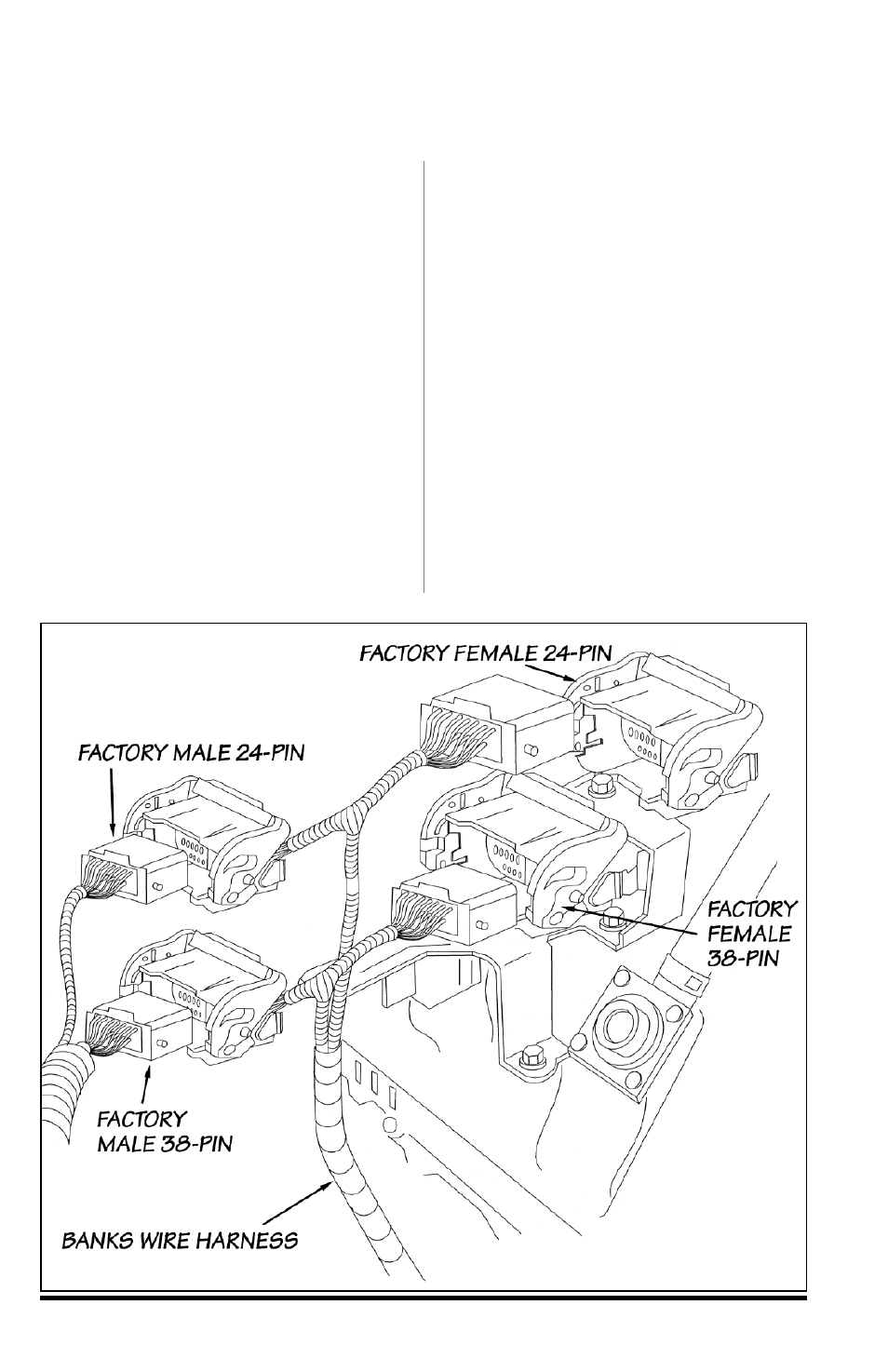

Figure 2
96446 v.4.0
9
