CAUTIoN: Do not use force
when working on plastic parts.
Permanent damage to the part
might result.
1.
The Banks Brake switch will be
installed on the driver’s side of the
instrument panel (IP) next to the
steering column (see Figure 10). If a
Six-Gun Power Level Selector switch
has been install use the secondary
drill location on supplied template and
install the Banks Brake switch next to
the Six-Gun switch. Carefully remove
the IP from the dashboard by slowly
pulling outwards from the dashboard
around the edges of the IP, allowing
the mounting pins to pull free from
their dashboard sockets. Automatic
transmission equipped vehicles will
need to set the parking brake and
move the shift lever down to the
lowest gear to allow clearance for
instrument panel removal.
2.
Cut out the supplied template
(see Figure 16 on page 19) and align
the template onto the rear of the IP,
squarely seating it on the top of the IP
mounting pin (see Figure 11).
3.
Using a
3
⁄
8
” Uni-drill bit, center the
bit onto the
3
⁄
8
” drill location on the
template and slowly drill through the
IP. Using a
1
⁄
8
” drill bit, center and
drill through the
1
⁄
8
” location on the
template. Remove and discard the
template and any plastic shavings.
4.
On the front side of the IP, align the
Banks Brake label onto the previously
drilled hole (see Figure 12).
5.
Remove the nut and internal tooth
washer from the Banks Brake Switch.
Rotate the shaft counter clockwise
until the shaft stops. Verify the
locating washer tab is inserted into the
#5 position on the switch (see Figure
13).
NOTE: If the washer is in any position
other then the #5, your SpeedBrake
will not function properly.
Section 2
INSTALLATIoN oF BANkS BRAkE SWITCH

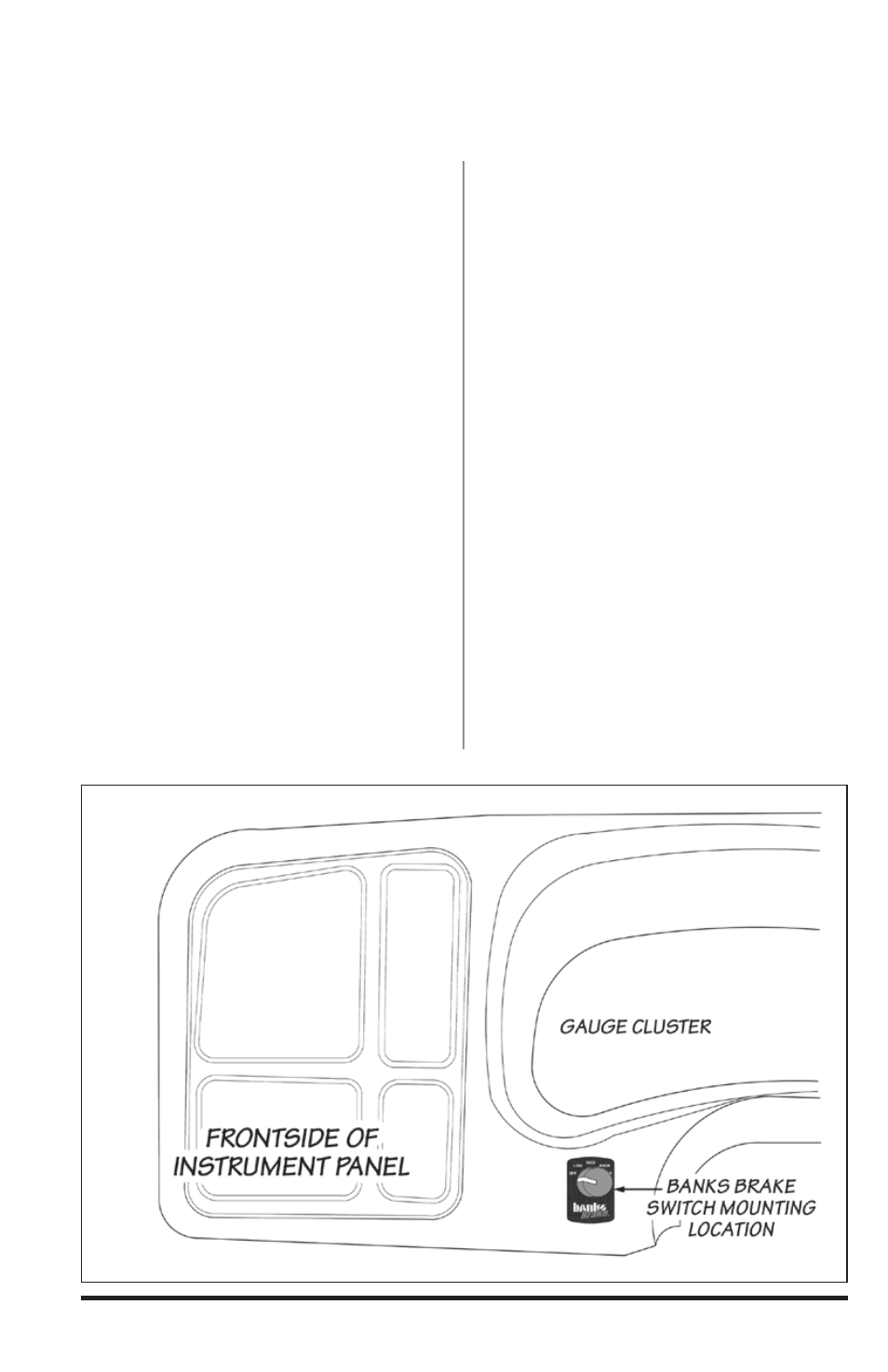

Figure 10
