-3-
Wood stud
H
J
Bubble level

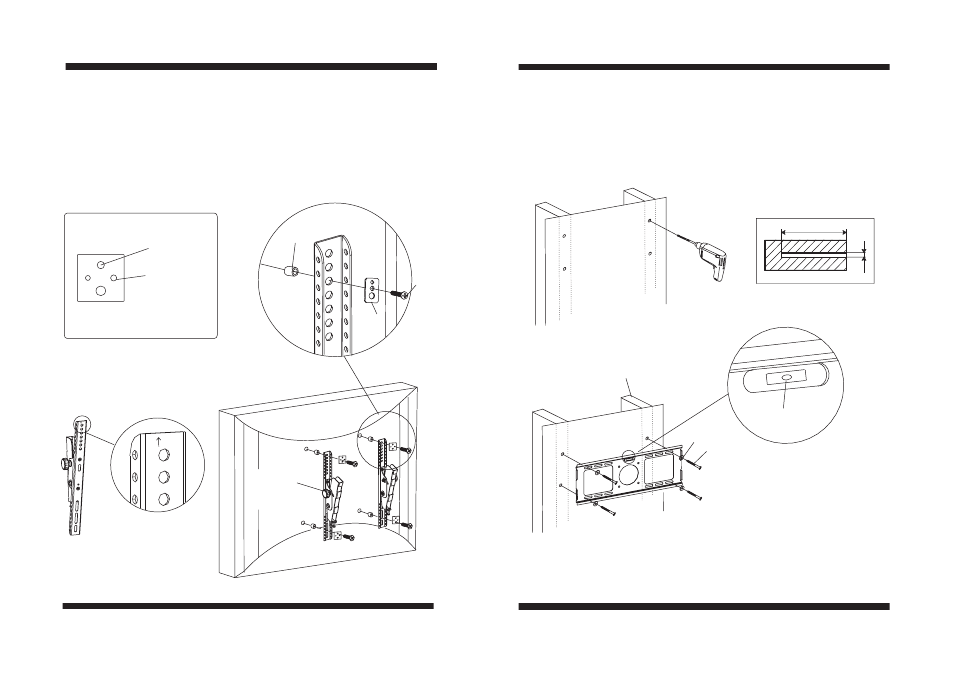

Part 1a-Wood Stud Mounting
.
Use wall plate(1) as a template, make sure it is level, and mark four mounting
holes along the center lines of the wood studs. Drill four 3/16
) ) . .
”
”
(5mm)dia
holes 2 (50mm) deep. Level wall plate(1) and attach to wall with four long
bolts(H and four washers(J . Tighten screws firmly Do not overtighten
Part 1a-Wood Stud Mounting
2 50mm) ” (
Φ3/16 (5mm) ”
-6-
Part 2b-Attaching brackets to screen with recessed back
Center brackets vertically on back of screen. Select the medium(E) or large(F)
screws. Attach brackets to screen using four selected screws,four square
washers(G) and four spacers(K) at the top and bottom of each bracket.
Tighten screws firmly. Do not overtighten
.
Part 2b-Attaching brackets to screen with recessed back
UP
K
G
E/F
UP
Square washer(G)
Medium hole
for M5 screws
Large hole for
M6 screws
TILT ADJUSTER
KNOB MUST
FACE OUT
