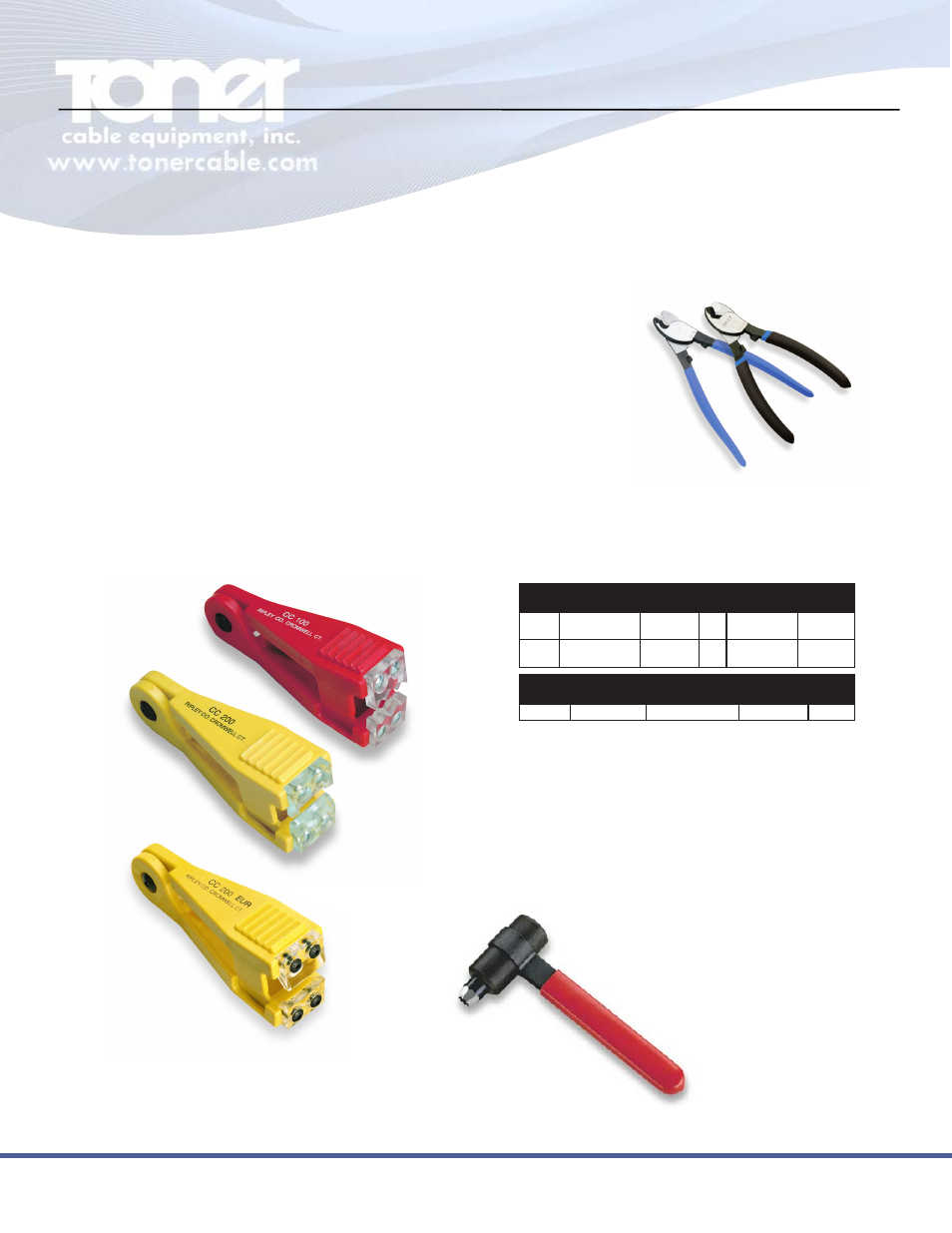

Cablematic Drop Cable Tools

CC, CCS

Cable Cutters / Strippers

• Designed to cut and

strip solid & stranded

copper and aluminum

conductor

• CCS-22 designed to cut

steel conductors

• Designed to minimize

flattening of the cable end and

center conductor

• CCS-22 ideal for cutting 59, 6, 7 and

11 series coax cables (copper cladded

steel center conductors) as well as N48,

5C and 9 Coax cables (copper center

conductors)

up to .400 in. (10.16 mm) O.D. cables

• Preformed rounded jaws automatically position the cable for optimum cutting

• Precise, high quality carbon steel construction

• Durable, dipped non-slip handles

Application

Model

MAX OD (in.)

AWG

Tool

Length Weight

Cutting

CC22 (p/n 39430) .350 (107 mm)

6-3/8 in. (16.2 cm) 6 oz (170 g)

CC38 (p/n 39431) .430 (131 mm) 2/0 8-1/4 in. (21.0 cm) 10.4 oz (296 g)

Stripping CC22 (Part# 39430) .230 (70 mm)

6-3/8 in. (16.2 cm) 6 oz (170 g)

CC38 (Part# 39431) .290 (88 mm)

8-1/4 in. (21.0 cm) 10.4 oz (296 g)

Application

Model

Maximum

Tool

Cable O.D.

Length

Weight

Cutting Steel* CCS-22 (p/n 39930) up to .400 in. (10.16 mm) 6-3/8 in. (16.2 cm) 6 oz (170 g)

CCS-22

CC38

*CCS = Copper cladded steel

CC SERIES

Center Conductor Cleaners / Scrapers

• For removing residual dielectric from the conductor of all sizes of trunk

and distribution cables (without scratching

or nicking)

• CC-100 has clear Plexiglas

multiple size V-shaped cleaning notches

(Part No.: 16710)

• CC-200 is supplied with clear Plexiglas

straight edged scraping blades

(Part No.: 16730)

• CC-200 EUR is supplied with inverted clear Plexiglas

straight edged

scraping blades. Removes dielectric close to aluminum sheath (Part

No.: 42000)

• “High visibility” red (CC-100) and yellow (CC-200)

tool bodies

• Replacement cleaning blades fit either tool

Part No.: 16722, multiple “V” notched blade kit

Part No.: 16725, clear Plexiglas

scraping blade kit

Part No.: 42003, clear Plexiglas

EUR scraping blade kit

• Made in the U.S.A.

• Length: 4.25 in. (108 mm)

• Weight: 2.26 oz (64 g)

CC-100

CC-200 EUR

CT 375

Carpet Cutter & Drill Guide

• For making fast and precise holes in carpeting

• CT-375 is for wood underfloors (scalloped edge cutter)

Part No.: 33480

• CT-375C is for concrete and other underflooring

(smooth cutter)

Part No.: 33485

• Replacement Blades:

Scalloped Part No.: 33483

Smooth Part No.: 33482

• Made in the U.S.A.

• Length: 3.0 x 6.375 in

(76 x 162 mm)

• Weight: 15 oz (426 g)
