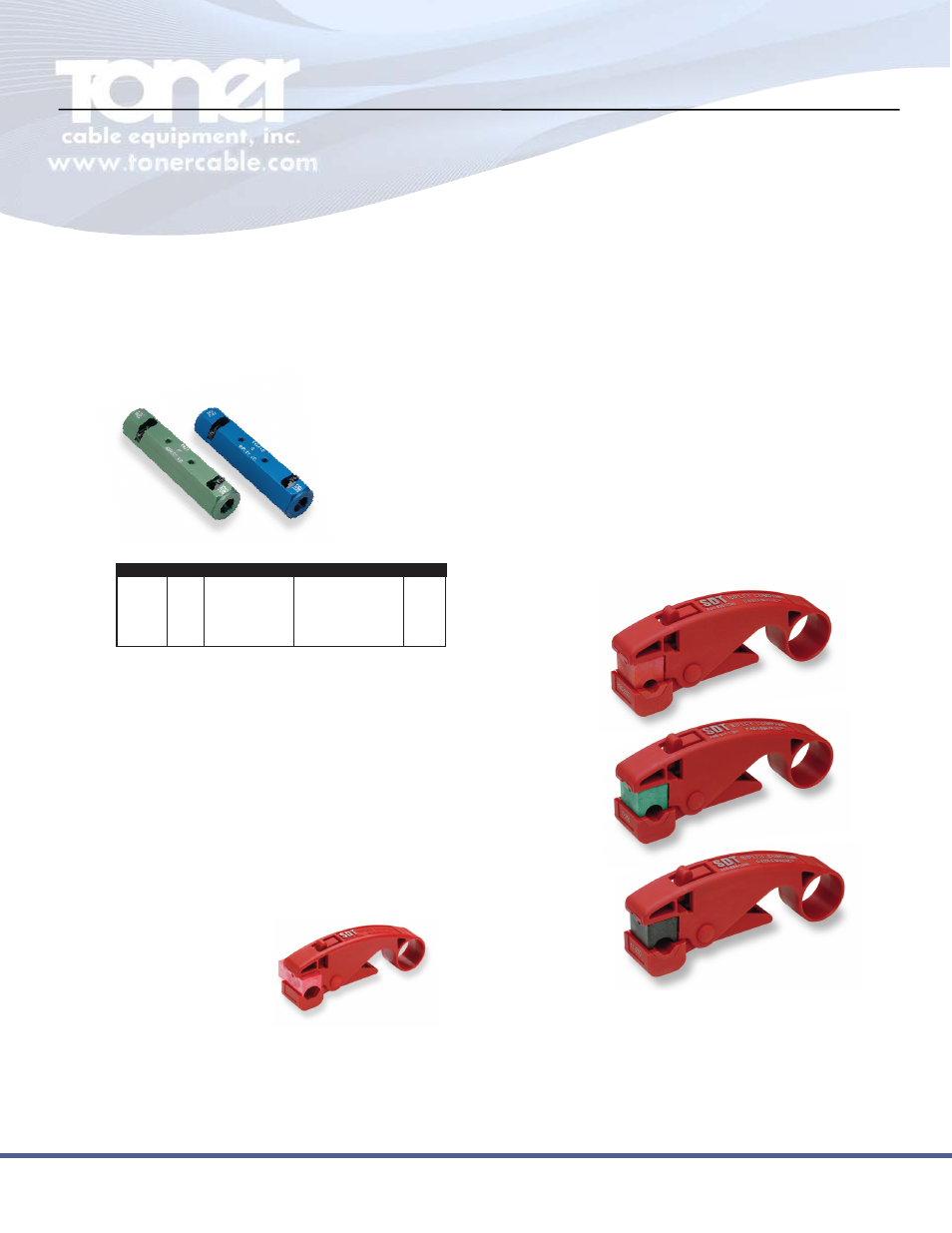

Cablematic Drop Cable Tools
SDT-TXFF-250
Flexible Feeder Single Drop Trimmer
• Single Drop Trimmer for Times Fiber Communications (TFC) “Flexible
Feeder” (TX10-15 Low Loss Drop Feeder)
Cable and F50 CommScope ® cable
• ONE STEP cable preparation for smooth, precise cuts
removing both the jacket and the dielectric
• Prepares cable for all major connector manufacturers to
1/2 in. or 1 in. (12.7 or 25.4 mm) center conductor length
and 1/4” (6.35 mm) braid preparation
• E rgonomic, lightweight design
• Made in the U.S.A.
• U.S. Patent Nos.: 6,128,976
and 6,253,641
• Replacement blade cartridge:
RC-TXFF 250
(Part No.: 36880)
• Length: 4.6 in. (119 mm)
• Weight: 1.9 oz (54 g)
• Part No.: 37460
TXFF, TXFF-Q
Flexible Feeder Stripping Tools
• For Times Fiber Communications (TFC) “Flexible Feeder”
(TX10-15 Low Loss Drop Feeder) Cable and F50
CommScope ® cable
• Color coded and labeled for ease of proper tool identification Green - for
Standard cable construction
Blue - for Quad Shield cable construction
• The first cut (1st cut) will prepare cable to proper center conductor length.
The second cut (2nd cut) will remove the proper length of outer jacket
exposing the braid
• Made in the U.S.A.
• Replacement Blades — 1st cut: CB 26 (Part No.: 14403)
2nd cut: CB 60 (Part No.: 14907)
• Length: 5-3/8 in. (137 mm)
• Weight: 1 lb. 12 oz. (795 g)
Model Color Cable Connector Part No.
TXFF-C Green Standard + Tri shield Corning Cabelcon 36635
TXFF-QC Blue Quad Corning Cabelcon 36634
TXFF-A/G Green Standard + Tri shield Amphenol & Corning Gilbert 36637
TXFF-QA/G Blue Quad Amphenol & Corning Gilbert 36636
TXFF-P Green Standard + Tri shield PPC & PCT 36639
TXFF-QP Blue Quad PPC & PCT 36638
Note: Please call our Customer Service Department for connector manufacturers not listed above. U.S: 860-635-2200
U.K: +44-1384-400070
SDT
Single Drop Trimmer
• ONE STEP cable preparation for ALL 59, 6, N48 drop cable
constructions as per SCTE and Bellcore specifications
• Also available with a built-in strip stop — see model SDT596-250SS
(SDT596-250 is standard tool)
• ERGONOMIC BODY DESIGN fits into your hand and tool pouch for
ease of use and comfort
• Tool body constructed of LIGHTWEIGHT, impact resistant
“Hi-Visibility Red” polymer
• No adjustments or extra tools required
• NOTE: Tool is not intended for Plenum Series
Cable construction
• Superior quality tool steel blade cassettes will perform 3500+
preparations under normal use
• Tool supplied with model specified cassette assembled
in tool and one spare cassette
• Unique “Cassette Ejector” provides quick blade
cassette removal
• Replaceable blade cassettes are color-coded and marked with cable
series type and braid preparation dimensions
for easy identification
• Made in the U.S.A.
• U.S. Patent Nos.: 6,128,976 and 6,253,641
• Length: 4.6 in. (119 mm)
• Weight: 1.6 oz (45 g)
