Toner Cable LED-430X4-3GSDI Four 4" LED Monitors in Rack Mount User Manual
Four 4” led monitors in rack mount
Specifications Subject To Change Without Notice
Rev 06-12
©Toner Cable Equipment, Inc.
LED-430X4-3GSDI
Four 4” LED Monitors in Rack Mount
969 Horsham Road
l
Horsham, Pennsylvania 19044 USA
l
Phone: 215-675-2053 Fax: 215-675-7543
l

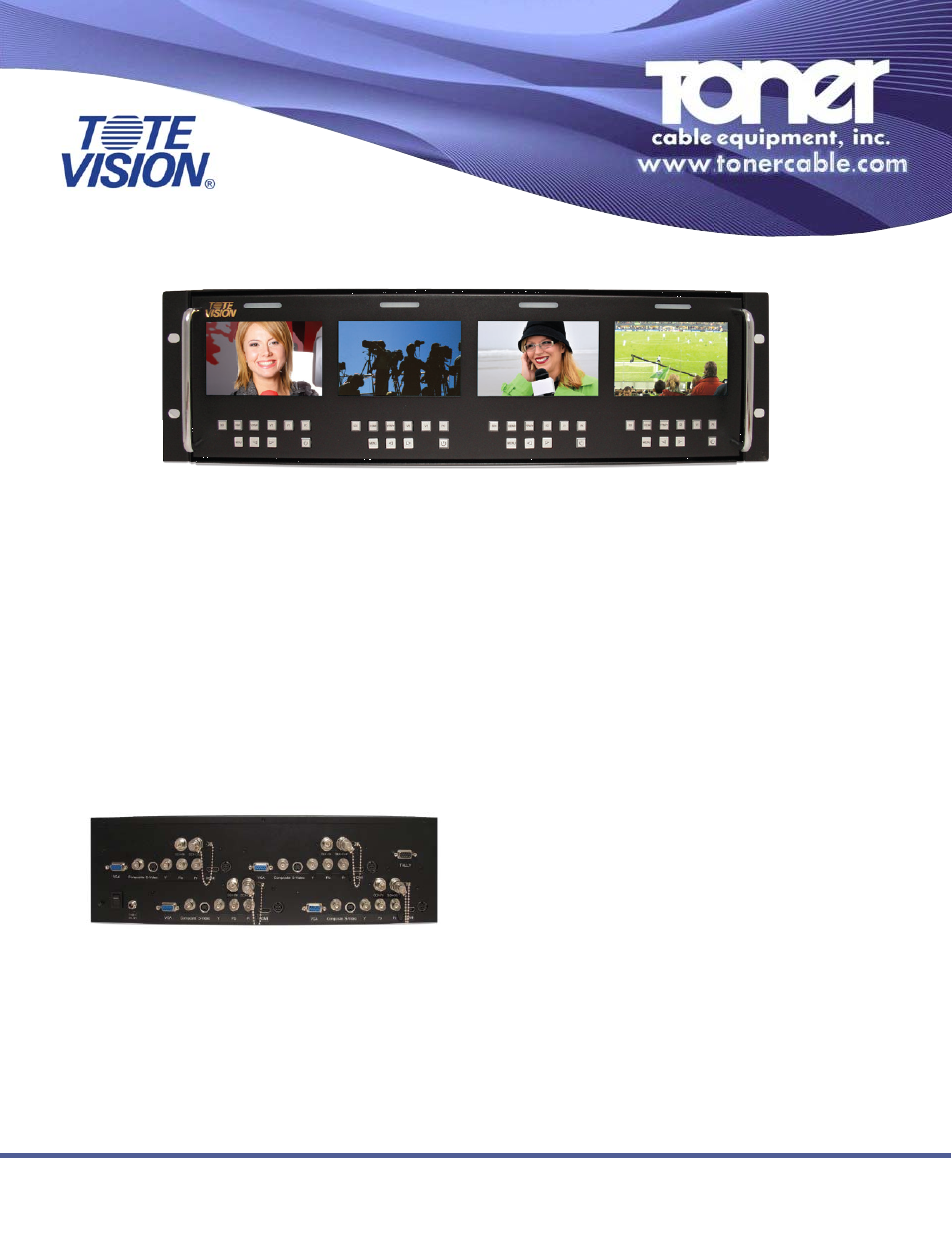

Functional and beautiful, this new generation model includes four
LED-backlit, LCD monitors in a rack mount configuration. Each 4”
monitor includes a native 3G-SDI input signal that is SMPTE 424M
compliant, handling bit-rates of 2.97Gbit/sec which supports 1080p
video up to 60 frames per second. This model is an ideal solution
for broadcast studio environments that distribute and monitor VOD
1080p streams.
Benefits..............................................................................................
3G/HD/SD–SDI Input and Output
Quick access source buttons
Wide viewing angle
Up/Down tilting
Tally function
Specifications....................................................................................
Model
LED-430X4-3GSDI
Mount
Rack: 3 RU
HD Compatible
yes
Case
Durable metal
Native Aspect Ratio 16:9
Visible Screen Size
93 x 55.8mm /3.7"” x 2.2”
(WH)
Resolution
800 x 480 dots
Brightness Rating
200 cd/m² (Nit)
Contrast Ratio
400:1
Back Light
LED (15 K )
Dot Pitch
0.116(H) x 0.116(V)
Colors
16.7M
Response Time
20msec
Viewing Angle
65/65/45/65
(L/R/T/B)
Dimensions
19” x 5.25” x 6.9” (3 RU)
Operating
32 ~ 185°F or 0 ~ 85°C, 85% RH max.
Temp/Humidity
Power Requirements 12VDC, 5A
Power Consumption 45W (max)
Component
[BNC x 3] x 4
Composite
BNC Video IN x 4
S-Video
mini-DIN x 4
PC
D-sub (15 pin) x 4
HDMI
yes
Tally Input
D-sub (9 pin)
Audio
No
Power
screw in DC jack
Weight
Net 5.5 kg / 12.1 lbs, Gross 6.7 kg / 14.75 lbs
