ANTDVBT2/ANTDVBT3
VELLEMAN
- 4 -
4. Antenna Installation and Connection
•

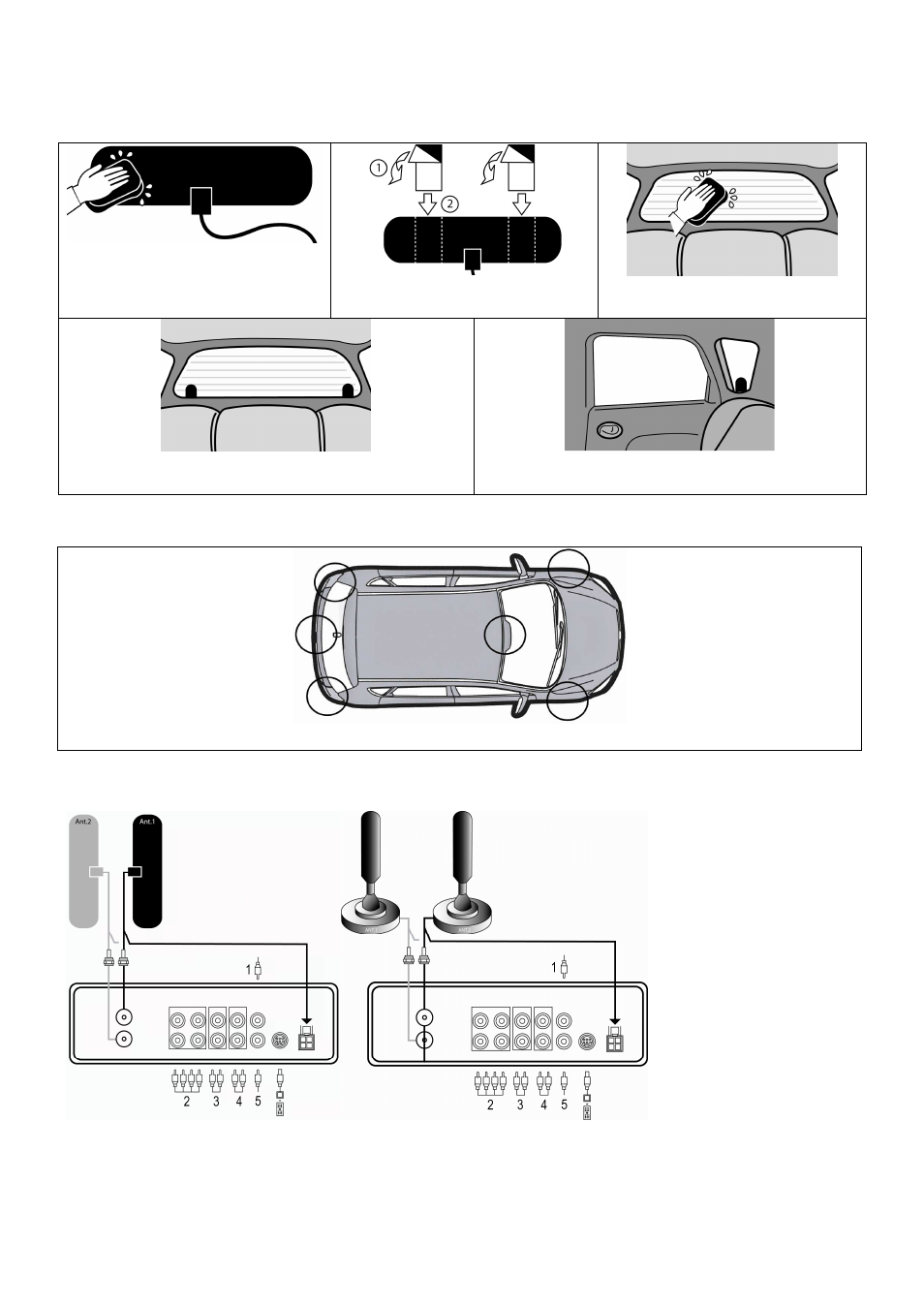

Interior On-Glass Antenna (ANTDVBT2)
Clean the two areas and make sure
they are dust and grease-free.
Apply the two strips to the antenna.
Clean the area where the on-glass
antenna is to be fixed.
Fix the antennas in such way as to assure free sight
through the rear window (grey area).
The antenna can also be fixed on the side window
pane of the vehicle.
•
Exterior Magnetic Antenna (ANTDVBT3)
The magnetic antenna can be fixed onto different locations according to your car.
5. Basic Connection
For more info concerning this product, please visit our website www.velleman.eu.
The information in this manual is subject to change without prior notice.
1. video in
2. video out
3. audio out
4. audio in
5. IR in
