CCTVSETW1
V. 02 – 07/01/2014 9 ©Velleman nv

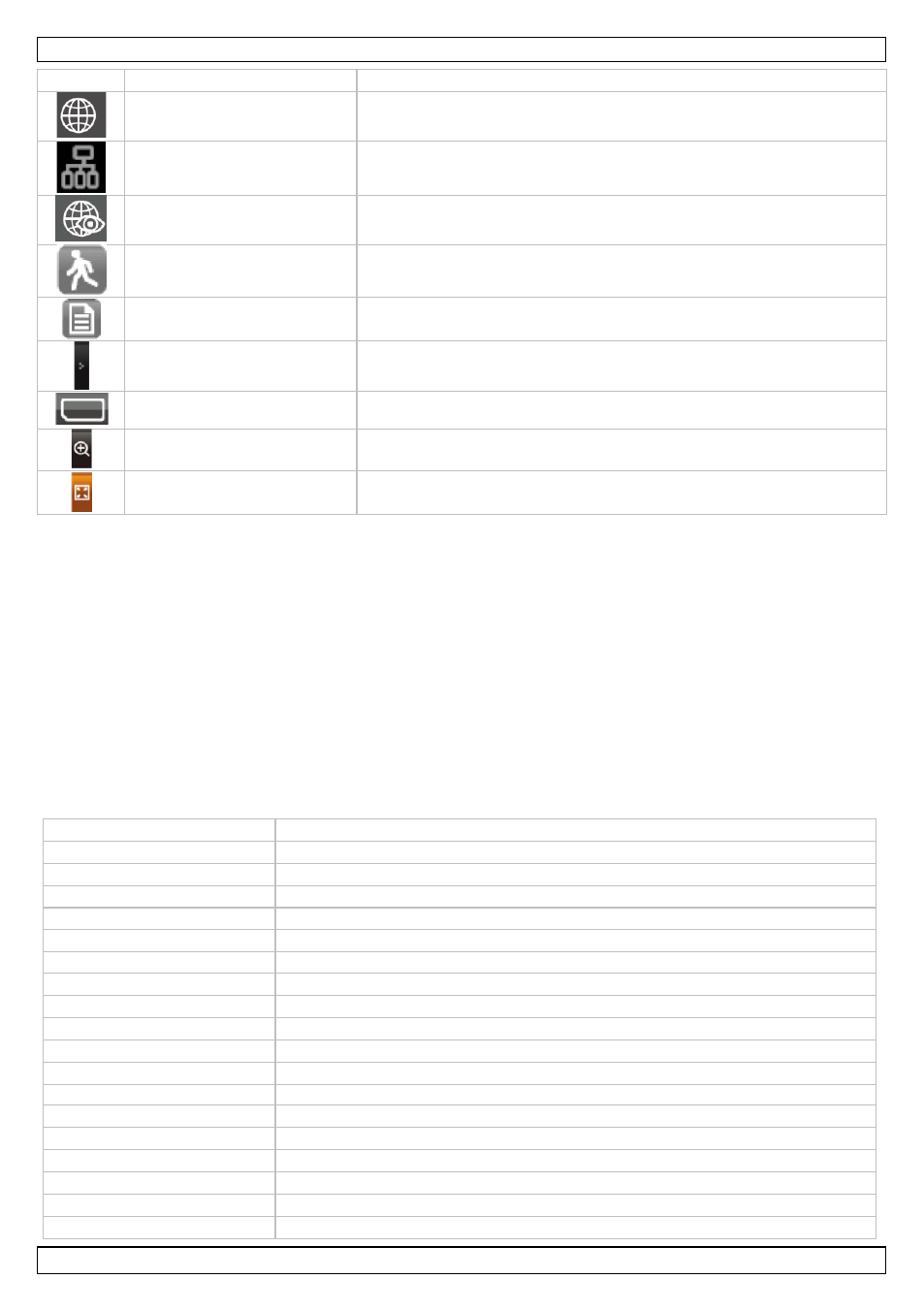

Icon Name Function
Connected to the internet Appears when device is connected to the internet
Connected to the intranet Appears when device is connected to the intranet
Remote Viewing Appears when remote viewing is in progress
Motion detection Flashes when device records after detecting motion detection
Scheduled recording Appears when scheduled recording is in progress
Pop up menu tab Tap to open or close pop up menus
No SD card Appears when SD card is missing or damaged.
Zoom in Tap to zoom in on a subject
Zoom out Tap to zoom out on a subject
See the full manual on www.velleman.eu for details (search for product code CCTVSETW1).
8. Advanced settings
The Settings menu contains settings for:
• Camera setup (pairing, camera on, brightness)
• Recorder setup (motion detection, scheduled recording)
• Network setup (internet setup, security code, network information)
• Alarm setup (period, melody)
• System setup (power saving, screen auto lock, time, format storage, system upgrade, language)
See the full manual on www.velleman.eu for details (search for product code CCTVSETW1).
9. Technical Specifications
video format PAL
video compression H.264
video transmission 2.4 GHz encrypted digital transmission
camera pick-up element: 1/4" CMOS sensor
lens: 3.6 mm
lens angle: 64°
night vision: 20 IR LEDs (8 m range)
IP rating: IP66
maximum recording rate single camera: 640 x 480 pixels (VGA) (25 FPS)
multiple cameras: 320 x 240 pixels (QVGA) (25 FPS)
monitor battery capacity: 1800 mAh Li-ion (3.7 V)
operating time: maximum 1.5 h
monitor size 7" touch screen
recording on SDHC card (not incl.) (max. 32 GB)
recording mode manual / timer / motion
audio built-in microphone
network connection via docking station
remote surveillance: plug and play via smart phone applications
digital zoom 2x
