CAMSET21
00 (14/05/2009) 5 Velleman ®

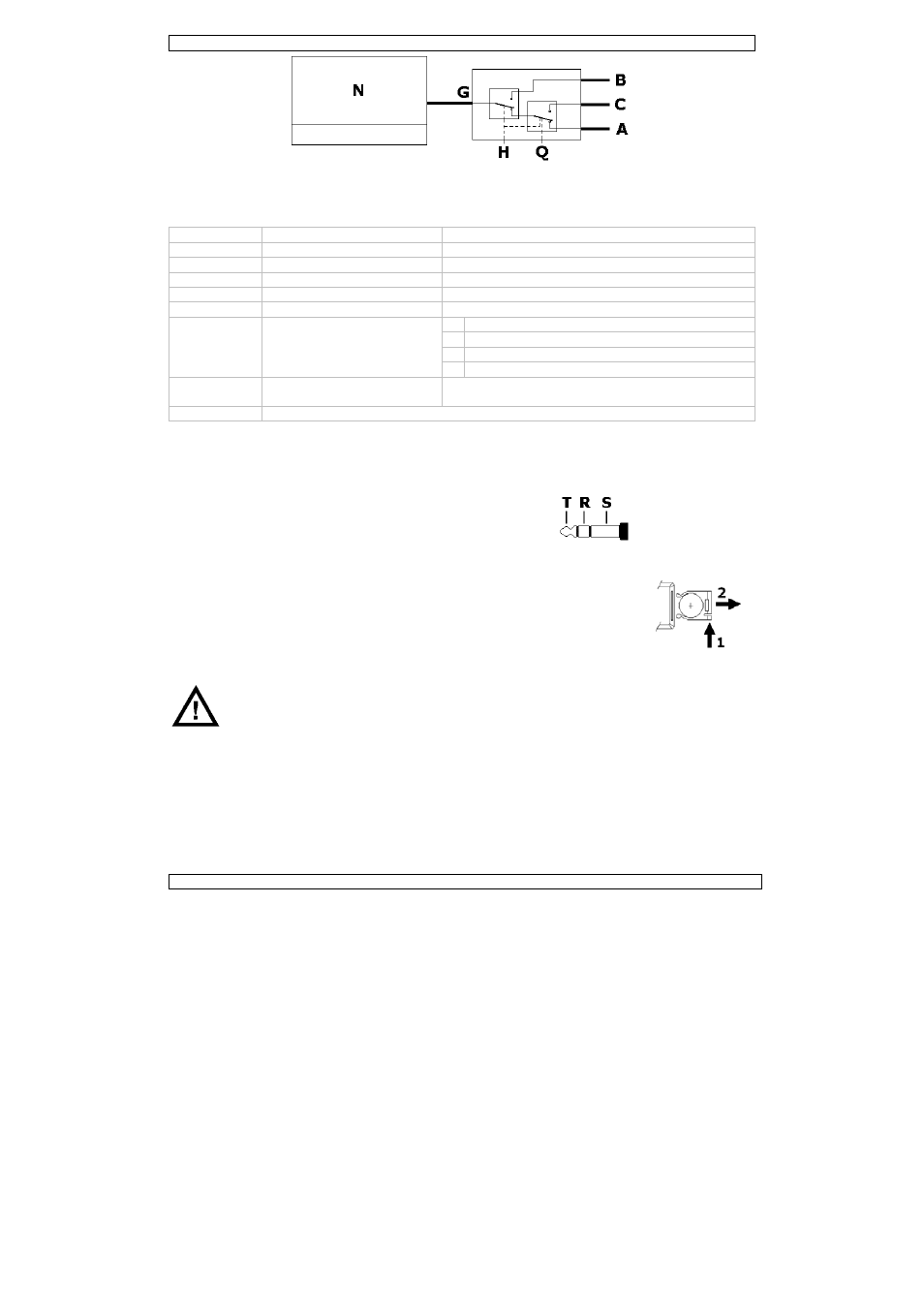

• Press the menu button [S] to enter the screen setup. Use the left arrow (W) [R] and right
arrow (X) button [T] to change the current setting and press the menu button [S] again to
move to the next setting. The setup is saved and the menu closes automatically after ±10
seconds of inactivity. Refer to the following table for all available settings:
setting explanation range
BRIGHT brightness setting 0 ~ 40
CONTRAST contrast setting 0 ~ 40
COLOR colour setting 0 ~ 40
VOLUME volume control not applicable
MODE♦ screen format setting 16:9 or 4:3
TCON screen orientation setting
LD Left Down (normal, bottom down)
RD Right Down (mirrored, bottom down)
RU Right Up (mirrored, upside down)
LU Left Up (normal, upside down)
LANGUAGE set menu language
available languages: Chinese, Russian, Italian,
French, German, English
RESET reset all settings to factory default
♦ on the remote control, this function is also directly accessible through the mode select button
• The image of input channel 1[A] and 2 [B] can be mirrored, when the connected camera
supports mirroring. This is the case for the included camera. To mirror the camera image of
input channel 1 [A], set switch [D] on the control unit to MIR; to mirror the camera image of
input channel 2 [B], set switch [E] to MIR.
• It is also possible to connect an external video source to the
video socket [P]. However, this input does not support
audio.
8. Batteries
• The remote control uses 1 battery type 3V lithium CR2025 battery
(included)
• To (re)place the battery, press on the side of the battery cover (1) and pull
(2) to slide it open.
• Insert the battery with the right polarity and close the battery
compartment by pushing it back into the housing of the remote control
until it snaps into place.
Dispose of batteries in accordance with local regulations.
Keep the battery away from children.
Do not recharge batteries and do not throw in fire as they may explode.
T Video
R GND
S not used
