Operations :
FRONT PANEL -
1. Power
:
Push the rocker switch to "AUTO", the Green LED
will illuminate.
Scanner automatic left and right adjust.
Push the rocker switch to "MAN", the Red LED
will illuminate.
Scanner adjust by manual.
Non light during "OFF"
2. UP AND DOWN :
Paddle
switch,
UP/DOWN
3. LEFT AND RIGHT :
Paddle
switch,
LEFT/RIGHT

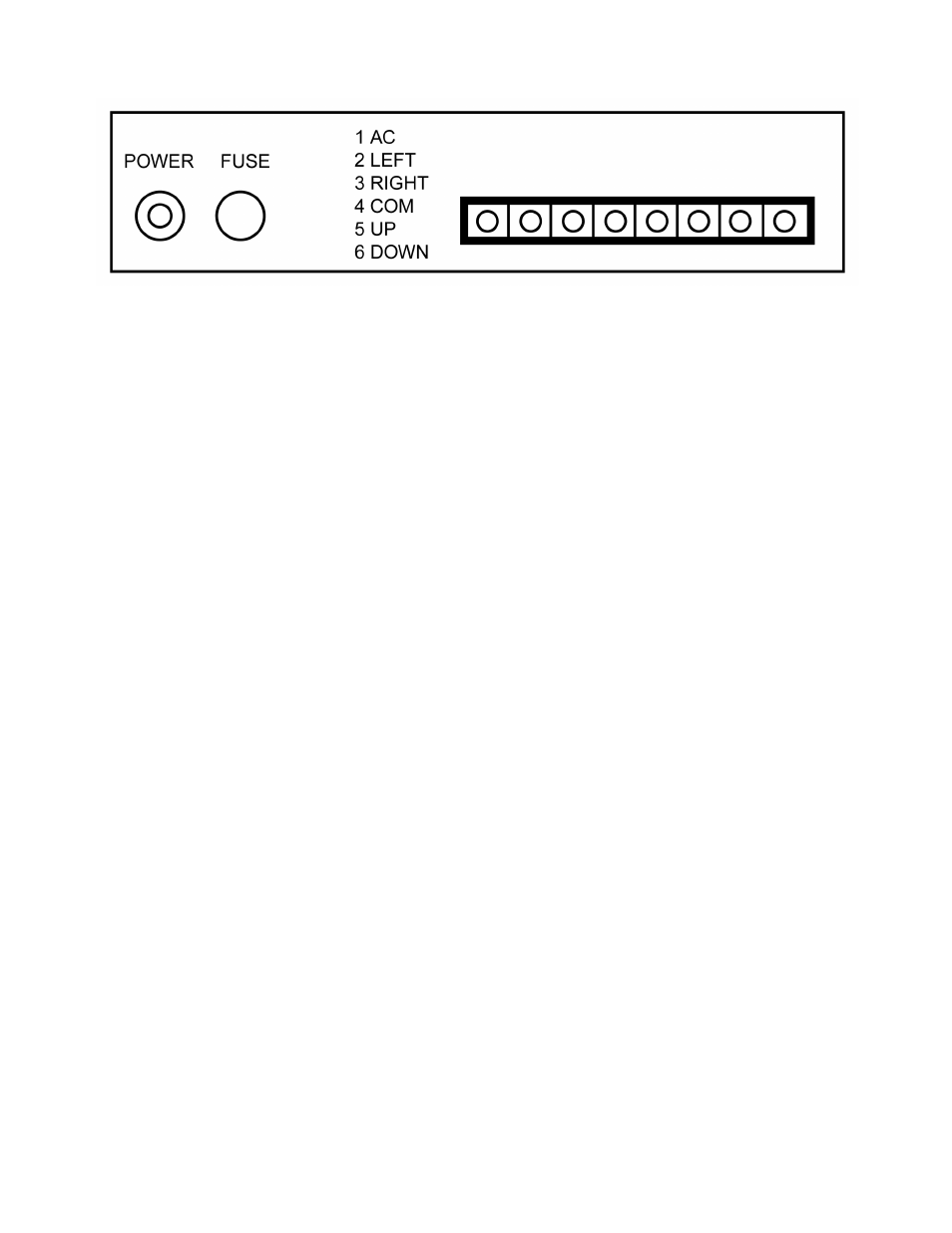

BACK PANEL -
1. AC POWER :
Terminal block no. 1 point
2. LEFT
:
Terminal block no. 2 point
3. RIGHT
:
Terminal block no. 3 point
4. COM
:
Terminal block no. 4 point
5. UP
:
Terminal block no. 5 point
6. DOWN
:
Terminal block no. 6 point
