VSCP1 – CAMERA MOTOR CONTROLLER
1. Introduction & Features
Thank you for buying the VSCP1! Please read the manual thoroughly before bringing this device into service.
If the device was damaged in transit, don't install or use it and contact your dealer.
2. Specifications:
Tilt control
Paddle switch, UP/DOWN
Pan control
Paddle switch, LEFT/RIGHT
Power control
Slide Switch MAN/OFF/AUTO
Input Voltage
220-230Vac
Output Voltage to Scanner
24Vac
Operating Temperature
-10°C to +60°C
Connector
Screw Terminal-Detachable
Construction
Steel, Off-White
Dimensions
212 x 218 x 45mm
Weight
1.2Kg

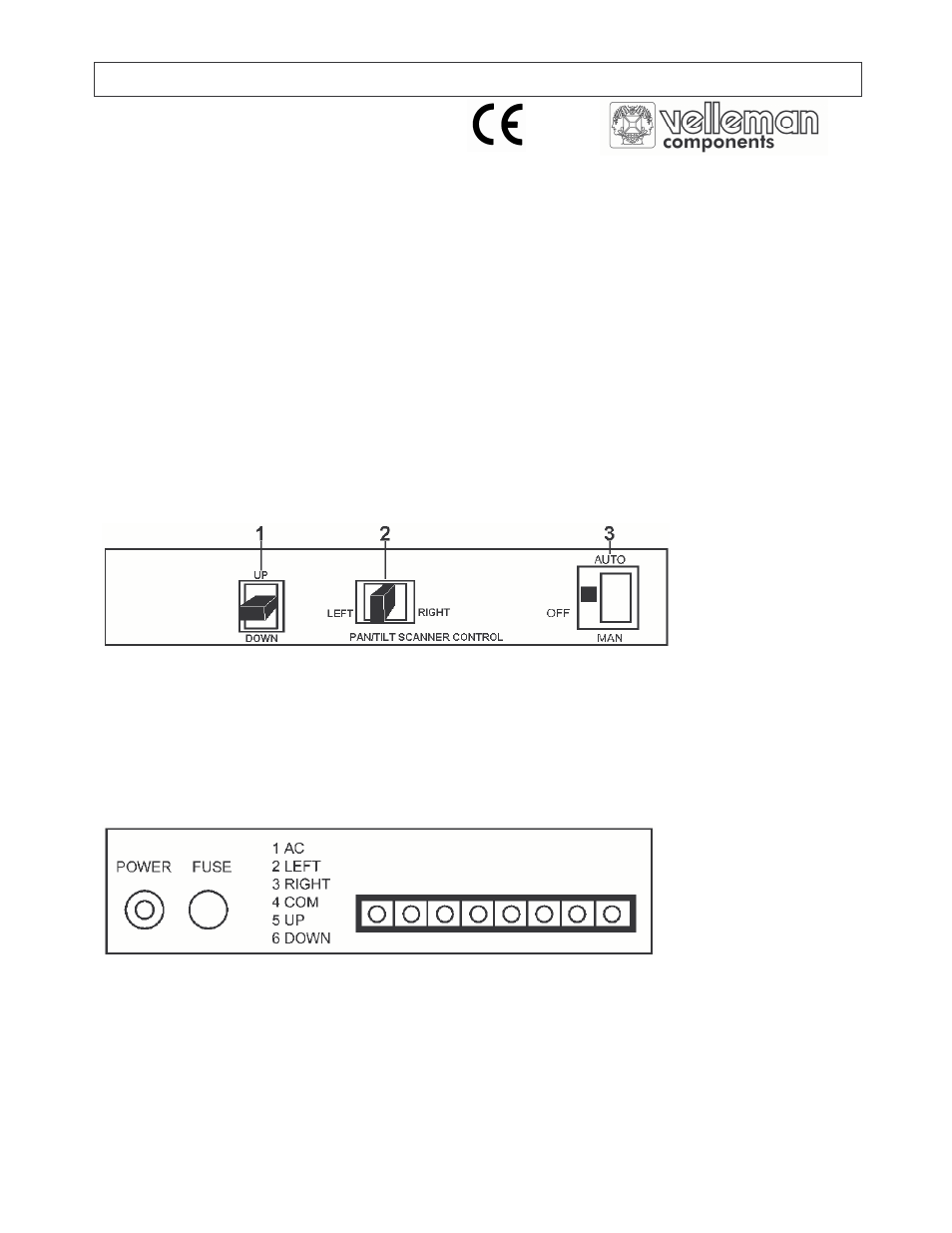

3. Front Panel
1. UP AND DOWN:
Paddle switch, UP/DOWN
2. LEFT AND RIGHT:
Paddle switch, LEFT/RIGHT
3. Power:
"AUTO" (green LED on): motor automatically turns left and right.
"MAN" (red LED on): motor can be controlled manually
"OFF" (middle position - LED off)
4. Rear Panel
1. AC POWER:
Terminal block no. 1
2. LEFT:
Terminal block no. 2
3. RIGHT:
Terminal block no. 3
4. COM:
Terminal block no. 4
5. UP:
Terminal block no. 5
6. DOWN:
Terminal block no. 6
The information in this manual is subject to change without prior notice.
