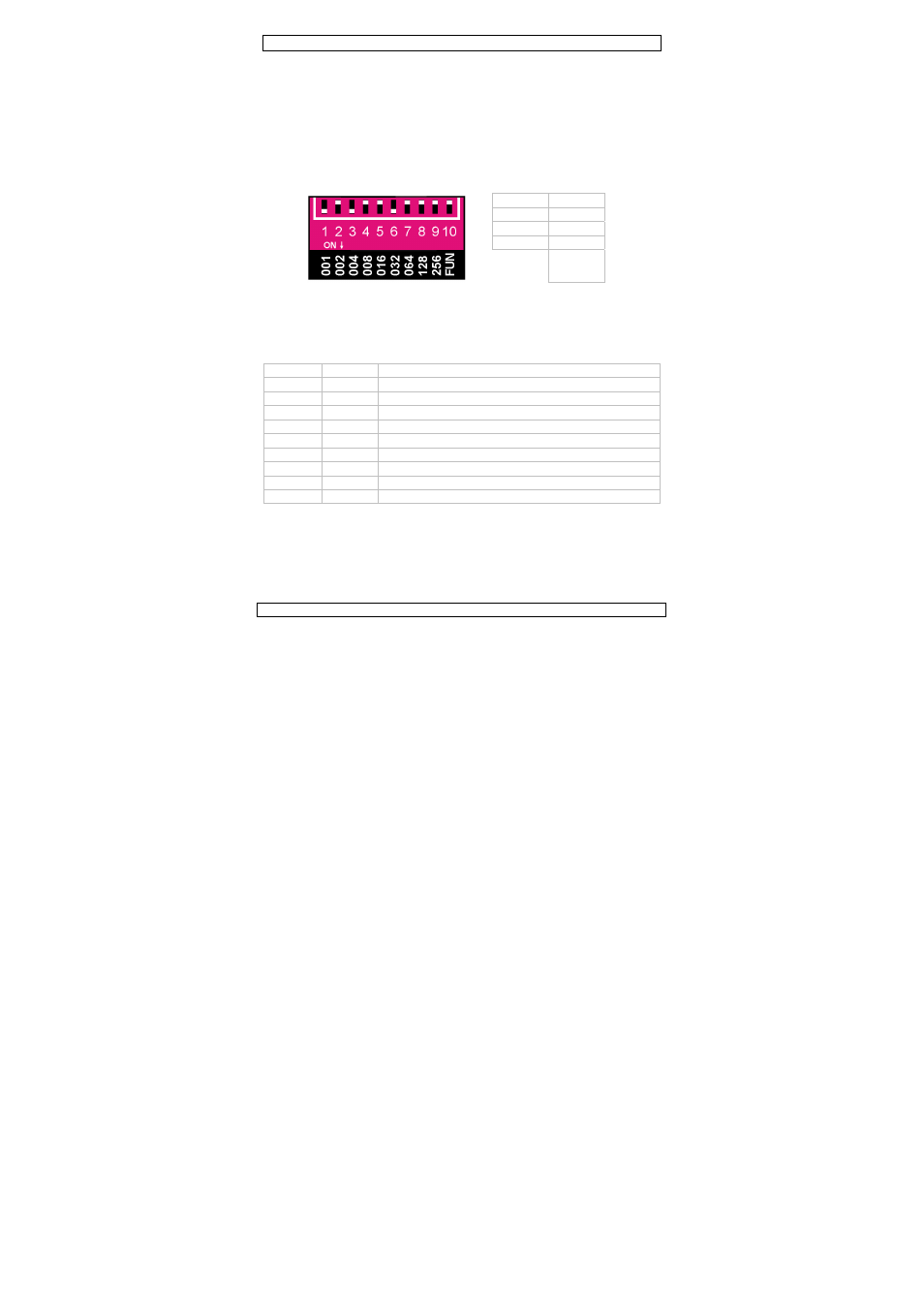

6. DIP switch settings

• The controller can work in 2 modes:

o DMX mode
o internal program mode

DMX mode

• To enable DMX mode, switch 10 must be set in the OFF position.

• Switches 1 ~ 9 determine the DMX starting address. The address is

determined by the switches in the ON-position. E.g.:

Switches 1, 3 and 6 are ON. The address becomes:

switch value

1 001

3 004

6 032

total:

037

The DMX address for this example is 037.

Built-in programs

• To enable the internal program mode, switch 10 must be set in the

ON position.

• The other switches determine the current program.

switch position

program

1 ON

red

2 ON

green

3 ON

blue

4 ON

yellow

5 ON

purple

6 ON

cyan

7 ON

white

changing colours (adjustable speed)

fading colours (adjustable speed)

• When in changing or fading colours mode, the changing or fading

speed is determined by switch 1~7.

o switch 1 ON: slowest speed
o switch 7 ON: fastest speed.

Note: When multiple speed switches are set, the highest setting will

be used.
