Wiring, Dimensions, Aligning transmitter with receiver – Velleman PEM30DN User Manual
Page 4: Technical specifications
PEM30D N
V. 02 – 27/11/2013
4
©Velleman nv
•
mounting bracket / screws included

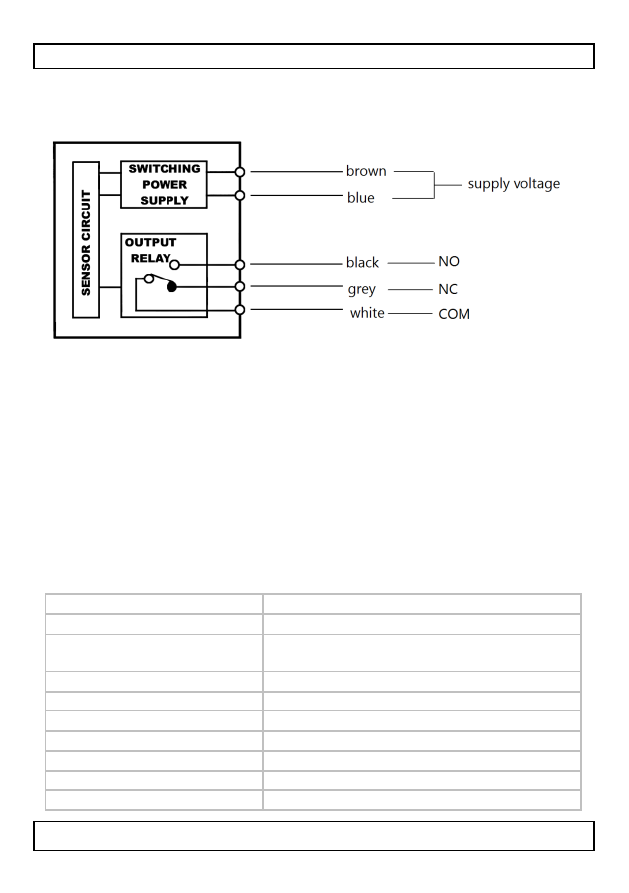

4. Wiring
The black, white and grey cables are only available on the receiver.
5. Dimensions
Refer to the following illustrations:
•
Device: illustration A
•
Mounting bracket: illustration B and C.
6. Aligning transm itter with receiver
Use the LEDs to align the transmitter and the receiver. This is easiest
if you use an IR viewer.
7. Technical Spe cifications
detection method
through beam
sensing range
30 m
input voltage
DC 12 - 240V ± 10% or AC 24 - 240V ±
10%
response time
15 ms
emitting element
IR LED
operation indicator
yellow LED (lights when beam is cut)
dimensions
21 x 55 x 50 mm
current consumption
2 VA max.
output method
relay output
contact current
3A / 250 VAC
