PROMIX66N/PROMIX88N
V. 01 – 30/10/2012 7 ©Velleman nv

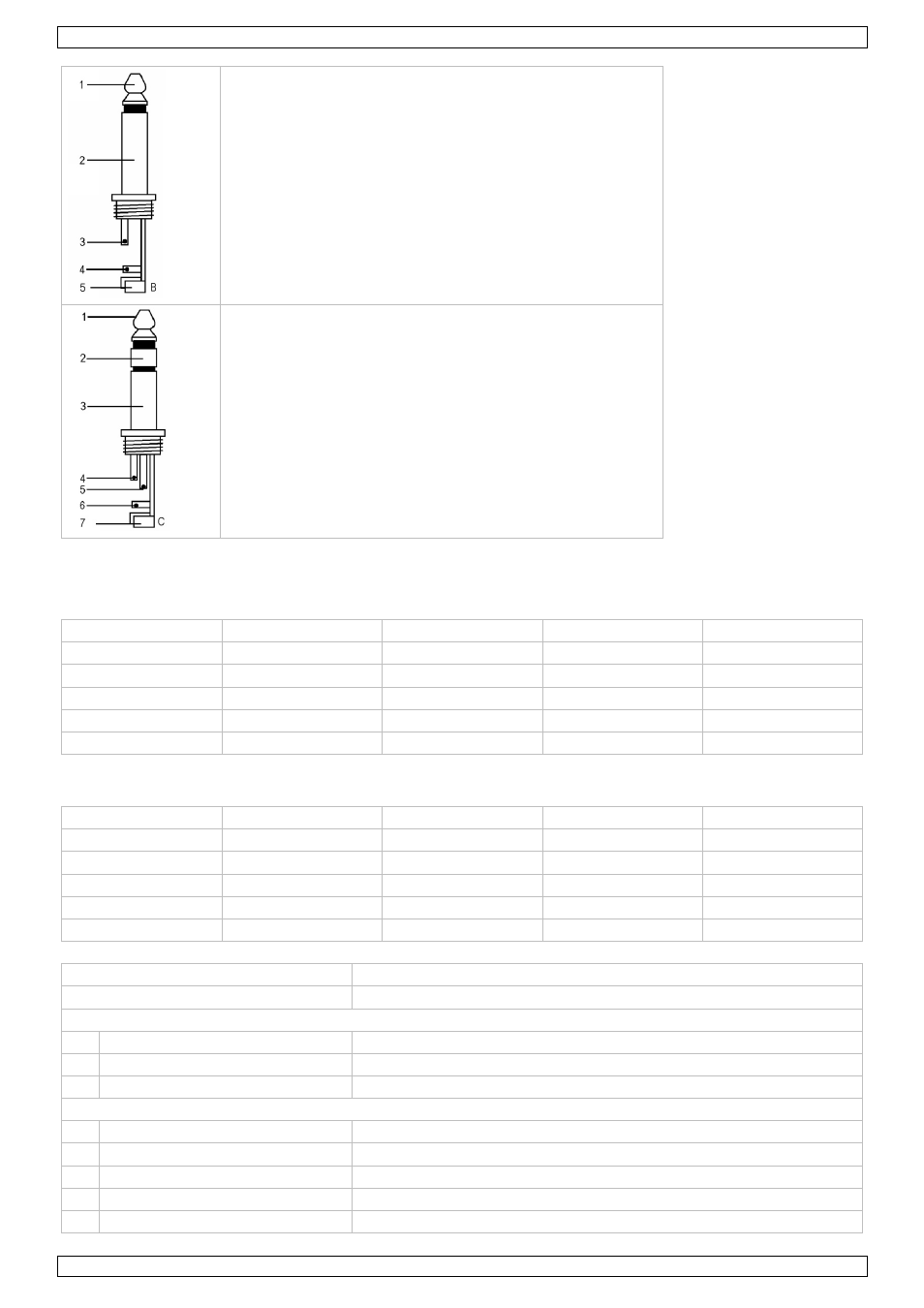

Unbalanced use of mono 1/4" plugs
1. Tip = signal
2. Sleeve = ground
3. Tip
4. Sleeve
5. Strain relief clamp
Balanced use of stereo 1/4" plugs
1. Tip = hot (+)
2. Ring = cold (-)
3. Sleeve = ground
4. Tip
5. Ring
6. Sleeve
7. Strain relief clamp
5. Technical Specifications
Input
Input Connector Input Impedance Nominal Level Max. Level
MONO CH MIC XLR > 1.3 kohm +2 dBm +14 dBm
MONO CH LINE ¼" TRS > 10 kohm +4 dBm +22 dBm
STEREO CH LINE ¼" TRS > 10 kohm +4 dBm +22 dBm
TAPE IN RCA PIN JACKS > 10 kohm +2 dBm +22 dBm
AUX RETURNS ¼" TRS > 10 kohm +4 dBm +22 dBm
Output
Output Connector Input Impedance Nominal Level Max. Level
STEREO OUT L/R ¼" TRS 120 ohm +4 ~ 6 dBm +22 dBm
AUX SEND ¼" TRS 120 ohm +4 ~ 6 dBm +20 dBm
CTRL R OUT ¼" TRS 120 ohm +4 ~ 6 dBm +22 dBm
REC OUT RCA PIN JACKS 1 kohm +4 ~ 6 dBm +22 dBm
PHONES ¼" TRS 100 ohm – 40 mW * 2
Frequency Response
20 Hz to 20 kHz
THD 0.02 %, 20 Hz ~ 20 kHz @ 1 kHz, 0 dBm
Input Channel Equalization
High 12 kHz, +/- 15 dB, Q fixed at 2 octaves
Mid 2.5 kHz, +/- 15 dB, Q fixed at 1 octave
Low 80 Hz, +/- 15 dB, Q fixed at 2 octaves
Gain Control Range
Input Channel Trim Control stop to stop, MIC +10 dB ~ +60 dB; LINE +10 dB ~ +40 dB
Channel/Master/Effect Faders -∞ to +15 dB
Aux Send/Aux Master Send OFF to +15 dB
Aux Return OFF to +20 dB
Channel and Master Effects Send OFF to +15 dB
