VDL660RL_v2 HQPOWER 4
• Select a location where the device is protected against extreme heat, dust and moisture. Respect a minimum
distance of 0.5m between the device’s light output and the target surface.
• Do not use the device if the ambient temperature exceeds 45°C.
• Familiarise yourself with the functions of the device before actually using it. Do not allow operation by unqualified
people. Any damage that may occur will most probably be due to unprofessional use of the device.
• Use the original packaging if the device is to be transported.
• All modifications of the device are forbidden for safety reasons.
• Only use the device for its intended purpose. All other uses may lead to short circuits, burns, electroshocks, lamp
explosion, crash, etc. Unauthorised use automatically voids the warranty.
4. Installation
a) Installing or Replacing Lamps
• Only fit or replace a lamp when the device is unplugged from the mains.
• Let the lamps cool down for at least 10 minutes before replacing them.
• Replace a thermally deformed or damaged lamp with a lamp of the same type.
• Do not install lamps with a higher wattage as they generate higher temperatures than those for which the device
is designed.
• Use R80 230V/60W lamps with an E27 socket. Use any colour you like : LAMP60B (blue), LAMP60G (green),
LAMP60O
(orange), LAMP60R (red), LAMP60V (violet), LAMP60Y (yellow)
Procedure
1. Unscrew the lamp from the lamp holder (counterclockwise).
2. Remove the old lamp, insert the new one and fix it by turning clockwise.
Remark: Do not operate the device when the lamp holders are open.
b) Mounting the Device
• Have the device installed by a qualified person, respecting EN 60598-2-17 and all other applicable norms.
• Make sure there is no flammable material within a 50cm radius of the device.
• Have a qualified electrician carry out the electric connection.

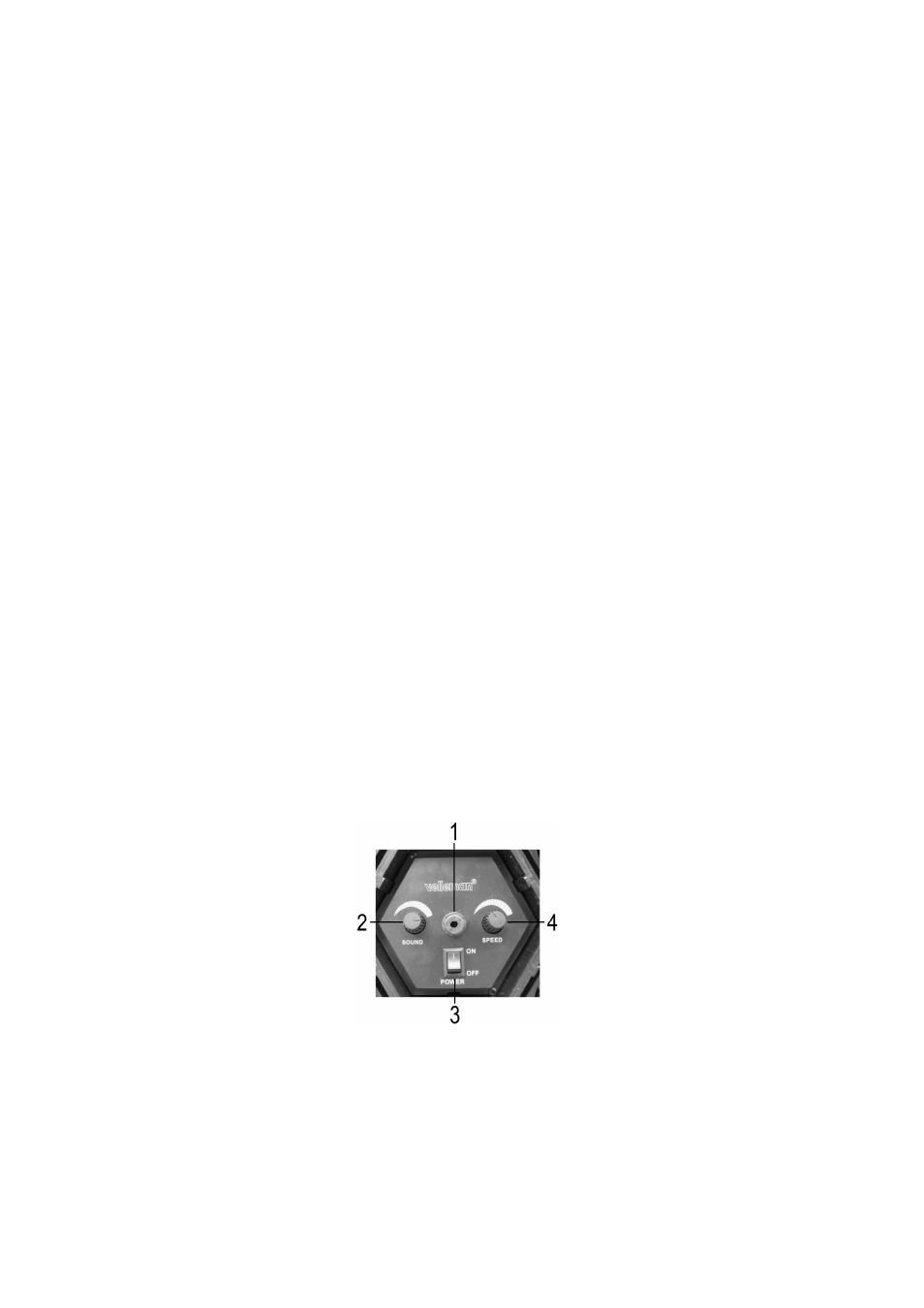

5. Use
1. microphone
2. music sensitivity adjustment
3. ON/OFF switch
4. speed adjustment
Connect the device with the mains through the power plug. Normally speaking it is not a good idea to connect lighting
effects with dimming packs. Place the power switch (3) in the ON position. Adjust the music sensitivity with rotary
control (2) and adjust the running speed with rotary control (4). The device will start to produce colourful light flashes
to the rhythm of the music via the built-in microphone.
Have the entire installation approved by an expert before taking the device into operation.
