Tilt Mechanism

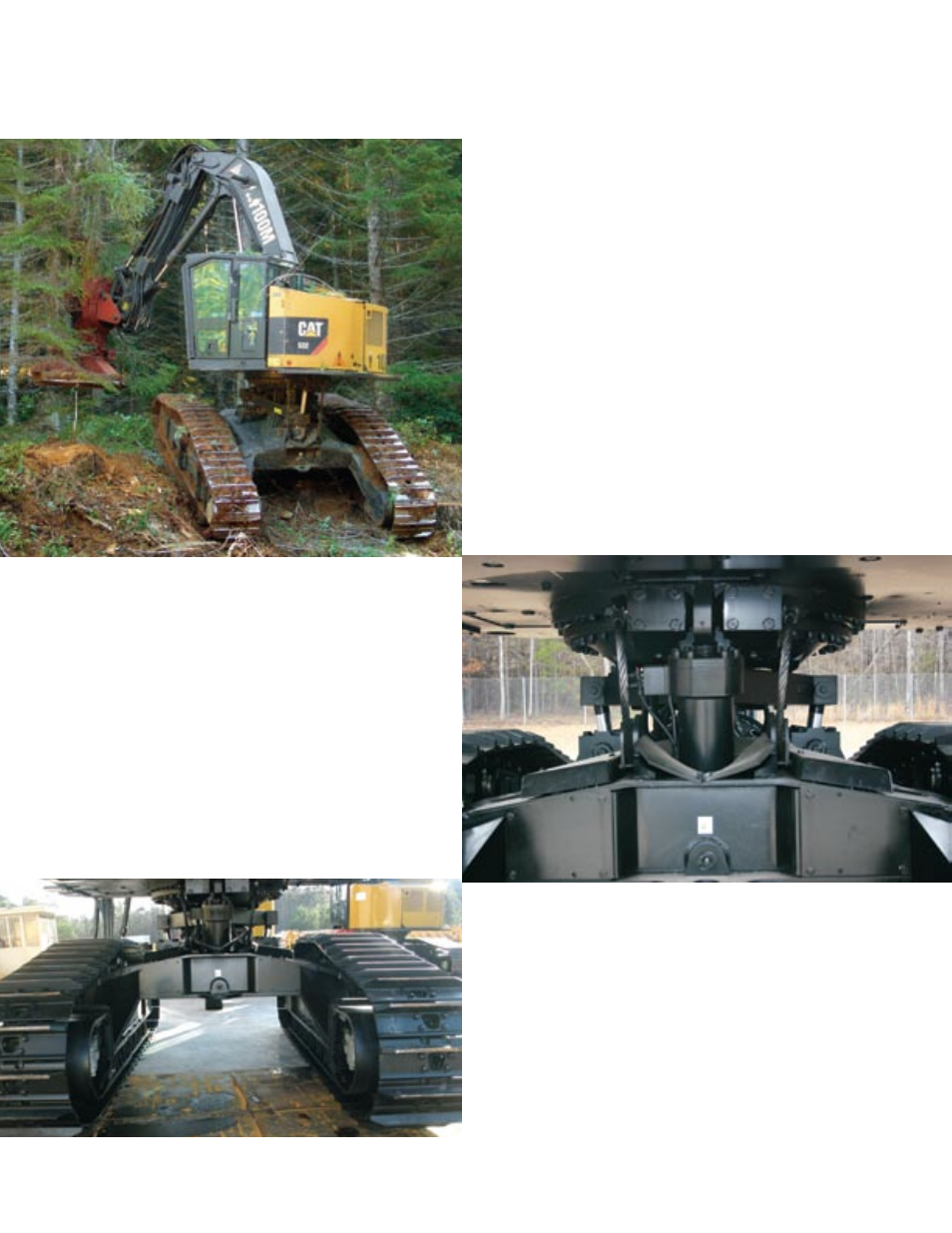

With the most robust tilt mechanism in the industry, the ZTS
tilting models (522 and 532) have a patented 3-cylinder tilt
mechanism with simultaneous tilting forward and side-to-side.
Trunion cylinders are mounted on 2” (51 mm) steel plates and
transfer vertical loads down to the interface of the track frames
and carbody, putting the load into the track and ground.
Cylinders
Three-cylinder tilt mechanism with simultaneously
20 degree forward tilt and 11 degree side-to-side tilt.
Leveling System
Tilting mechanism provides stability and
comfort in steep slope conditions.
Ground Clearance
ZTS machines have excellent ground clearance and
open carbody design. This provides increased mobility
by eliminating debris interference and other obstacles
encountered in rugged working conditions.
