13
L2
H
L1
H

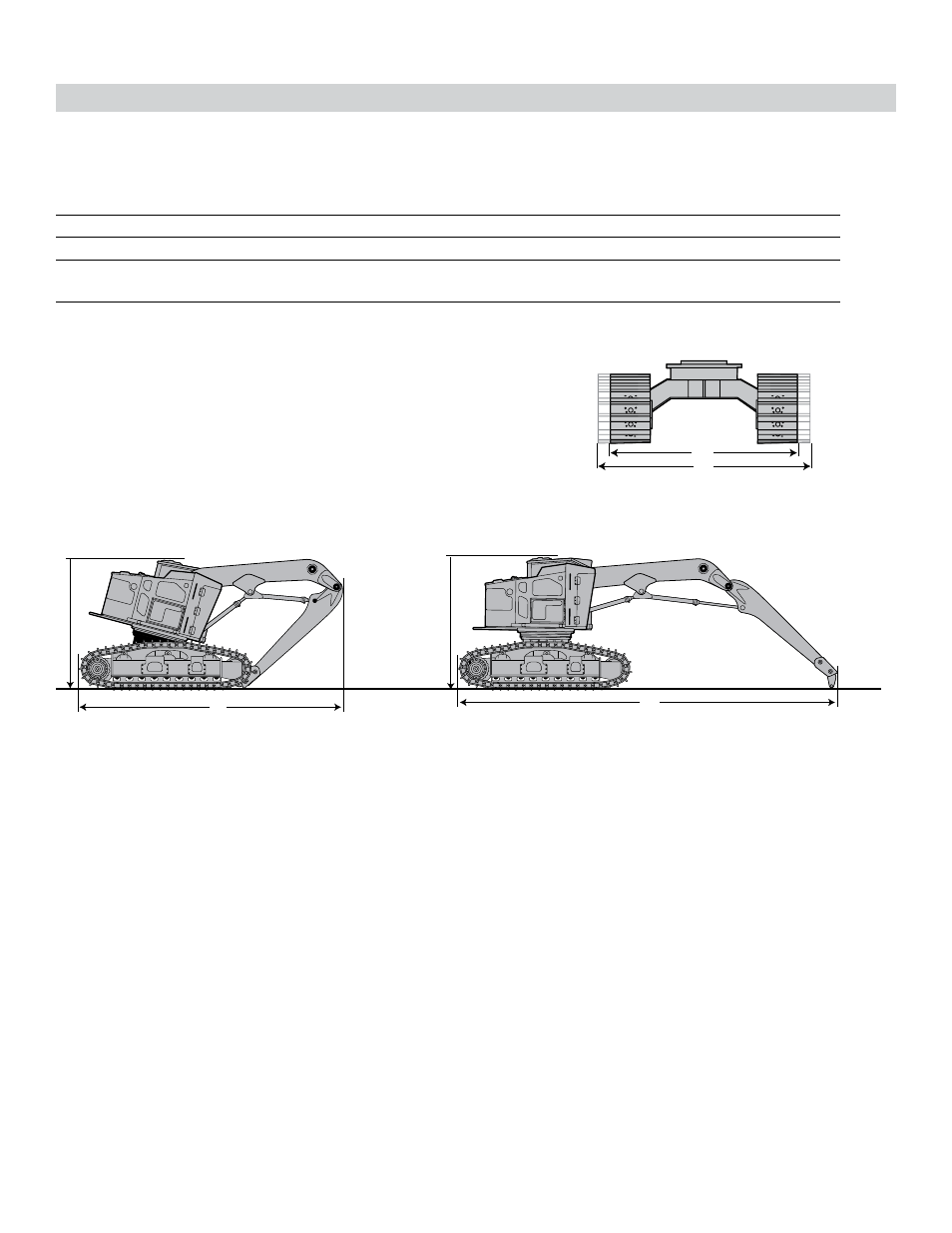

CAT 522/532 (Tilter) Track Harvesters CAT 511/521 (Non-Tilter) Track Harvesters
W1
W2
Length, Height and Width 1 assume 24 in ( 610 mm) SG shoes
* Height to top of cab w/ standard skylight
+ Width 1 is minimum width w/ 24” SG shoes
++ Width 2 is maximum width when undercarriage is set wide
All 522 and 532 TFB models are shipped in the maximum width configuration using Width 2++ dimension.
These illustrations and values are ESTIMATED for TRUCK SHIPMENT ONLY FROM THE FACTORY.
These are subject to change based on attachments, configurations, add-ons, etc.
MODEL Length 1 Length 2 Height* Width 1 + Width 2 ++ Weight
511 446 in (11328 mm) X 133 in (3378 mm) 126 in (3200 mm) X 52,800 lb (23950 kg)
521 453 in (11506 mm) X 140 in (3556 mm) 126 in (3200 mm) X 57,800 lb (26217 kg)
522 X 318 in (8077 mm) 152 in (3861 mm) 126 in (3200 mm) 137 in (3480 mm) 68,160 lb (30917 kg)
(boom tucked)
532 X 318 in (8077 mm) 156 in (3962 mm) 126 in (3200 mm) 137 in (3480 mm) 70,400 lb (31933 kg)
(boom tucked)
Caterpillar ® ZTS Track Harvesters Shipping Dimensions
