525C Wheel Skidder specifications
1
2
4
3
6
5
4
3
2
1
*Thinning grapple is intended only for use in thinning applications

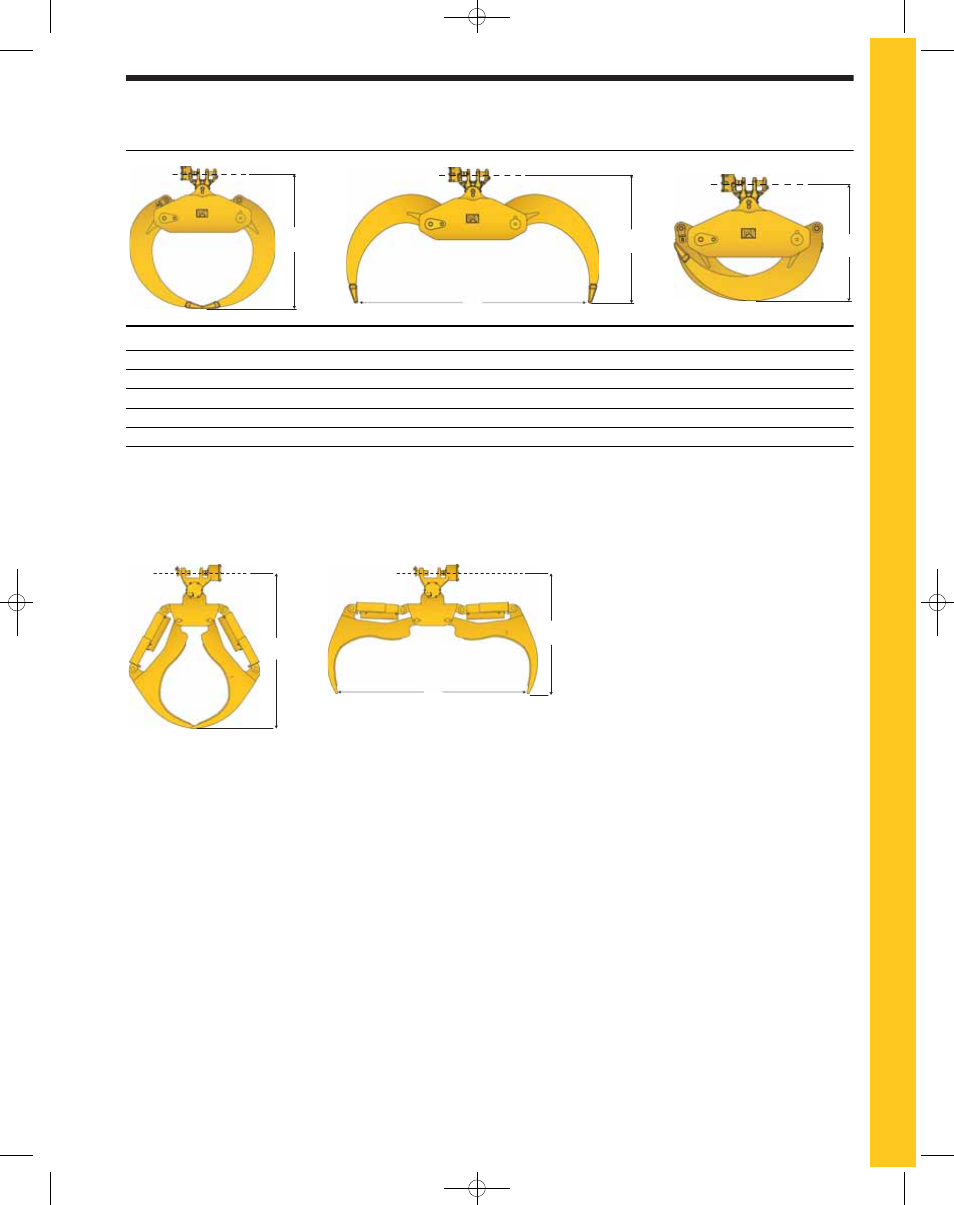

525C Grapple — Continuous Rotation
Sorting
Bunching
Thinning*
1 Grapple capacity
0.83 m
2
(9 ft
2
) 1.16
m
2
(12.5 ft
2
) 1.34
m
2
(14.4 ft
2
)
2 Tip to tip height
2045 mm (80.5 in)
1920 mm (75.6 in)
1981 mm (78 in)
3 Tong opening
2540 mm (100 in)
3050 mm (120 in)
3124 mm (123 in)
4 Full open height
1590 mm (62.6 in)
1677 mm (66 in)
1832 mm (72.1 in)
5 Minimum stem diameter
76 mm (3 in)
155 mm (6 in)
190 mm (7.5 in)
6 Fully closed height
1829 mm (72 in)
1285 mm (50.6 in)
1371 mm (54 in)
Sorting Grapple
