Grapples, Arch configurations – Milton CAT 517 User Manual
Page 4
4
March 4, 2008 3:20 PM
517
A
B
C
D
E
F
Single Function
2465 mm / 96 in 909 mm / 36 in
2974 mm / 117 in
x
1000 mm / 39 in
x
Swing Boom Arch 3601 mm / 142 in 1500 mm / 59 in
4115 mm / 162 in 2748 mm / 108.1 in
1491 mm / 59 in 1249 mm / 49.2 inISO

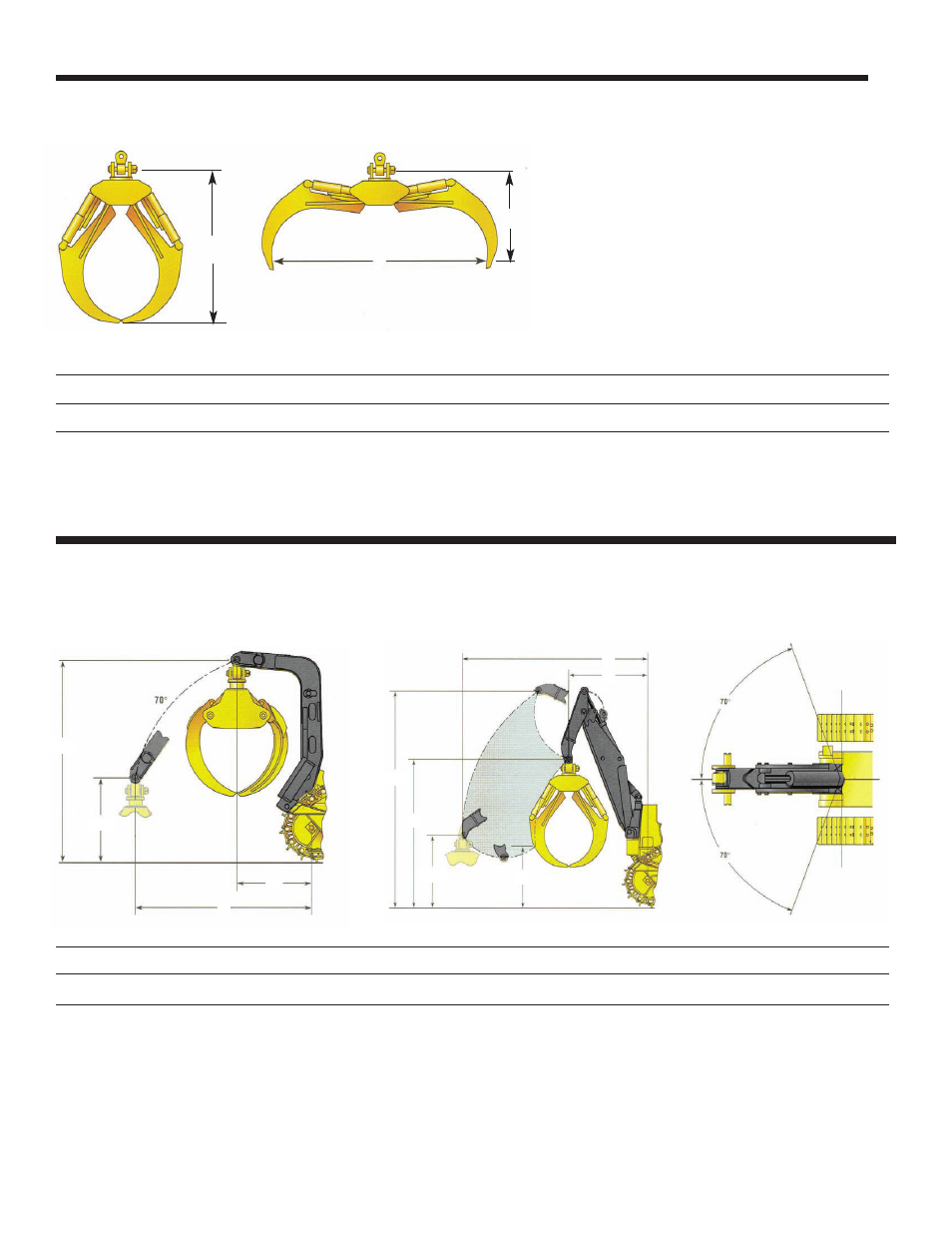

Grapple for 517
A
B
C
D
2.13 m / 84 in (Sorting)
1980 mm / 78 in
0.74 m2 / 8 ft2
1680 mm / 66 in
2130 mm / 84 in
2.29 m / 90 in (Bunching)
1920 mm / 75 in
0.74 m2 / 8 ft2
1640 mm / 64 in
2290 mm / 90 in
Grapples
Choose from a variety of grapple configuration to meet your needs.
Sorting Grapple
• Used for 305 mm (12 in) or larger diameter trees
• Designed to pick-up individual or several stems for
quick eyeles
Bunching Grapple
• Used for 305 mm (12 in) or smaller diameter trees
• Designed to gather bundle of stems and maximize
grapple loads
Arch Configurations
Two arch configurations allow you to effectively match the 517 to a wide variety of skidding applications.
