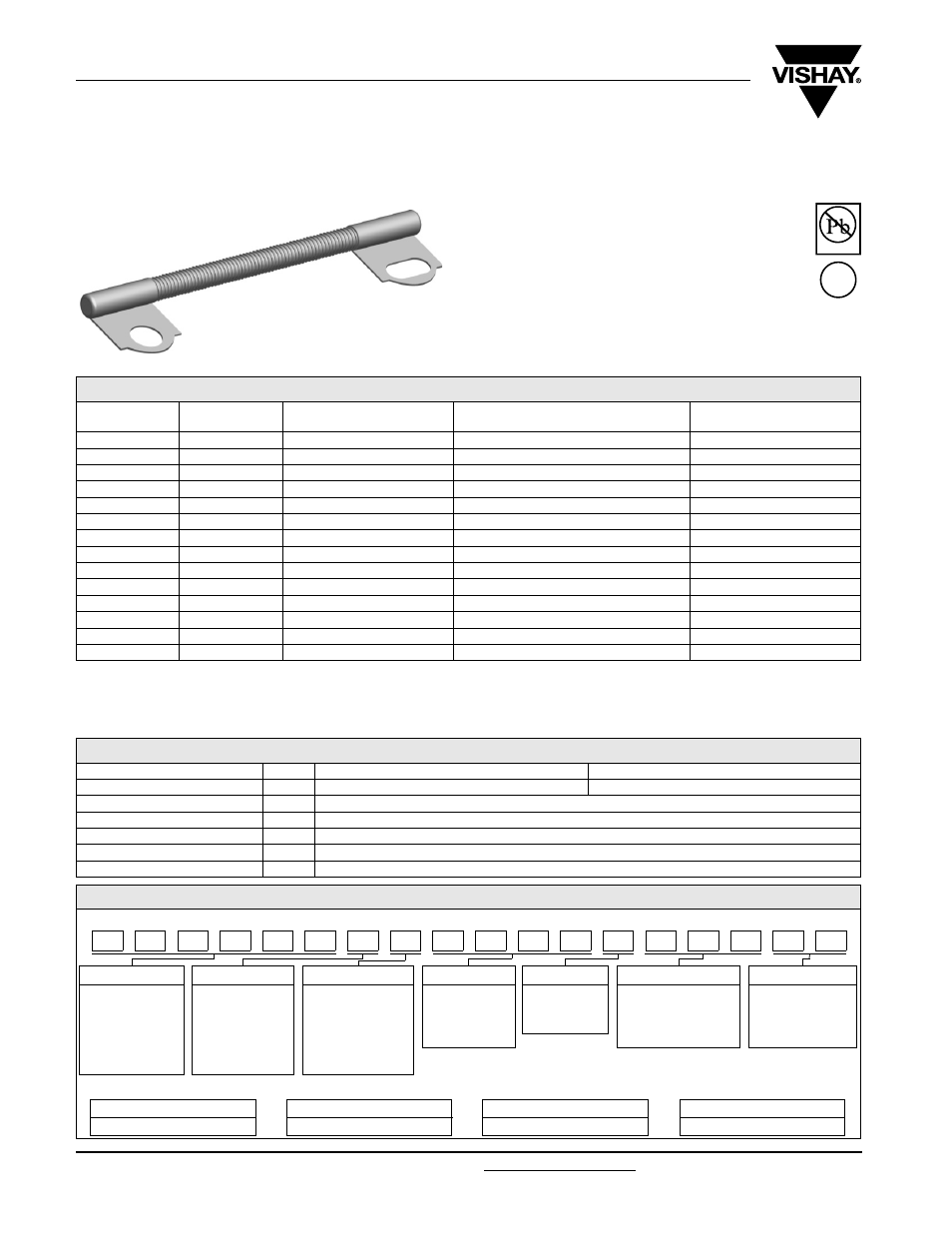

Wirewound Resistors,
Commercial Power, Tab Type Terminals
CL
Vishay Dale
www.vishay.com For technical questions, contact: [email protected] Document Number: 30222
64 Revision: 31-Oct-07
FEATURES
• Variety of core diameters and length
• Numerous mounting hole sizes and shapes
• High performance for low cost
APPLICATIONS
Appliance applications include food mixers,
coffee makers, electric and electronic ranges,
electric blankets, actuating heaters for bi-metal
switches, toasters and deep fryers.
Other applications include toys, entertainment
devices such as television, radio and amplifiers.
Note
(1) CL4000 and CL6000 model numbers are calculated from the CL4000 power rating of 4 W per inch and CL6000 power rating of 6 W per inch.
The last three digits of the model number represent the mounting center spacing of the resistor in inches (decimal is between the first and
second digit, mounting center spacing is available between 0.95" [24.13 mm] and 3.00" [76.20 mm]). Example: CL6133 = 1.33 inches x 6 W
per inch = 8 W.
RoHS
COMPLIANT
Pb-free
e3
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL
MODEL
(1)
HISTORICAL
MODEL
(1)
POWER RATING P
25 °C
W
RESISTANCE RANGE Ω
± 10 % standard, ± 5 % available
WEIGHT (typical)
g
CL4095 CL-4095 3.8 0.10 - 685 1.08
CL4100 CL-4100 4 0.11 - 740 1.09
CL4125 CL-4125 5 0.15 - 1.02K 1.16
CL4150 CL-4150 6 0.19 - 1.35K 1.23
CL4200 CL-4200 8 0.27 - 1.86K 1.37
CL4225 CL-4225 9 0.31 - 2.14K 1.44
CL4300 CL-4300 12 0.43 - 2.99K 1.65
CL6095 CL-6095 5.7 0.10 - 175 2.30
CL6100 CL-6100 6 0.10 - 190 2.35
CL6133 CL-6133 8 0.13 - 285 2.68
CL6167 CL-6167 10 0.18 - 380 2.97
CL6200 CL-6200 12 0.22 - 475 3.35
CL6233 CL-6233 14 0.27 - 570 3.68
CL6300 CL-6300 18 0.35 - 765 4.35
TECHNICAL SPECIFICATIONS
PARAMETER UNIT CL 4000 CL 6000
Power Rating W 4 per inch 6 per inch
Temperature Coefficient ppm/°C ± 600 below 1.0
Ω, ± 300 for 1.0 Ω and above
Short Time Overload - 5 × rated power for 5 s
Maximum Working Voltage V ( P x R) 1/2
Operating Temperature Range °C - 65 to + 375
Terminal Strength lb 10 minimum
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: CL4100XX100RJB1410 (preferred part number format)
GLOBAL MODEL LEFT TERMINAL RIGHT TERMINAL VALUE TOLERANCE PACKAGING SPECIAL
(See Standard
Electrical
Specifications
Global Model
column for
options)
A
B
C
D
F
X
A
B
C
D
F
X
R = Decimal
K = Thousand
R150 = 0.15 Ω
1K00 = 1000 Ω
H = ± 3.0 %
J = ± 5.0 %
K = ± 10.0 %
B14 = Lead (Pb)-free
bulk
E31 = Lead (Pb)-free
four layer bulk
(Dash Number)
(up to 2 digits)
From 1 - 99 as
applicable
Historical Part Number Example: CL-4100XX-10 100
Ω 5 % B14 (will continue to be accepted for tin/lead product only)
CL-4100XX-10 100 Ω 5 % B14
HISTORICAL MODEL RESISTANCE VALUE TOLERANCE CODE PACKAGING
L 4 1 0 0 X X 1 0 0 R J B 1 C 4 0 1
