VEGA 912X-IS FISCO POWER SUPPLIES User Manual

912x-is fisco power supplies, Overview, Fsc-mbt te rm in ato r relcom inc

background image

EUROPE (EMEA)

Tel: +44 (0)1582 723633

Fax: +44 (0)1582 422283

AMERICAS

Tel: +1 603 926 0090

Fax: +1 603 926 1899

ASIA PACIFIC

Tel: +65 487 7887

Fax: +65 487 7997

E-mail: [email protected] Web site: www.mtl-inst.com

May 2003

912X-IS FISCO POWER
SUPPLIES

FSC-MBT

Te

rm

in

ato

r

Relcom Inc.

4

5

6

7

8

3

1

2

POWER

Relcom Inc.

FCS-MB8-SG

POWER

FCS-MB4-SG

4

3

1

2

Relcom Inc.

Relcom Inc.

POWER

FCS-MB4-SG

4

3

1

2

Relcom Inc.

POWER

FCS-MB4-SG

4

3

1

2

Relcom Inc.

POWER

FCS-MB4-SG

4

3

1

2

Relcom Inc.

POWER

FCS-MB4-SG

4

3

1

2

Relcom Inc.

FSC-MBT

Te

rm

in

ato

r

Relcom Inc.

FSC-MBT

Te

rminator

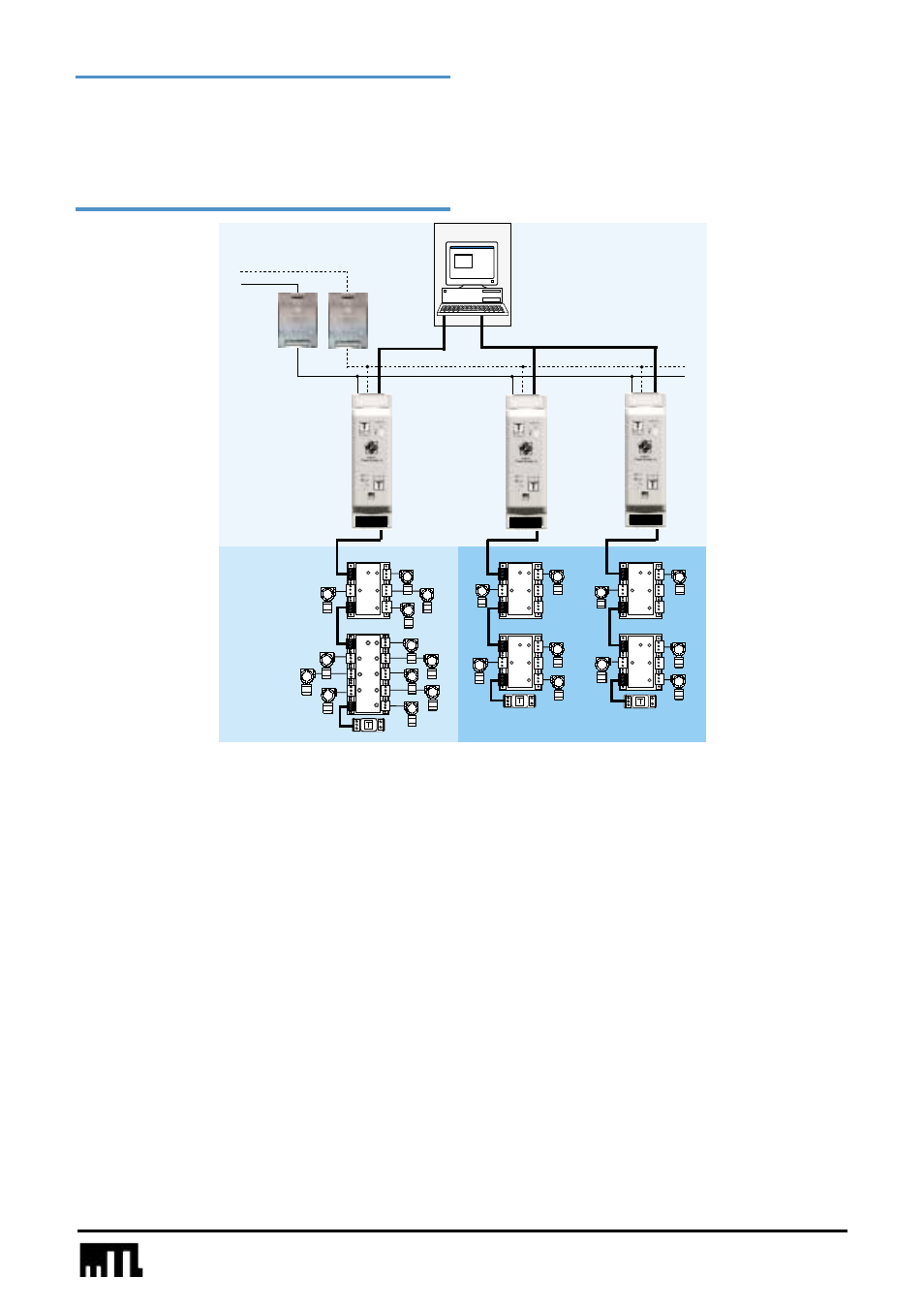

Safe or Zone/Division 2

hazardous area

9122-IS

FISCO power

supply, IIB

9121-IS

FISCO power

supply, IIC

AC power 85 - 265Vac

Zone/Division 1

hazardous area

IIC

IIB

8914-PS-AC

power

supply

8914-PS-AC

power

supply

Safe area

OVERVIEW

The 9121-IS and 9122-IS are fieldbus repeater isolators which repeat
the fieldbus signal from a safe area, Zone 2 or Division 2 fieldbus to
an intrinsically safe fieldbus for connection to devices in Zone or
Division 1. The 9121-IS provides up to 110mA, typically powering up
to 5 x 20mA field devices in Gas Group IIC and the 9122-IS provides
up to 250mA, typically powering up to 12 x 20mA field devices in
Gas Group IIB.

The 912x-IS is certified to FISCO (Fieldbus Intrinsically Safe COncept)
based on the Fieldbus FOUNDATION FF816-FISCO physical layer
profile and IEC/TS 60079-27 FISCO Technical Specification. This
allows the power supplied to the IS fieldbus to exceed the limit set in
the original FF-816 IS physical layer profile. This increases the number
of devices on an IS fieldbus from typically 4 x 20mA devices with
maximum of 80m cable run, to up to 12 x 20mA devices with 250m
cable run using the 9122-IS.

In addition, FISCO reduces the documentation required. Intrinsically
safe systems have been installed in accordance with IEC/EN60079-
14 or similar local code of practice. This requires:

◆ calculation of cable parameters

◆ comparison of safety descriptions

◆ creation of descriptive system document

The administrative work involved in carrying this out in accordance
with the end users procedures is usually considerable. Simply adding a
new field device to an IS segment will require all this documentation to
be updated.

Fieldbus intrinsically safe systems can now also be installed in
accordance with IEC/TS 60079-27 FISCO Technical Specification.
This:

◆ eliminates need to calculate cable parameters

◆ reduces safety documentation to a list of devices

◆ allows addition of devices without a review of safety

documentation

◆ as proven by test, allows longer cables with higher

capacitance

To install a fieldbus system to IEC/TS 60079-27 FISCO Technical
Specification, the cable used in the system must comply with the
following parameters:

Loop resistance Rc: 15 to 150 Ω/km

Loop inductance Lc: 0,4 to1 mH/km

Capacitance Cc:

80 to 200 nF/km

Maximum length of each spur cable: 30 m in IIC and IIB
Maximum length of each trunk cable: 1 km in IIC 5 km in IIB

When cable which complies with this specification is used, no further
consideration of cable parameters is necessary. Virtually any
instrument cable suitable for a fieldbus signal will comply.

Alternatively if all these cable requirements are not met on a segment,
the FISCO power supplies can still be used in intrinsically safe systems,
calculating the cable parameters to IEC/EN60079-14 in the usual
way.

Fieldbus Foundation™ and FOUNDATION™ are trademarks of Fieldbus Foundation, Austin, Texas, USA.
