3 Product description
VEGABAR 82 • 4 … 20 mA
45027-EN-131010
This operating instructions manual applies to the following instrument
versions:
•
Hardware from 1.0.0
•
Software version from 1.0.0
The scope of delivery encompasses:
•
Pressure transmitter
•
Documentation
– this operating instructions manual
– Test certificate measuring accuracy (optional)
– Operating instructions manual "Display and adjustment mod-
ule" (optional)
– Supplementary instructions manual "Heating for display and
adjustment module" (optional)
– Supplementary instructions manual "Plug connector for con-
tinuously measuring sensors" (optional)
– Ex-specific "Safety instructions" (with Ex versions)
– if necessary, further certificates
3.2 Principle of operation
The VEGABAR 82 is suitable for the measurement of the following
process variables:
•
Process pressure
•
Level

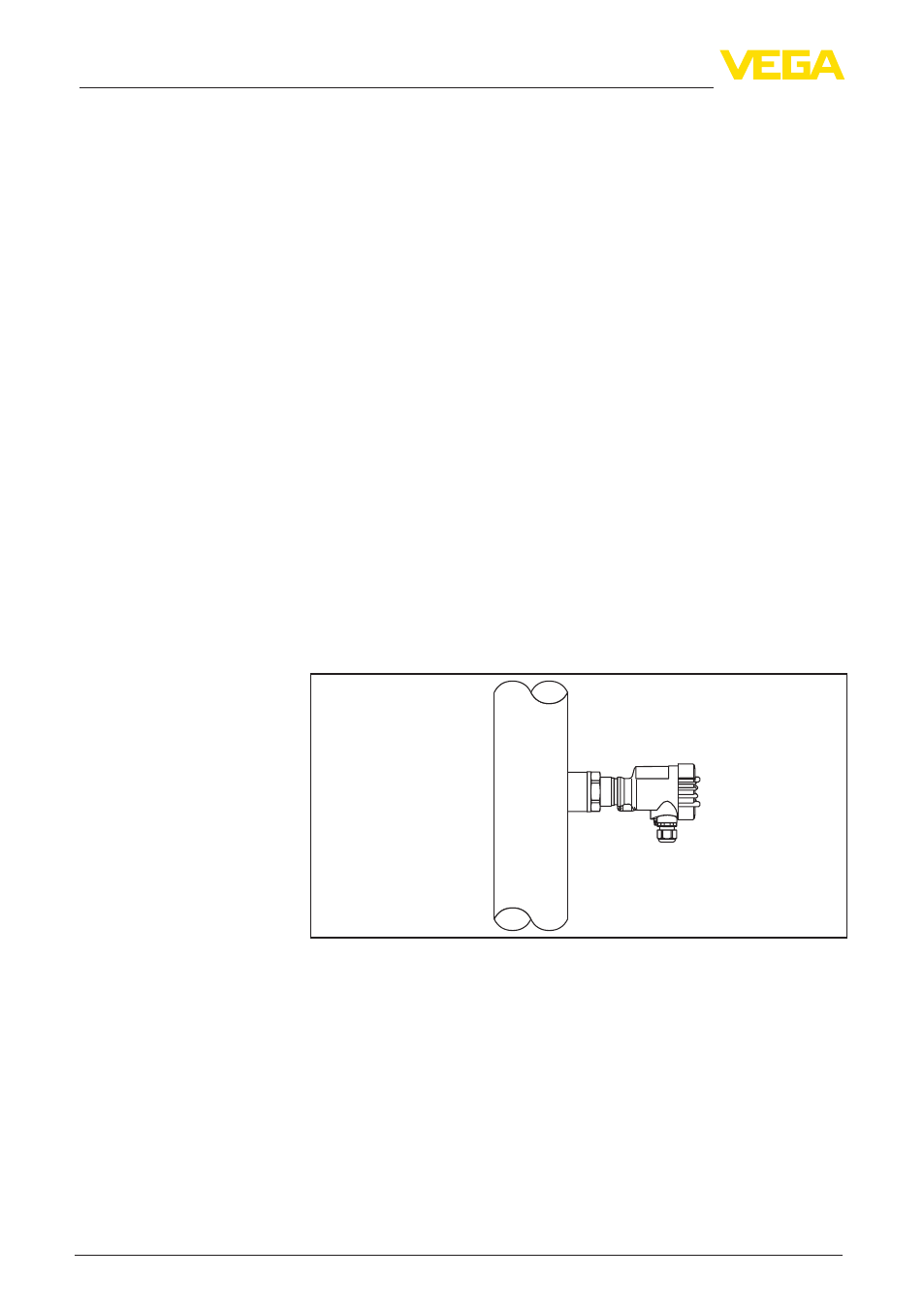

Fig. 2: Process pressure measurement VEGABAR 82
VEGABAR 82 is suitable for applications in virtually all industries. It is
used for the measurement of the following pressure types.
•
Gauge pressure
•
Absolute pressure
•
Vacuum
Measured products are gases, vapours and liquids.
Depending on the process fitting and measurement setup, measured
products can be also viscous or contain abrasive substances.
Scope of this operating
instructions manual
Scope of delivery
Measured variables
Application area
Measured products
