2 adjustment elements – VEGA VEGASWING 66 - transistor (NPN-PNP) With SIL qualification User Manual
Page 22

22
6 Setup
VEGASWING 66 • - transistor (NPN/PNP)
44951-EN-130805
6.2 Adjustment elements
4
1
5
3
2
T

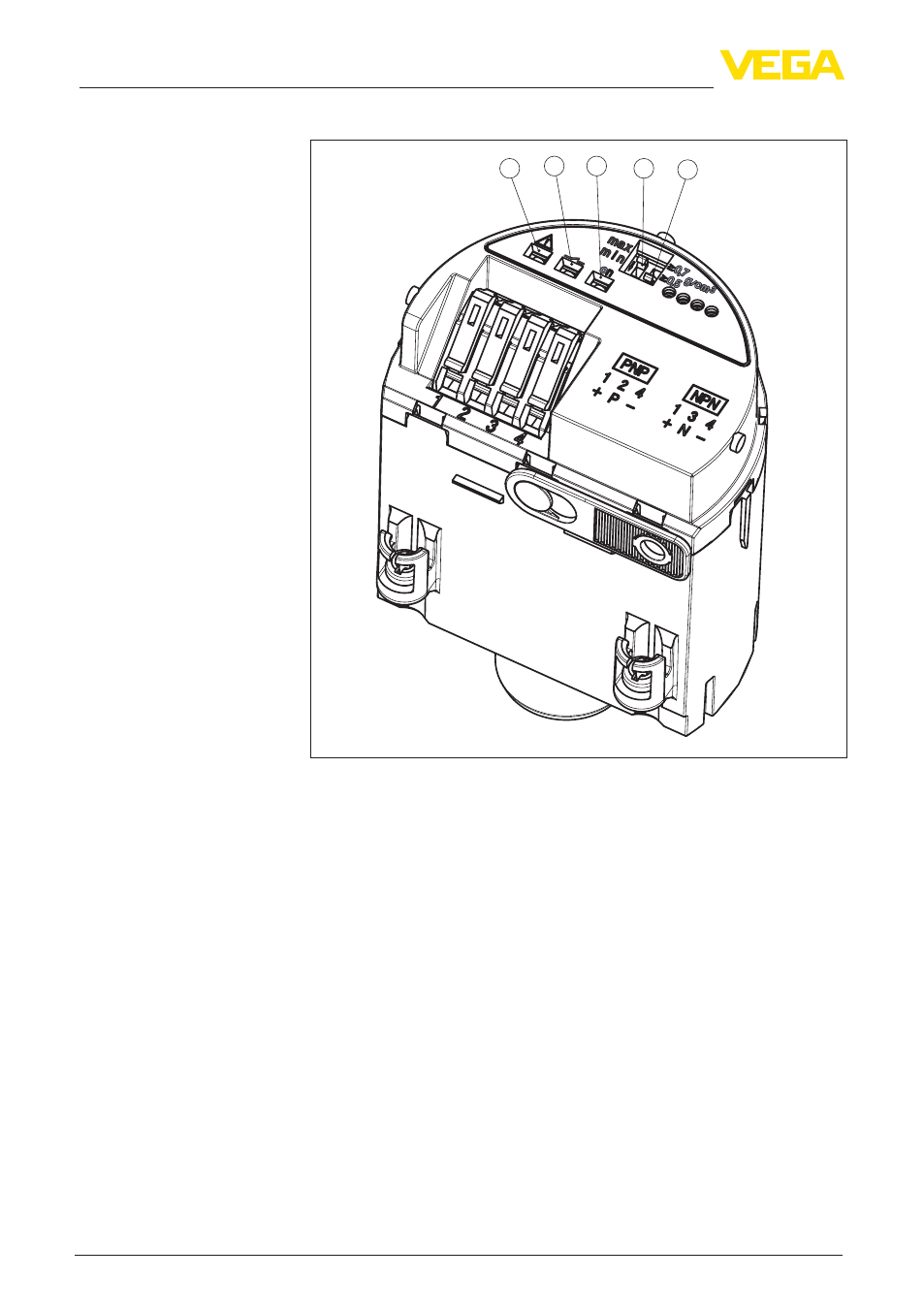

Fig. 15: Oscillator - Transistor output
1 Signal lamp - red (LED)
2 Signal lamp - yellow (LED)
3 Signal lamp - green (LED)
4 DIL switch for mode adjustment
5 DIL switch for sensitivity adjustment
The instrument monitors the vibrating frequency, electronics tempera-
ture and internal instrument functions.
•
Red LED lights = fault
•
Output closed
The signal lamp for indication of the switching condition of the output.
With the mode setting (4), the switching condition and hence the
function of the signal lamp can be changed.
•
Yellow LED lights = output open
•
Green LED lights = operating voltage on
With the mode switch (max./min.) you can change the switching sta-
tus. You can set the required mode according to the "Function chart"
Control lamp (1) - fault
indication (red)
Signal lamp (2) - Switch-
ing condition (yellow)
Signal lamp (3) - Operat-
ing condition (green)
Mode setting (4)
