3 Product description
VEGABAR 51 • 4 … 20 mA
36712-EN-130321
3 Product description
3.1 Configuration
The scope of delivery encompasses:
•
VEGABAR 51 pressure transmitter
•
Documentation
– this operating instructions manual
– Test certificate for pressure transmitters
– Operating instructions manual 27835 "Display and adjustment
module PLICSCOM" (optional)
– Supplementary instructions manual 31708 "Heating for display
and adjustment module" (optional)
– Supplementary instructions manual "Plug connector for con-
tinuously measuring sensors" (optional)
– Ex-specific "Safety instructions" (with Ex versions)
– if necessary, further certificates
This operating instructions manual applies to the following instrument
versions:
•
Software from 3.82
The VEGABAR 51 consists of the components:
•
Process fitting with measuring cell
•
Housing with electronics, optionally available with plug connector
•
Housing cover, optionally available with display and adjustment
module
The components are available in different versions.
3
2
1

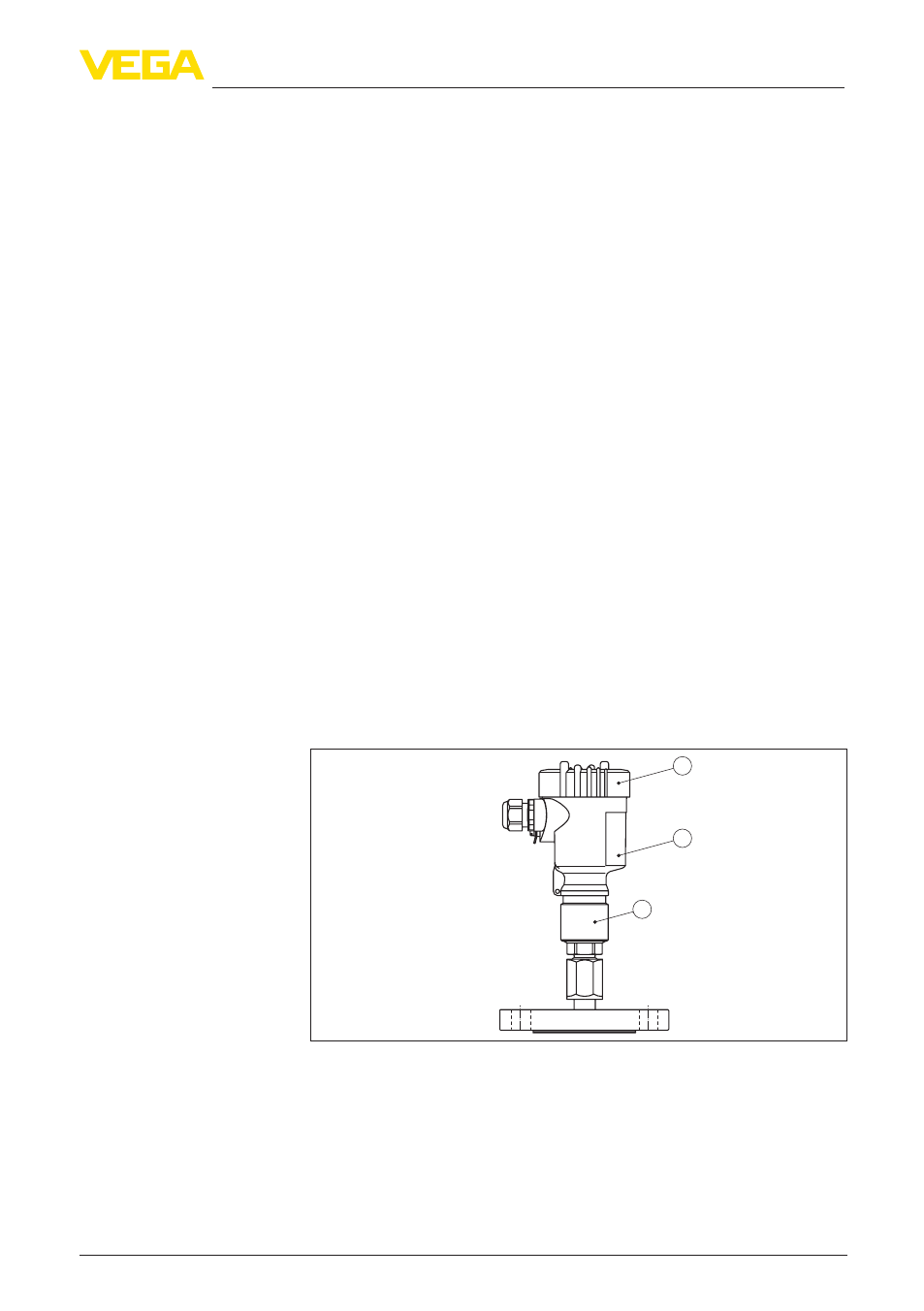

Fig. 1: Example of a VEGABAR 51 with flange connection DN 50 PN 40 and
plastic housing
1 Housing cover with integrated display and adjustment module (optional)
2 Housing with electronics
3 Process fitting with measuring cell
The nameplate contains the most important data for identification and
use of the instrument:
Scope of delivery
Scope of this operating
instructions manual
Constituent parts
Type plate
