4 Mounting
VEGABAR 67 • Foundation Fieldbus - climate compensated
39446-EN-130321
Mount VEGABAR 67 with screwed connection as follows:
1. Weld the welded socket into the vessel top
2. Lower VEGABAR 67 to the requested height by means on the
welded socket G1½ or 1½ NPT on the vessel side
3. Insert the suspension cable from below into the open screwed
connection
4. Slide the seal cone and the cone sleeve over the suspension
cable, fasten manually with the seal screw
5. Screw the screwed connection into the socket, tighten with
SW 30 and then tighten seal screw with SW 19
How to correct the height:
1. Loosen seal screw with SW 19
2. Slide seal cone and cone sleeve to the requested position on the
cable
3. Fasten the seal screw
Removal is carried out in reverse order.
4.5 Mounting steps with lock fitting
1
3
2
4
5

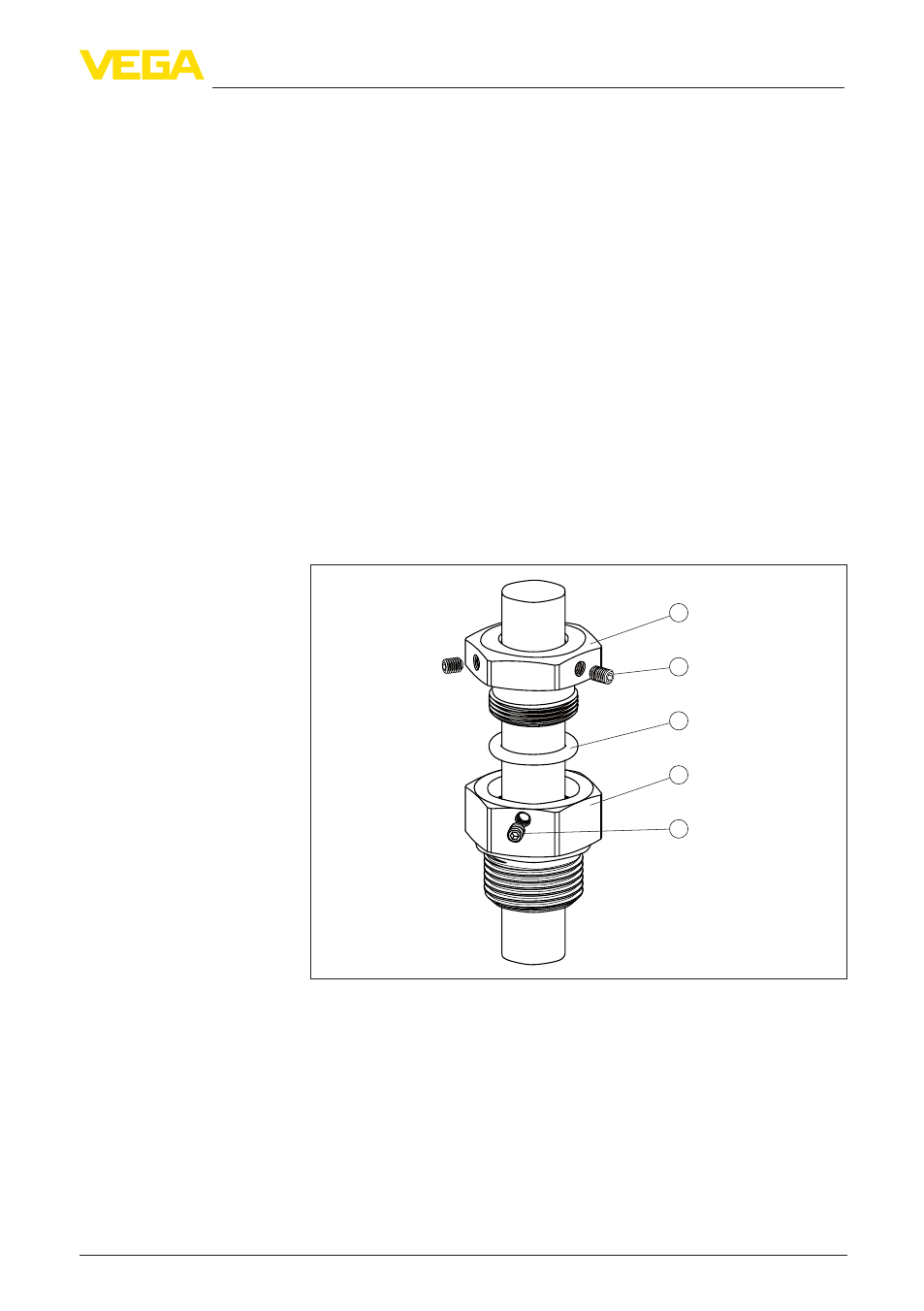

Fig. 9: Lock fitting
1 Upper hexagon
2 Fixing screw
3 Washer disk
4 Lower hexagon
5 Fixing screw
Mount VEGABAR 67 with lock fitting as follows:
1. Weld the welded socket G1½ or 1½ NPT to the vessel top
2. Lower VEGABAR 67 through the welded socket.
