14
5 Connecting to power supply
VEGASWING 51 • - transistor (PNP)
40552-EN-130322
1 2 3 4
5

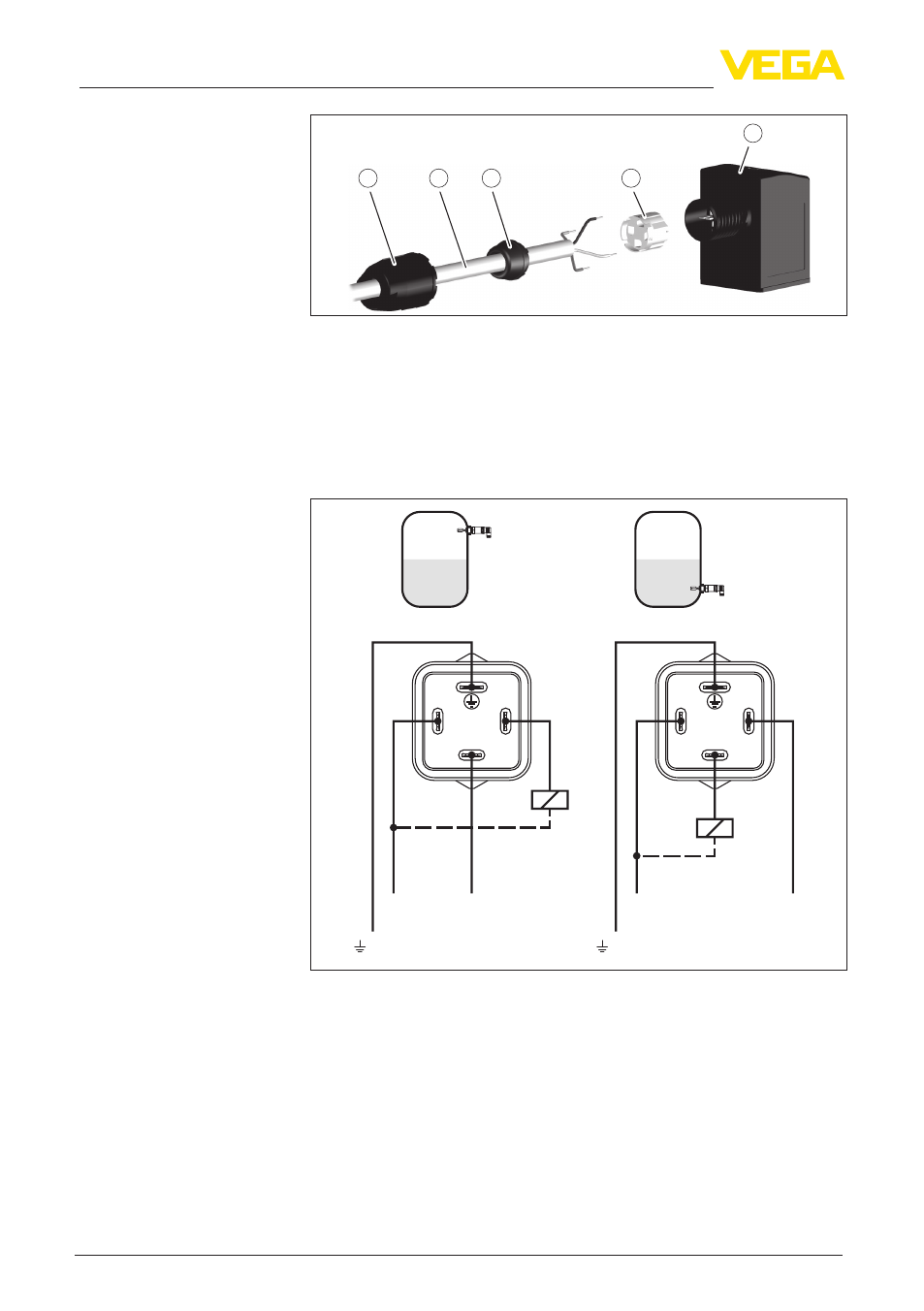

Fig. 8: Connection, valve plug ISO 4400 with IDC crimping technology
1 Compression nut
2 Cable
3 Seal ring
4 Terminal insert
5 Plug housing
For connection to binary inputs of a PLC.
Max. Min.
3
2 1
3
2 1
- +
R
L
R
L
- +
PA PA
Fig. 9: Wiring plan, Transistor output with valve plug ISO 4400
PA Potential equalisation
R
L
Load resistance (contactor, relay, etc.)
Transistor output
