4 Mounting
4 .1 Instructions for installation
If the electronics module is defective, it can be replaced by the user.
In Ex applications only one instrument and one electronics module with
respective Ex approval may be used.
4 .2 Mounting preparations
Keep in mind that the emitting and receiving unit require special
electronics modules.
l Emitting unit - electronics module MP60EE.T**
l Receiving unit - electronics module MP60EE.R**
4 .3 Mounting steps
To exchange the electronics module, proceed as follows:
1 Switch off power supply
2 Unscrew the housing cover
3 Lift the terminal block with a small screwdriver and pull it out.
4 Loosen the two screws with a screw driver (Torx size T10 or slot 4)
2
1

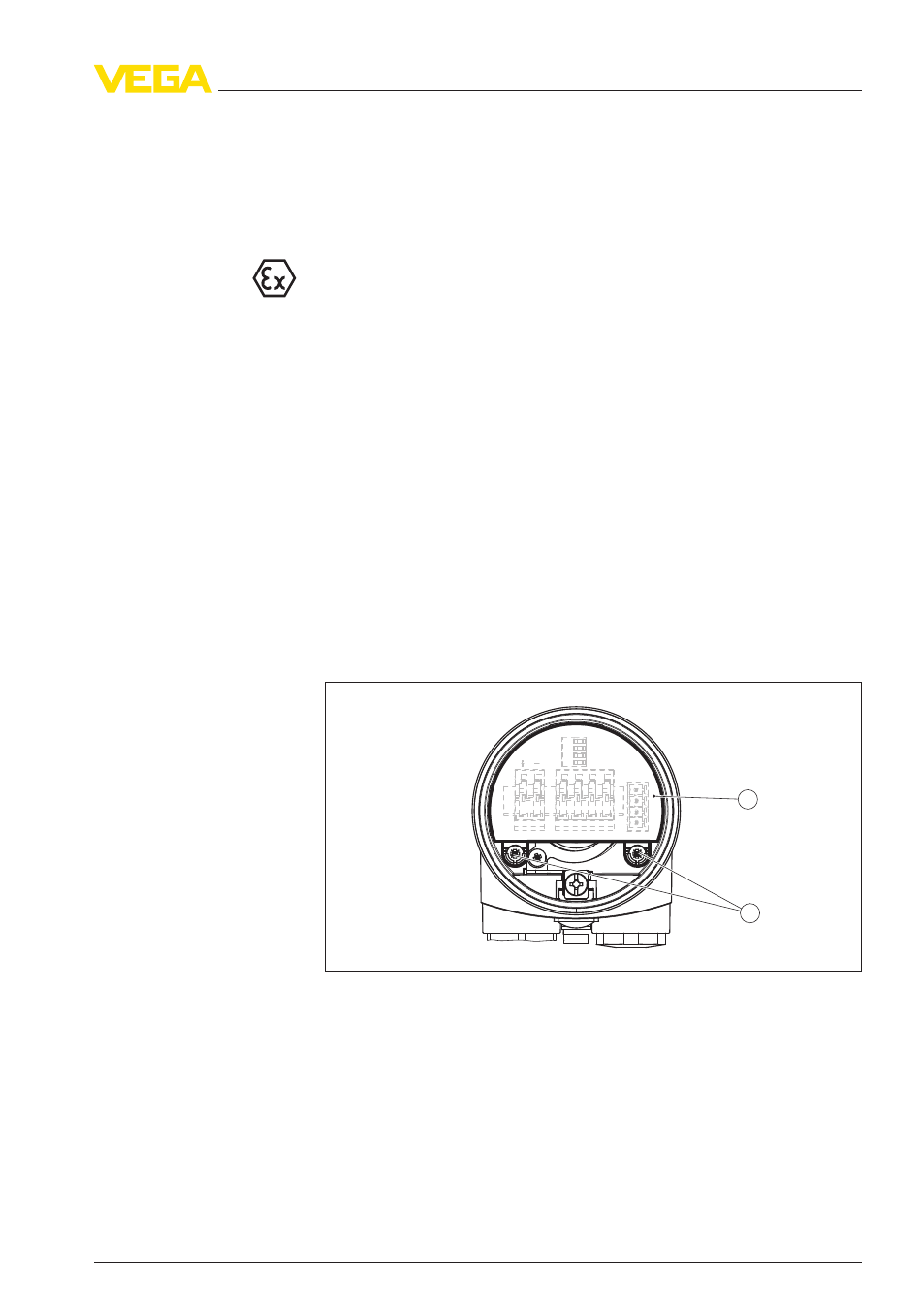

Fig. 1: Loosening the holding screws
1 Electronics module
2 Screws (2 pcs.)
5 Pull out the old electronics module
6 Compare the new electronics module with the old one. The type
label of the electronics module must correspond to that of the old
electronics module. This applies particularly to instruments used in
hazardous areas.
7 Insert the electronics module carefully. Make sure that the plug is
in the correct position.
Electronics module -
emitting unit MP60EE.
T**
Electronics module • VEGAMIP series 60 - receiving unit 7
