3 Product description
3 .1 Structure
The scope of delivery encompasses:
l
Floating body for a point level sensor
l Nut G1½ (plastic)
l
Adapter with pin
l
Ground rod
l
Documentation
-
This supplementary operating instructions
The instrument version "Point level sensor with float" consists of a float
and the point level sensor.
1
2
3
6
4 5

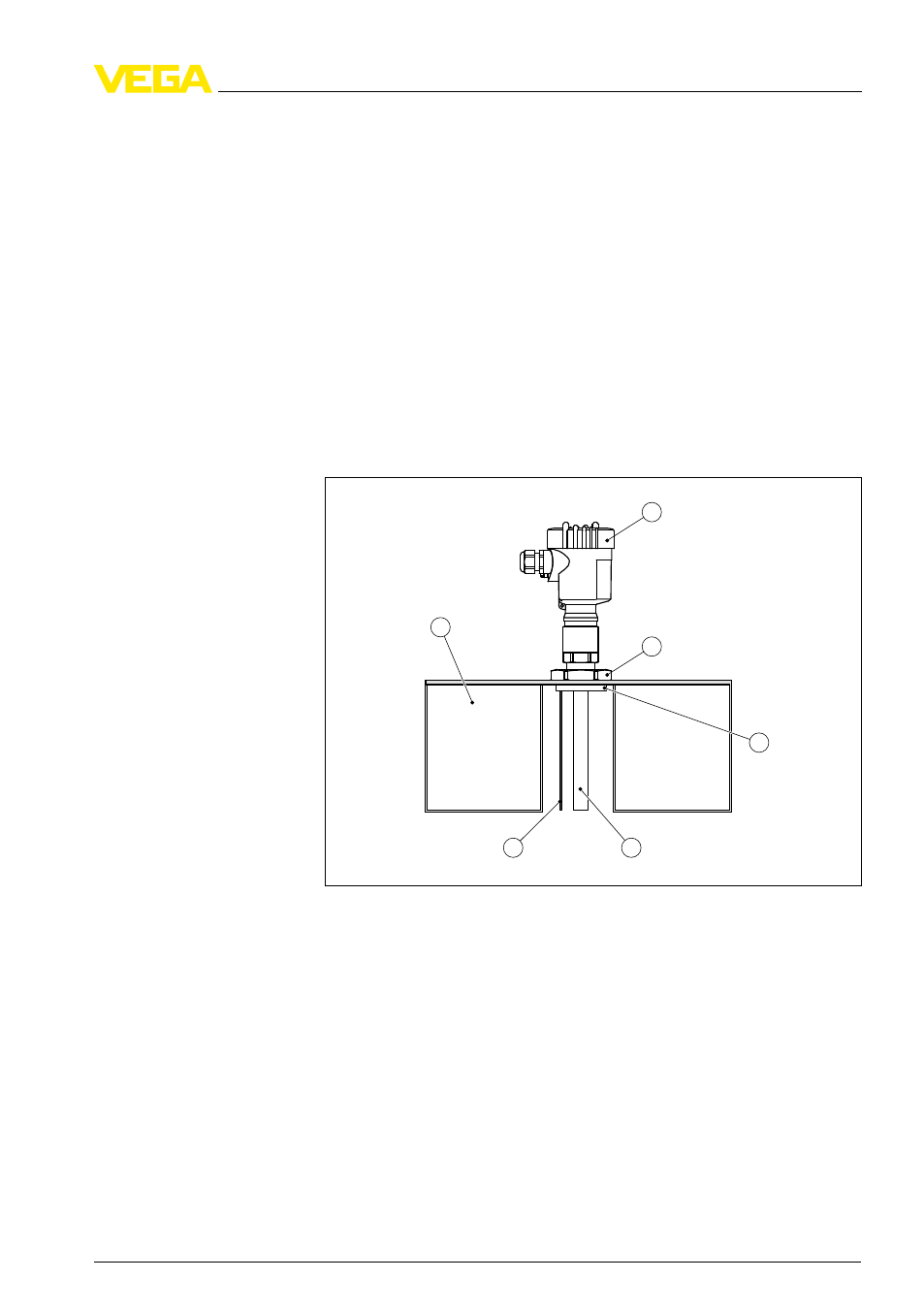

Fig. 1: Components of the float probe
1 Probe (mounted in the centre)
2 Nut (plastic)
3 Adapter (316L) with pin
4 Electrode
5 Ground electrode (screwed into the adapter)
6 Float
3 .2 Principle of operation
The float is suitable for the following plics
®
sensors:
l
VEGACAP 63
Scope of delivery
Constituent parts
Application area
Float for oil/water detection • for VEGACAP 63 5
