3 Product description
VEGACAP 98 • - Relay (DPDT)
33760-EN-130916
3 Product description
3.1 Configuration
The scope of delivery encompasses:
•
VEGACAP 98 point level switch
•
Documentation
– this operating instructions manual
– if necessary, further documents
The VEGACAP 98 consists of the components:
•
Housing cover
•
Housing with electronics
•
Process fitting with electrode
1
2
3

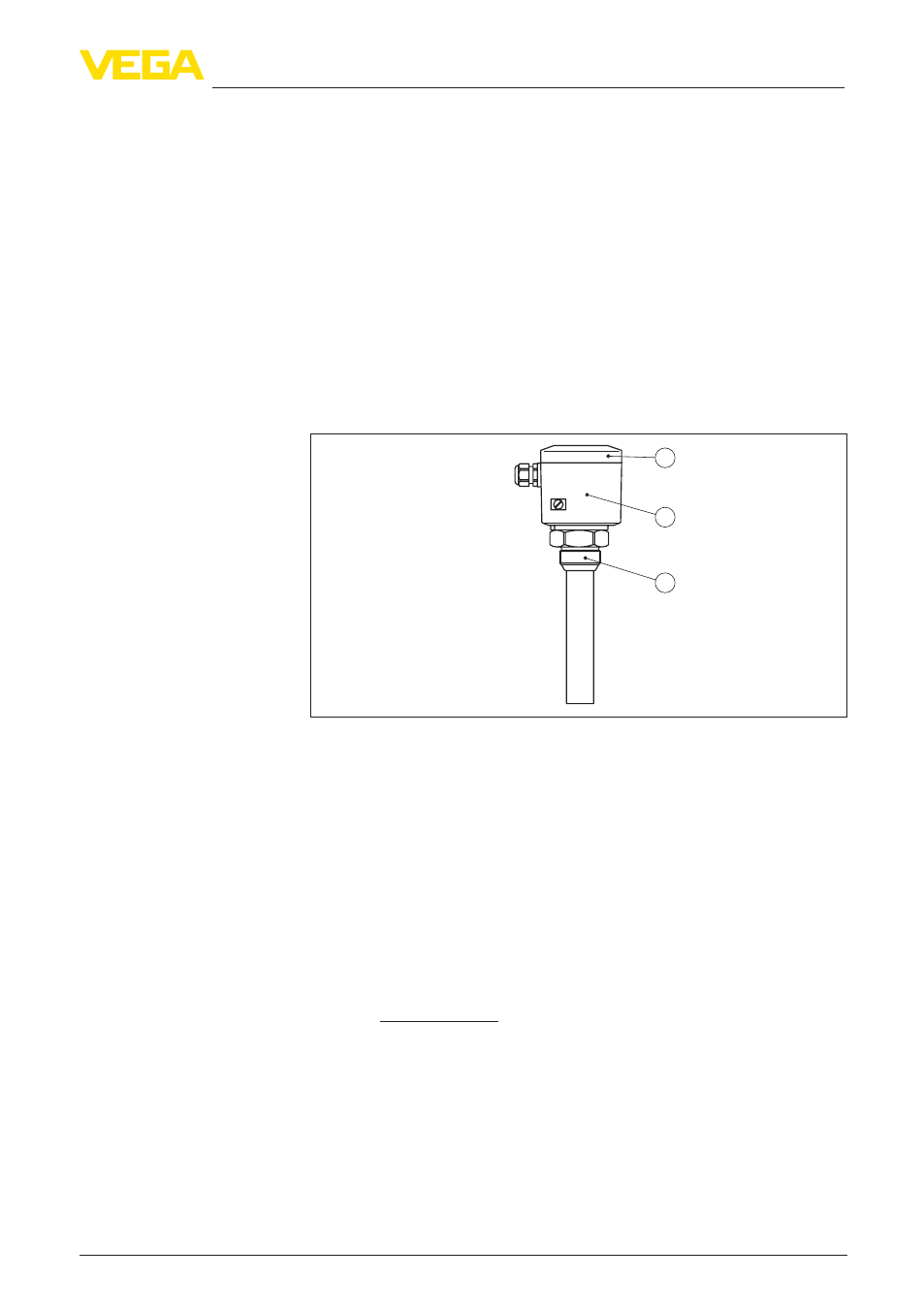

Fig. 1: VEGACAP 98
1 Housing cover
2 Housing with electronics
3 Process fitting
The nameplate contains the most important data for identification and
use of the instrument:
•
Article number
•
Serial number
•
Technical data
•
Article numbers, documentation
With the serial number, you can access the delivery data of the instru-
ment via www.vega.com, "VEGA Tools" and "serial number search".
In addition to the type label outside, you can also find the serial num-
ber on the inside of the instrument.
3.2 Principle of operation
VEGACAP 98 is a point level sensor with fully insulated, capacitive
electrode with screen segment and active tip for level detection.
Scope of delivery
Constituent parts
Type plate
Area of application
