2 Connect the black ground cable (6) to the ground screw (5)
3 Plug the green connection cables to the cable gland (4)
and the green connection cables to the thermostat (7)
together
4 Plug the red connection cables to PLICSCOM (2) and the
red connection cables to the thermostat (3) together
5 Insert the plug connector into the excavation in front of the
oscillator
6 Place the indicating and adjustment module PLICSCOM
(1) in the desired position on the electronics (you can
choose any one of four different positions - each displaced
by 90°)
7 Press PLICSCOM (1) lightly onto the electronics and turn it
to the right until it snaps in.

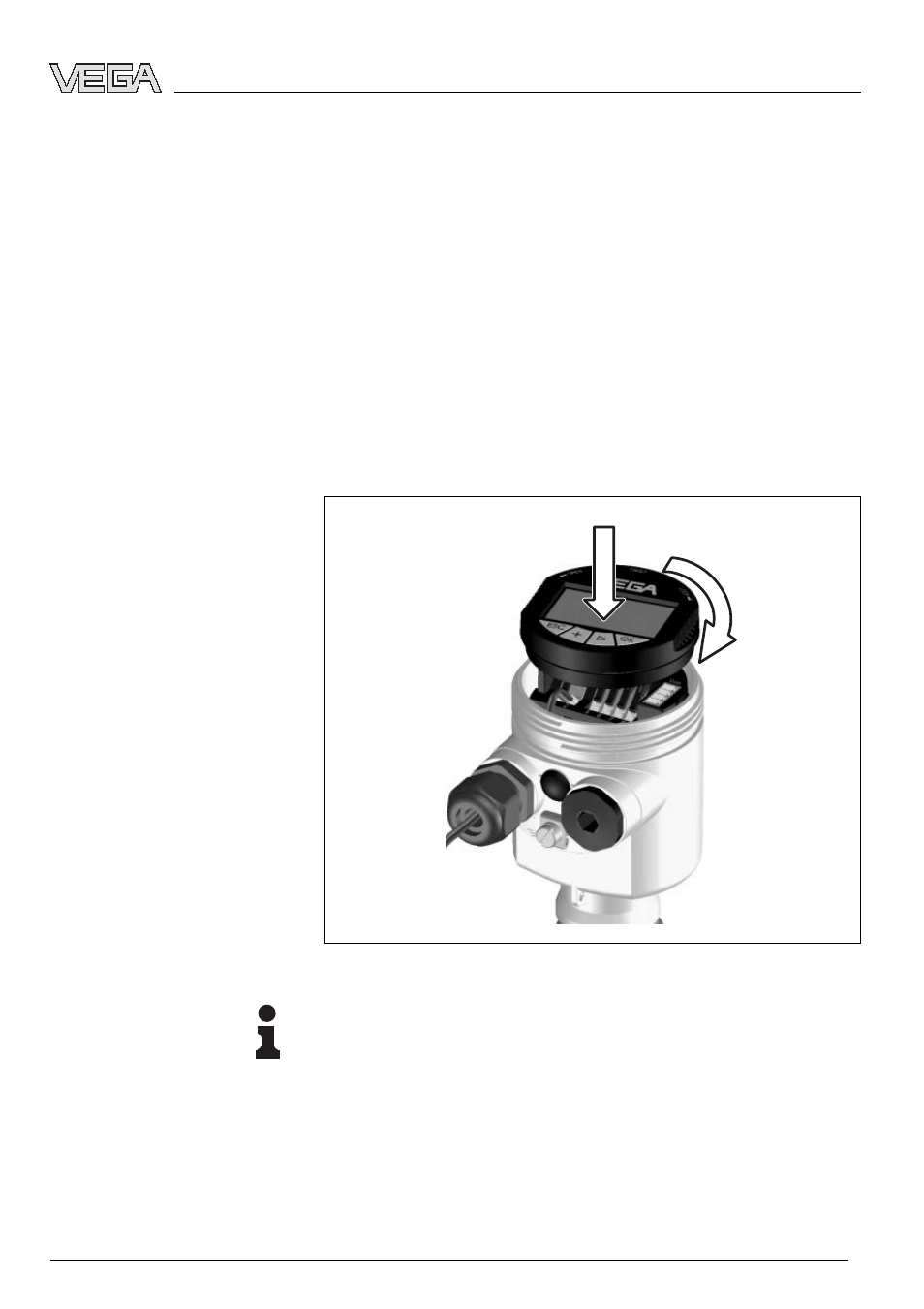

Fig. 4: Installation of PLICSCOM
Note:
If you intend to retrofit the sensor with a PLICSCOM for
continuous measured value indication, a higher cover with an
inspection glass is required.
