20°

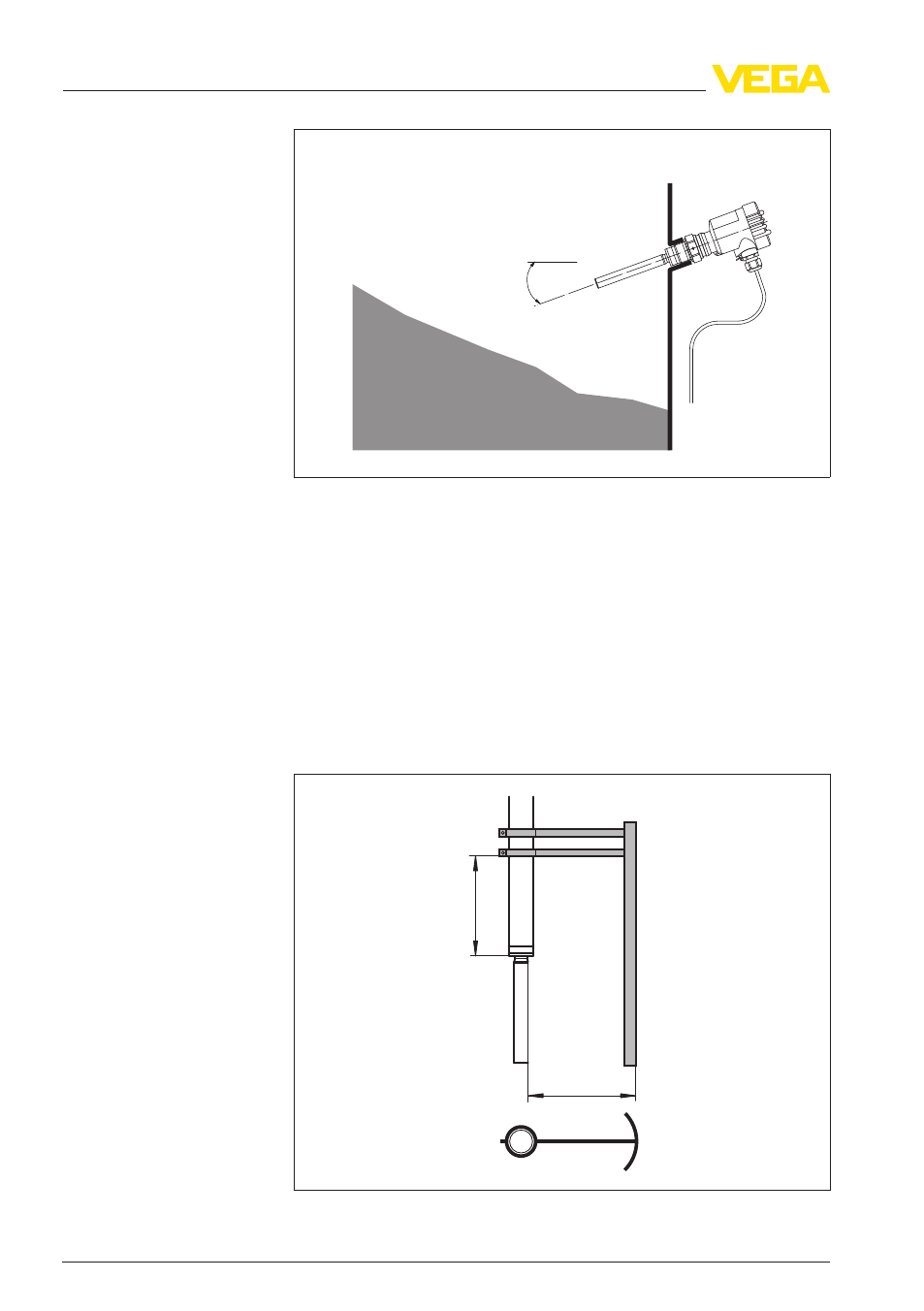

Fig. 6: Horizontal installation
If VEGAVIB 61 is mounted in the filling stream, unwanted false
measurement signals can be generated. For this reason, mount
VEGAVIB
61 at a position in the vessel where no disturbances, e.g.
from filling openings, agitators, etc., can occur.
In applications such as grit chambers or settling basins for coarse
sediments, the vibrating element must be protected against damage
with a suitable baffle.
This baffle must be manufactured by you.
> 125 mm
(> 5")
>
1
2
0
mm
(>
4
.7
")
Fig. 7: Baffle for protection against mechanical damage
Inflowing medium
Baffle protection against
falling rocks
