4.2 Mounting sequence
1 2 3 4
7 6 5

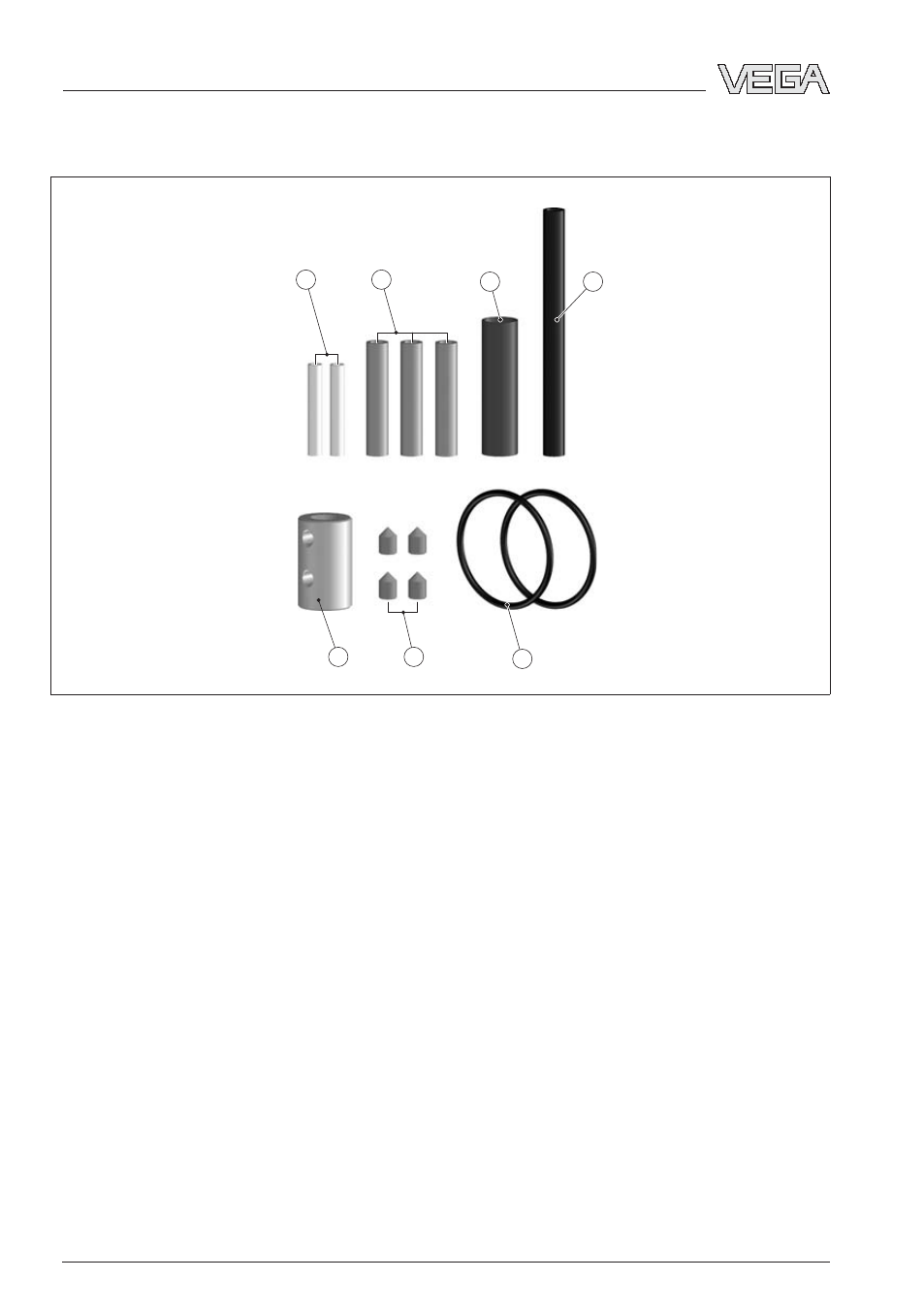

Fig. 1: Cable shortening set for VEGAVIB 62
1 Crimp connector yellow, 2 pieces, article no. 2.11444
2 Crimp connector red, 3 pieces, article no. 2.18710
3 Shrinking hose blue ø 8 x 30 mm, 1 pce., article no. 1.243
4 Shrinking hose black ø 3 x 55 mm, 1 pce., article no. 1.1207
5 O-rings ø 24 x 1.5 mm, 2 pcs., article no. 2.28877
6 Pins M4 x 6, 4 pcs., article no. 2.28894
7 Cable clamp ø 12 x 20 mm, 1 pce., article no. 2.28876
The numbers refer to the figures on the following pages.
1 Interrupt power supply of the sensor and remove con-
nection cable.
2 Dismount the sensor.
3 Clean cable (9) of the sensor.
4 Determine the new sensor length (L) according to the
illustration with a measuring tape and mark with a marker.
Specifications on the sensor length (L) are available in the
operating instructions of the sensor.
