3 Product description
VEGACAP 65 • - contactless electronic switch
30017-EN-130916
2
1
11
10
13
12
14
15
9
3
6
4
5
7
8

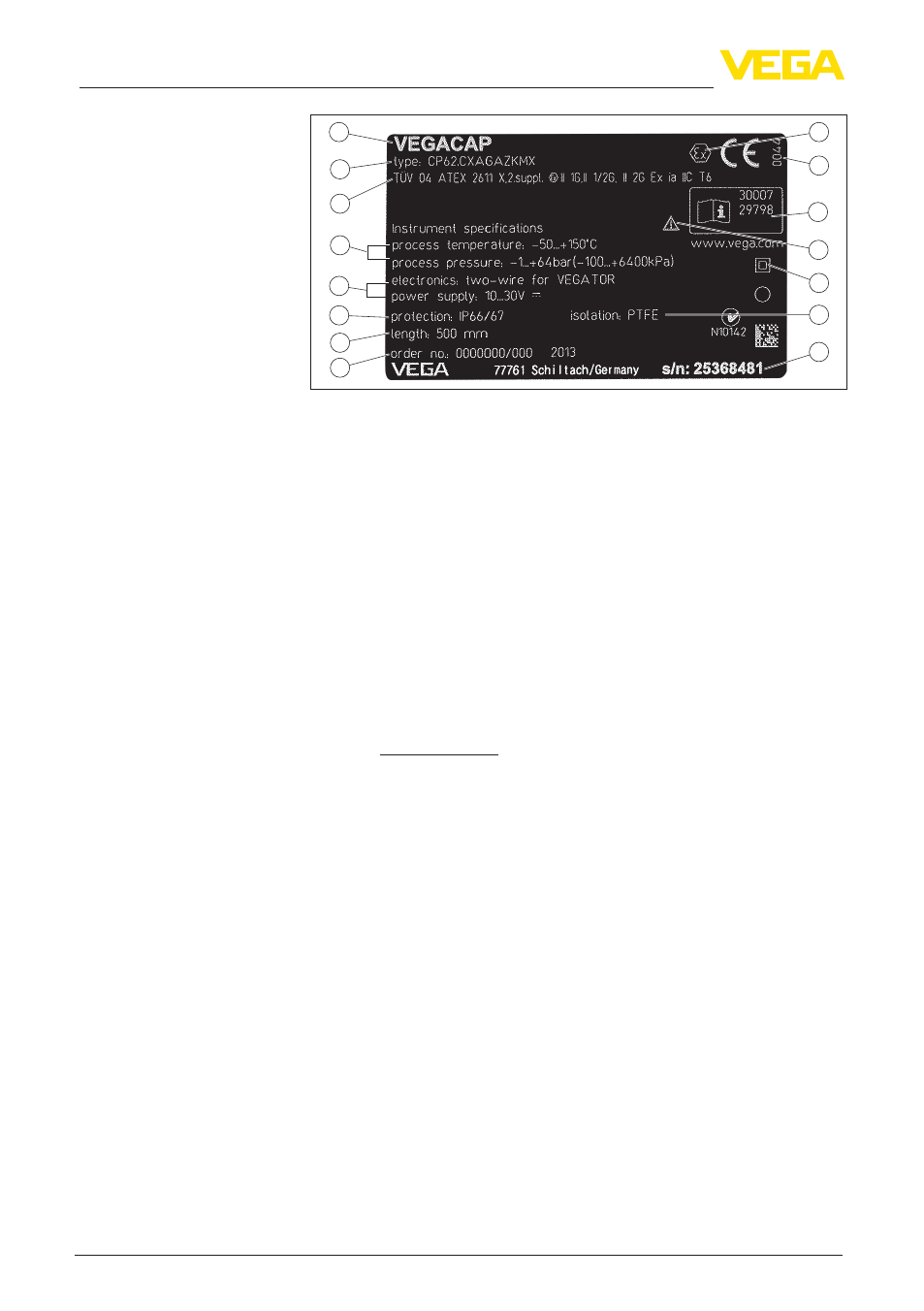

Fig. 2: Layout of the type label (example)
1 Instrument type
2 Product code
3 Approvals
4 Process and ambient temperature, process pressure
5 Power supply and signal output, electronics
6 Protection rating
7 Probe length
8 Order number
9 Serial number of the instrument
10 Material, wetted parts
11 Symbol of the device protection class
12 Reminder to observe the instrument documentation
13 ID numbers, instrument documentation
14 Notified authority for CE marking
15 Approval directives
With the serial number, you can access the delivery data of the instru-
In addition to the type label outside, you can also find the serial num-
ber on the inside of the instrument.
3.2 Principle of operation
VEGACAP 65 is a point level sensor with capacitive electrode for level
detection.
VEGACAP 65 is very rugged and maintenance-free and can be used
in all areas of industrial process technology.
Probes such as VEGACAP 65 can be used in solids and in non-
conductive liquids.
Typical applications are overfill and dry run protection.
The capacitive measuring principle places no special requirements
on installation. Hence, many different applications can be equipped
with VEGACAP 65.
Probe, measured product and vessel wall form an electrical capacitor.
The capacitance is influenced by three main factors.
Area of application
Functional principle
