9 Supplement
VEGACAP 65 • - contactless electronic switch
30017-EN-130916
1
2
3
-50°C
(-58°F)
50°C
(122°F)
40°C
(104°F)
-40°C
(-40°F)
80°C
(176°F)
0°C
(32°F)
100°C
(212°F)
150°C
(302°F)
200°C
(392°F)

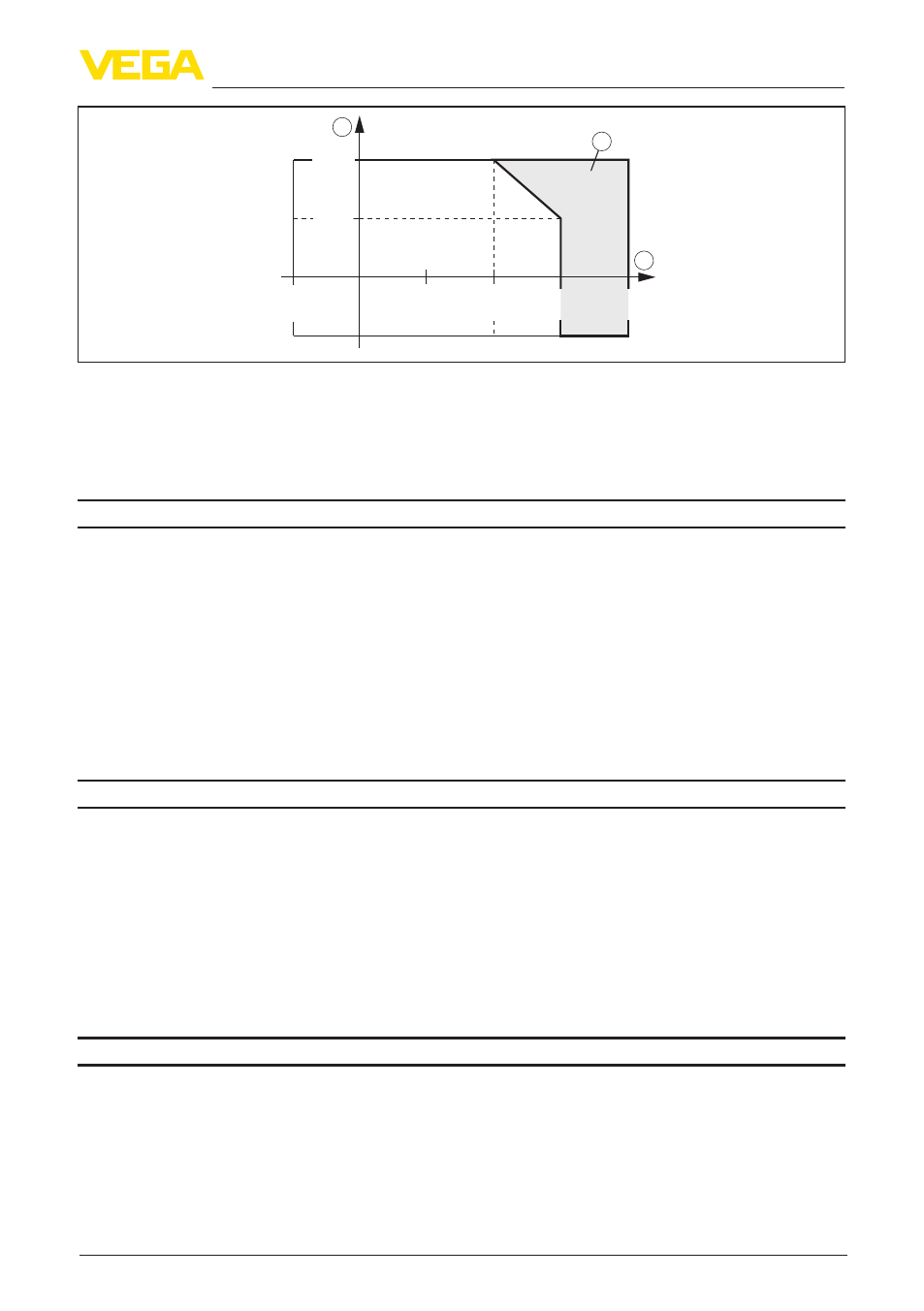

Fig. 34: Ambient temperature - Process temperature
1 Process temperature
2 Ambient temperature
3 Temperature range with temperature adapter
Dielectric constant ≥ 1.5
Electromechanical data
Cable entry/plug (dependent on the version)
Ʋ Single chamber housing – 1 x cable entry M20 x 1.5 (cable: ø 5 … 9 mm),
1 x blind plug M20 x 1.5; attached 1 x cable entry
M20 x 1.5
or:
– 1 x cable entry ½ NPT, 1 x blind plug ½ NPT, 1 x cable
entry ½ NPT
or:
– 1 x plug M12 x 1; 1 x blind plug M20 x 1.5
Spring-loaded terminals for wire cross-section up to 1.5 mm² (AWG 16)
Adjustment elements
Mode switch
Ʋ Min. Min. detection or dry run protection
Ʋ Max. Max. detection or overflow protection
DIL switch for measuring range selection
Ʋ range 1 0 … 20 pF
Ʋ range 2 0 … 85 pF
Ʋ range 3 0 … 450 pF
Potentiometer Switching point adaptation
Voltage supply
Operating voltage
20 … 253 V AC, 50/60 Hz, 20 … 253 V DC
Domestic current requirement approximately 3 mA (via load circuit)
Load current
Ʋ Min. 10 mA
Ʋ Max. 400 mA (at I > 300 mA the ambient temperature can be
max. 60 °C/140 °F) max. 4 A up to 40 ms
