253 V AC, 253 V DC
With circuits > 150 V AC/DC, the relay contacts
must be in the same circuit.
Switching current
-
Min. 10 µA
-
Max. 3 A AC, 1 A DC
Breaking capacity
-
Min. 50 mW
-
Max. 750 VA AC, 54 W DC
If inductive loads or stronger currents are switched
through, the gold plating on the relay contact
surface will be permanently damaged. The contact
is then no longer suitable for switching low-level
signal circuits.
Contact material (relay contacts) AgNi (Au plated) or AgSnO (Au plated)
Modes (switchable) min./max.
Switching delay
-
When immersed 0.5 s
-
When laid bare 1 s
Ambient conditions
Ambient temperature on the housing -40 … +80 °C (-40 … +176 °F)
Storage and transport temperature -40 … +80 °C (-40 … +176 °F)
Process conditions
Measured variable Limit level of solids
Process pressure -1 … 16 bar/-100 … 1600 kPa (-14.5 … 232 psig)
6 bar
(87psi)
-50°C
(-58°F)
16 bar
(232psi)
50°C
(122°F)
100°C
(212°F)
0°C
(32°F)
150°C
(302°F)
200°C
(392°F)
250°C
(482°F)
1
2

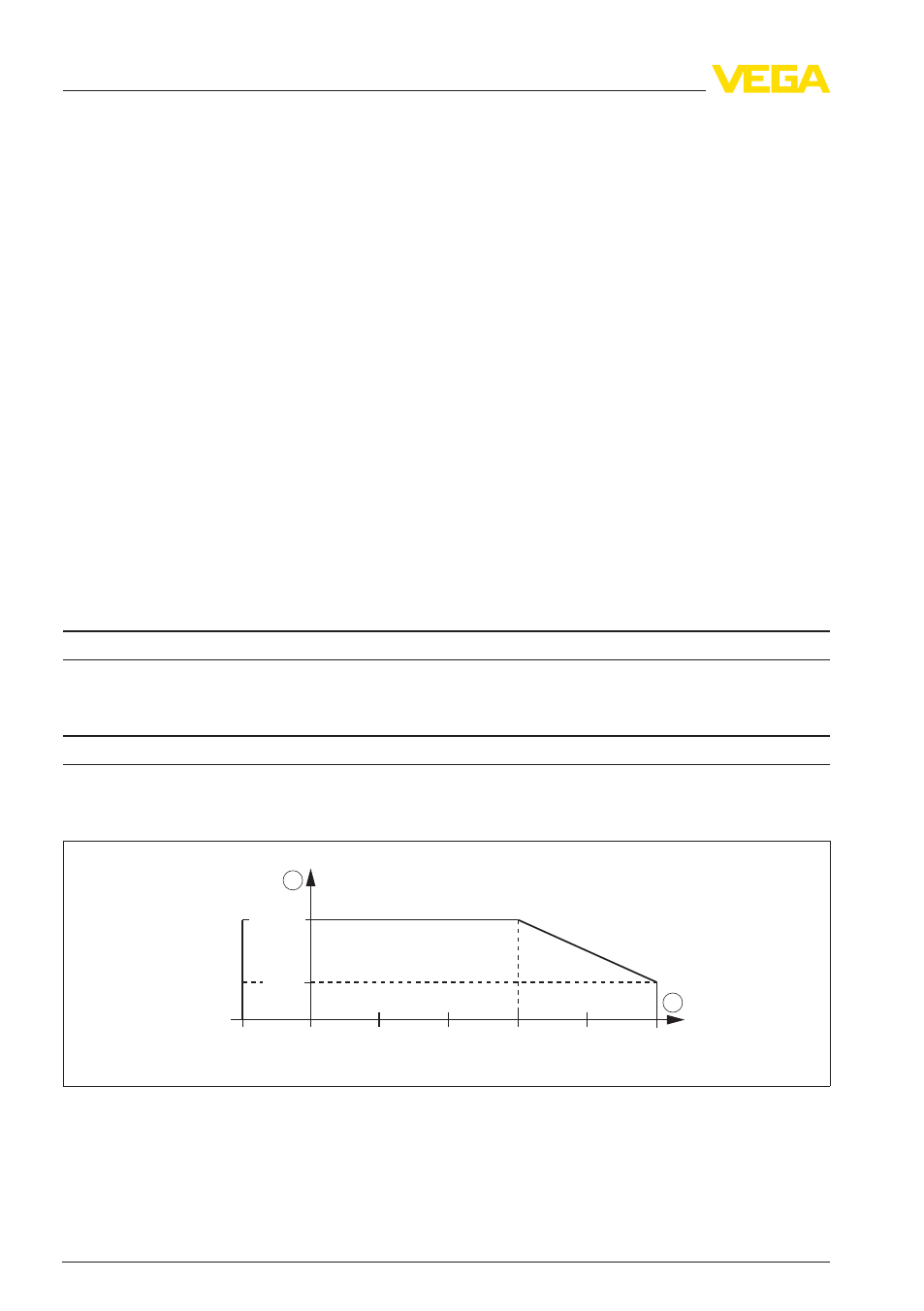

Fig. 25: Process pressure - Process temperature
1 Process temperature
2 Process pressure
VEGAVIB 63 of 316L -50 … +150 °C (-58 … +302 °F)
