9 Supplement
VEGACAP 66 • - two-wire
30023-EN-130916
Ʋ double channel diversitary redundant
architecture (1oo2D)
up to SIL3
You can find detailed information in the supplied Safety Manual of the instrument series or under
"www.vega.com", "Downloads", "Approvals".
Approvals
Instruments with approvals can have different technical data depending on the version.
For that reason the associated approval documents of these instruments have to be carefully
noted. They are part of the delivery or can be downloaded under www.vega.com via "VEGA Tools"
and "serial number search" as well as via "Downloads" and "Approvals".
9.2 Dimensions
Housing in protection IP 66/IP 67 and IP 66/IP 68; 0.2 bar
3 2 1 4
~ 69 mm
(2.72")
ø 79 mm
(3.11")
117 mm (4.61"
)
M20x1,5/
½ NPT
~ 59 mm
(2.32")
ø 80 mm
(3.15")
112 mm (4.41"
)
M20x1,5/
½ NPT
~ 69 mm
(2.72")
ø 79 mm
(3.03")
112 mm (4.41"
)
M20x1,5/
½ NPT
~ 116 mm (4.57")
ø 86 mm (3.39")
11
6 mm (4.57"
)
M20x1,5
M20x1,5/
½ NPT

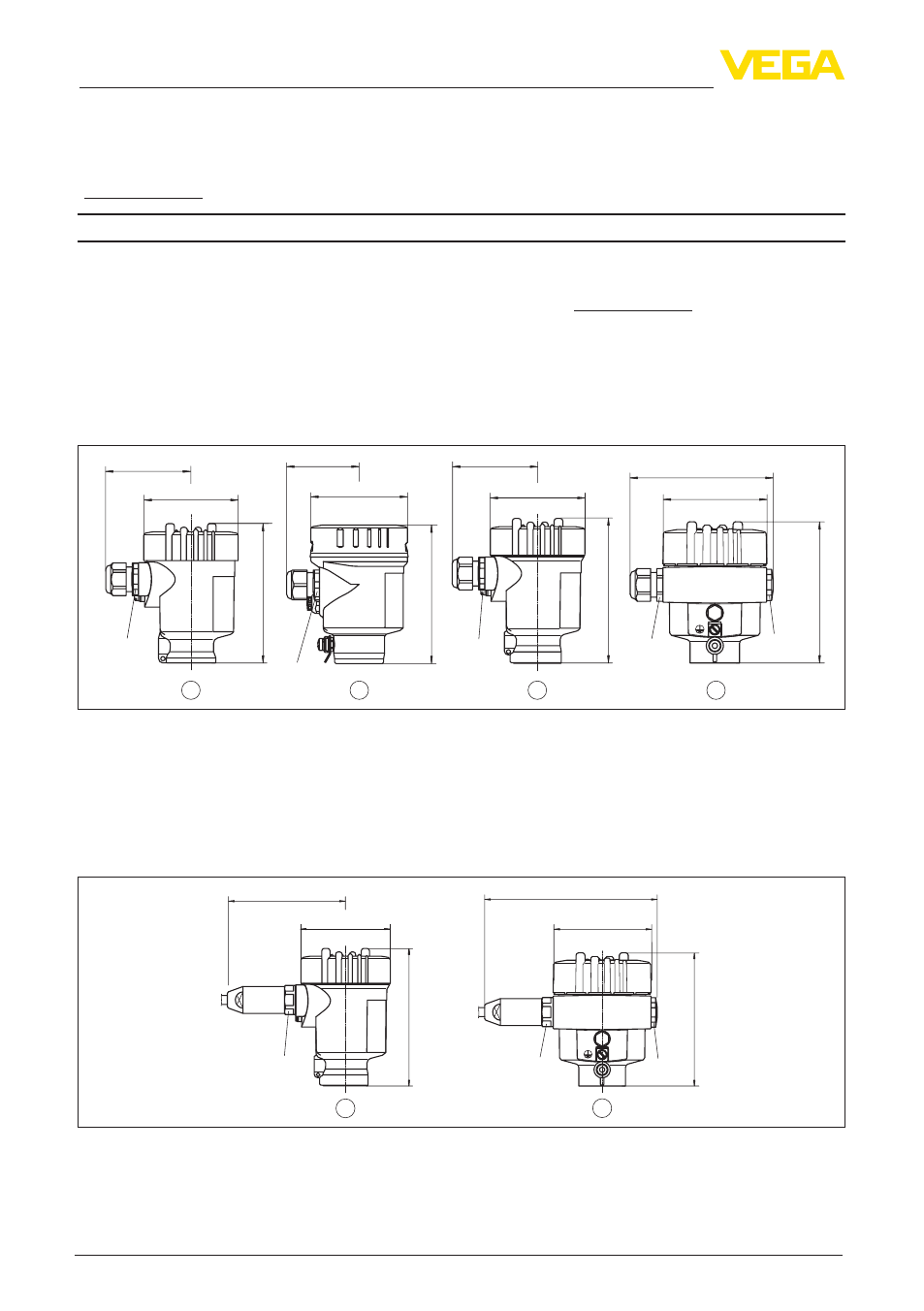

Fig. 19: Housing versions in protection IP 66/IP 67 and IP 66/IP 68; 0.2 bar
1 Plastic housing
2 Stainless steel housing, electropolished
3 Stainless steel housing, precision casting
4 Aluminium housing
Housing in protection IP 66/IP 68 (1 bar)
117 mm (4.61"
)
~ 103 mm
(4.06")
ø 77 mm
(3.03")
116 mm (4.57"
)
~ 150 mm
(5.91")
ø 84 mm
(3.31")
M20x1,5 M20x1,5 M20x1,5
1 2
Fig. 20: Housing versions with protection rating IP 66/IP 68 (1 bar)
1 Stainless steel housing, precision casting
2 Aluminium housing
