1
4 4 4
2 3

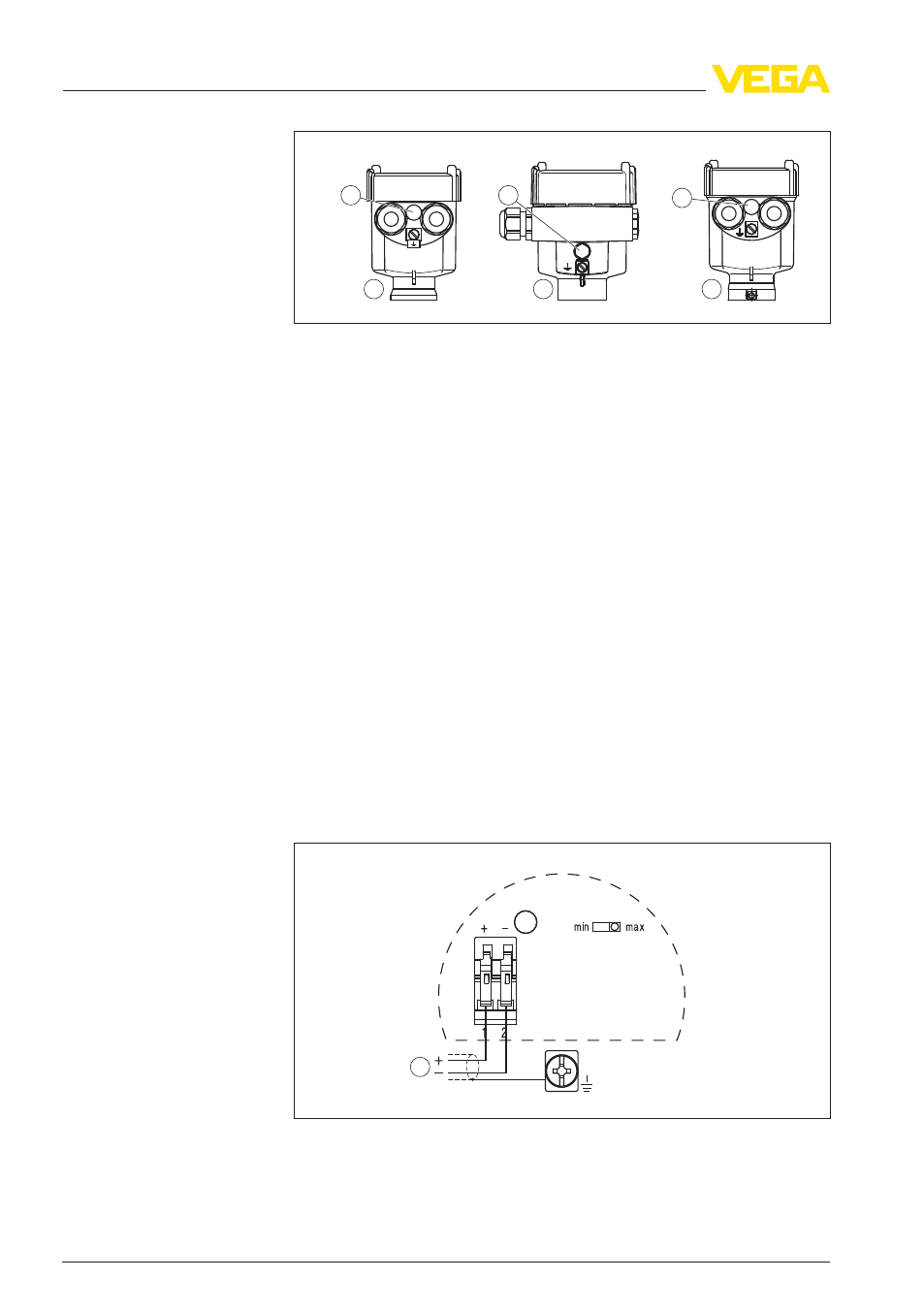

Fig. 8: Material versions, single chamber housing
1 Plastic (not with EEx d)
2 Aluminium
3 Stainless steel (not with EEx d)
4 Filter element for pressure compensation or blind stopper with version IP 66/
IP 68, 1 bar (not with EEx d)
For connection to a VEGATOR (Ex) signal conditioning instrument.
The sensor is powered by the connected VEGATOR signal
conditioning instrument. Further information is available in chapter
"T
echnical data", "Ex-technical data" are available in the supplied
"S afety information manual".
The wiring example is applicable for all suitable signal conditioning
instruments.
If the mode switch of VEGAVIB 62 is correctly set to "max.", the control
lamp on VEGAVIB 62 lights.
l red - with submerged vibrating element
l green - with uncovered vibrating element
Take note of the operating instructions manual of the signal
conditioning instrument. Suitable signal conditioning instruments are
listed in chapter "Technical data".
1
Fig. 9: Wiring plan
1 Voltage supply
Housing overview
Wiring plan
16 VEGAVIB 62 • - two-wire
5 Connecting to power supply
