VEGA Housing type 505 - Manual (Page 5)

Housing type 505 5
62
200
180
6
12
ø4,5 13,7
106,7
19,4
41,5 10,3
VEGAMET
Product description
Front side
Holes
Terminal socket
Housing
Mounting
Carrier rail 35 x 15 acc. to EN 50 022
Mounting plate 3 holes with 4,5 mm ø
3 screws M4 x 12 mm
Mechanical data
Dimensions W x H x D = 62 x 180 x 198 mm
Weight approx. 650 g
Ambient conditions
Permissible ambient temperature -20°C … +60°C
Storage and transport temperature -40°C … +80°C
CE-conformity
Housing type 505 is manufactured accordin g to the European standard and meets the
protective regulations of EMVG (89/336/EWG) and NSR (73/23/EWG). The conformity has
been judged acc. to the following standards:
EMVG
Emission EN 50 081 - 1: 1992
Susceptibility EN 50 082 - 2: 1995
NSR EN 61 010 - 1: 1993

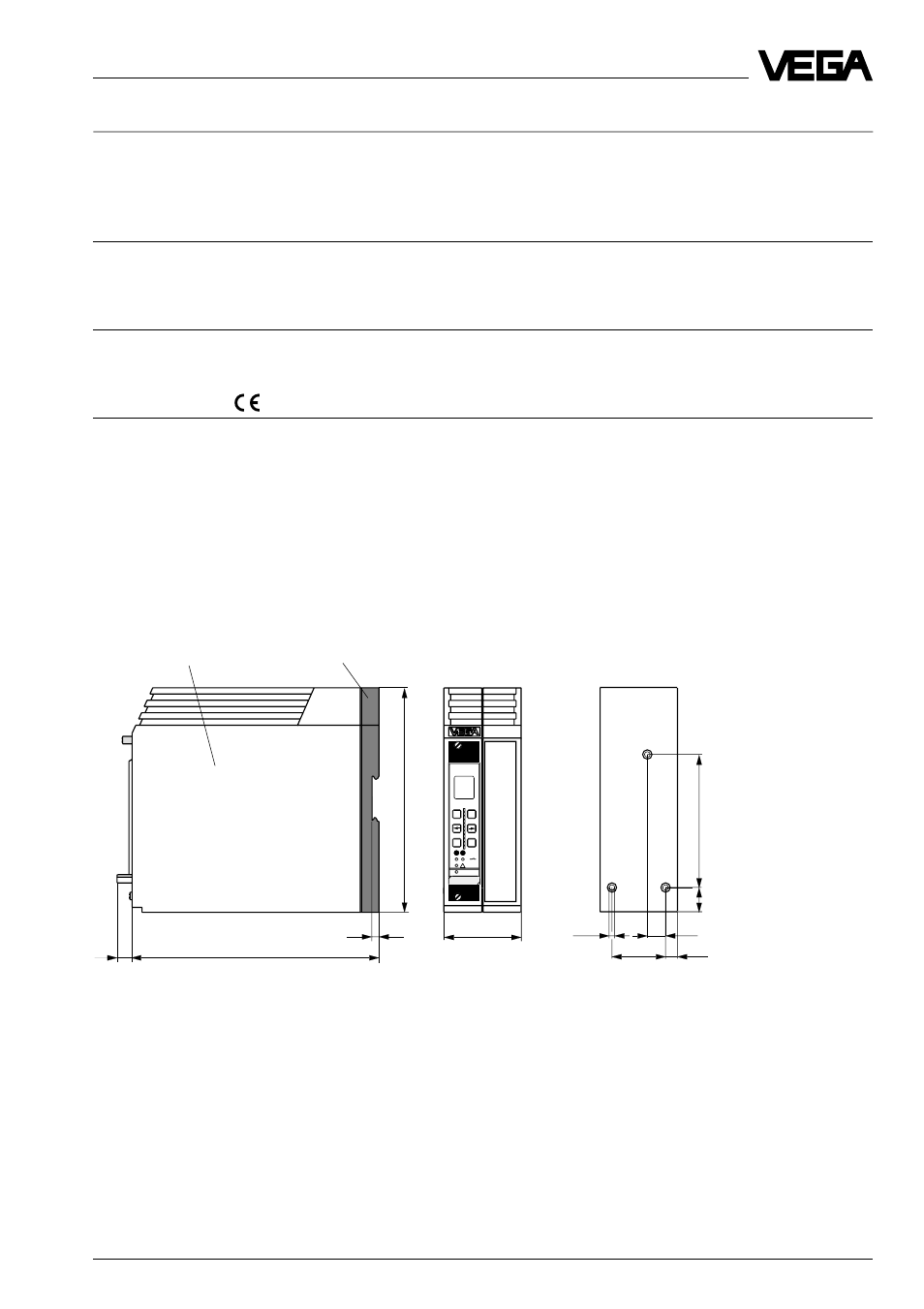

1.4 Dimensions
