4 VEGAMET 407 AF/AFT
Mounting instructions

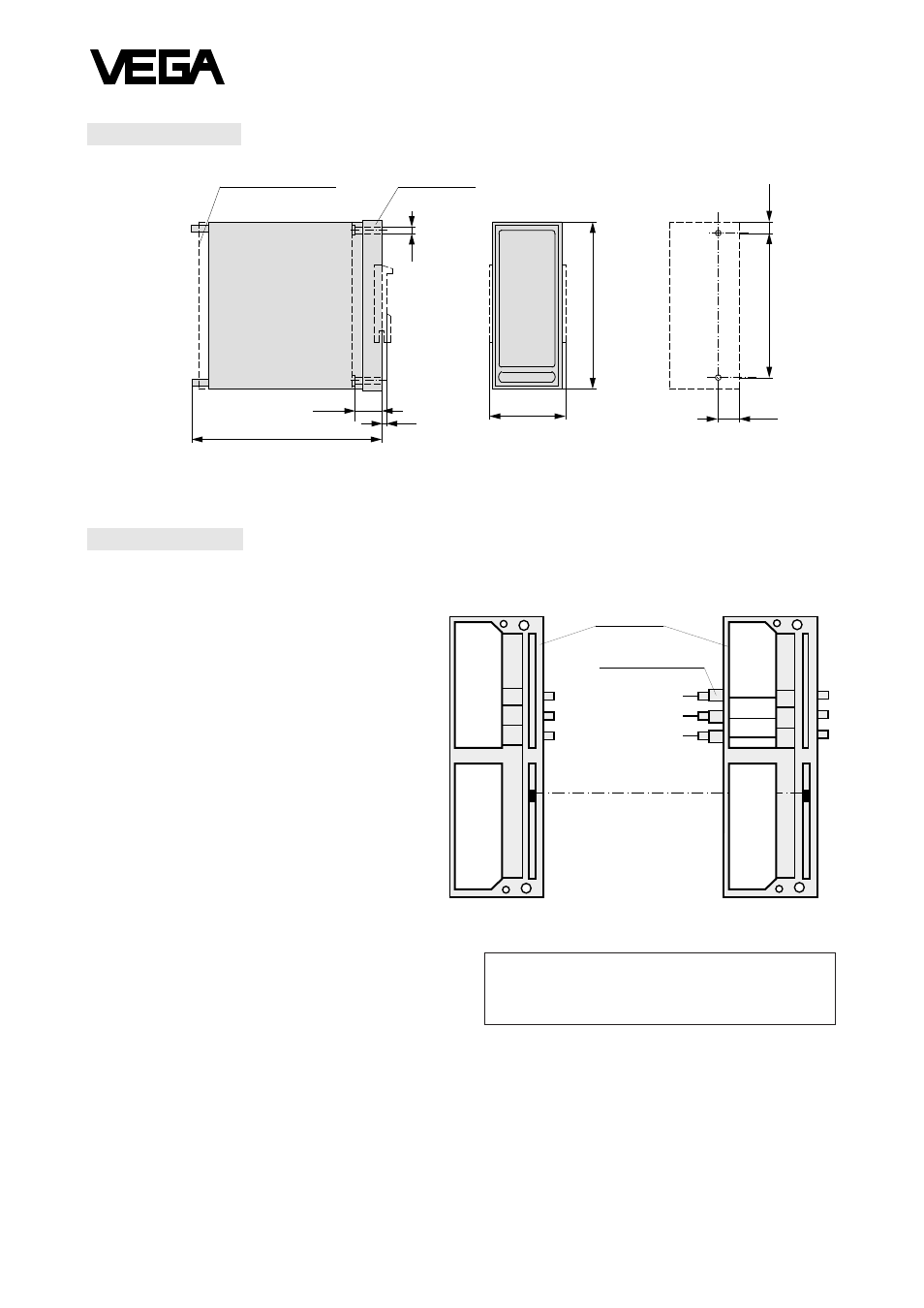

Dimensional drawing
14
13
N
L1
VEGAMET VEGAMET
15
14
13
15
The mounting assembly is provided as
standard feature with
- respective terminals
- interconnection pins
- distance sleeves for mounting
several instruments in a row
- coded key
Spacers slide onto the interconnecting
pins and ensure that adjacent instru-
ments have a minimum gap of 5 mm
between each other.
For mounting on standard rail
(TS 35 mm) an adapter is enclosed.
The two screws located on the front of
the instrument are used to fasten the
instrument to the mounting assembly.
In case of single mounting remove the
interconnection pins and connect the
supply voltage directly. The coded key
avoids that instruments of series 400
are exchanged.
Remove all interconnection pins on the
first plug-in socket.
Attention:
The pins on terminals 13, 14 and 15 carry the supply
voltage.
127 110
58
4
143
22,6
8,7
15,8
2
Dimensions in mm Holes ø 4,5
or thread M4
transparent cover Plug-in socket
Plug-in socket
Distance sleeves
Coded key
Interconnecting pins
for supply voltage
