5 The integration time is the time required by the output
current signal to reach 90 % of the actual height after a
sudden level change.
6 Set rotary switch to "OPERATE"
7 Close the housing cover
6.2 Indication scaling
1
2
3

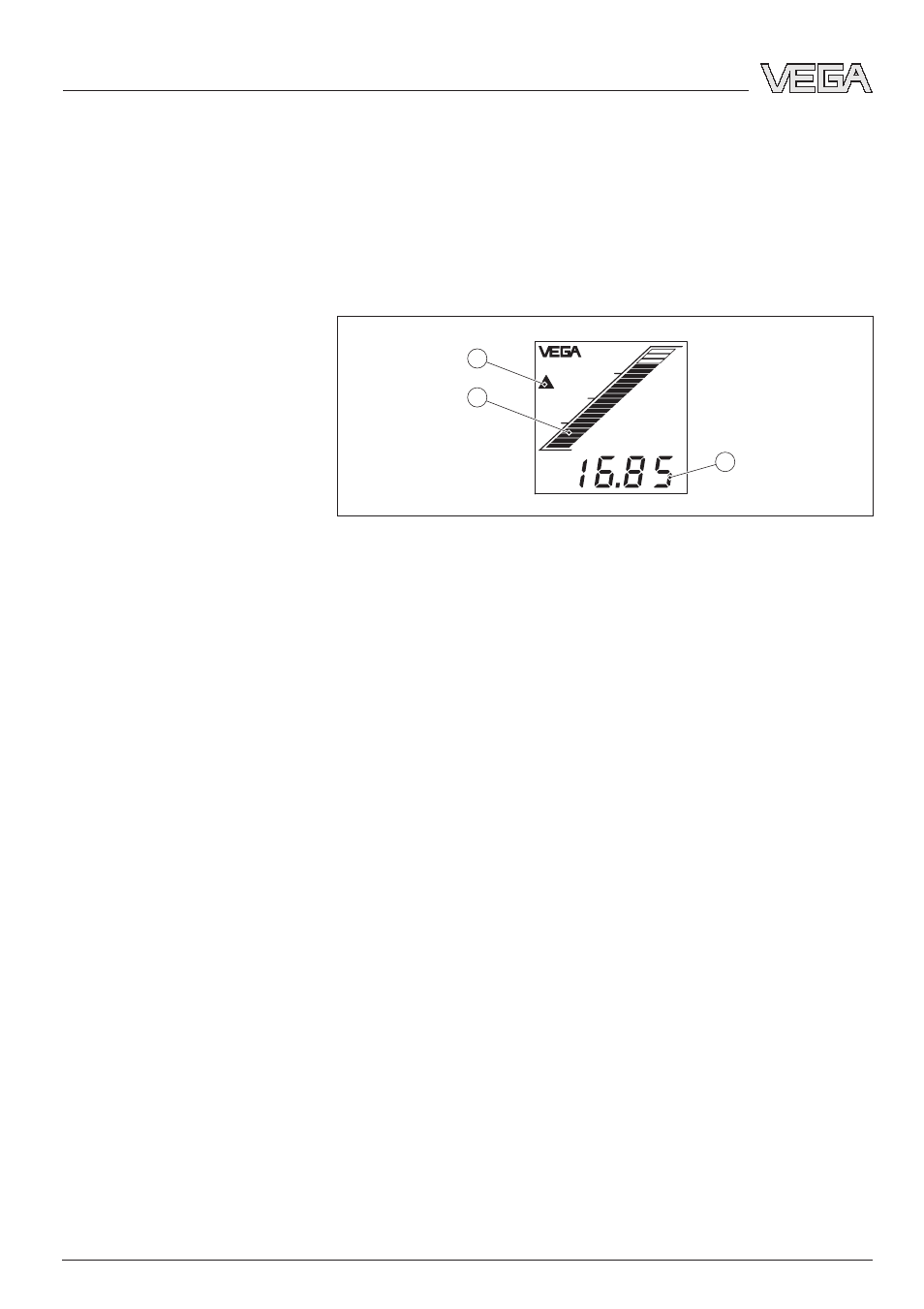

Fig. 9: Indicating elements of VEGADIS 12
1 Bar graph
2 Tendency indication
3 Digital value
l four positions as well as signa and decimal point
l individual scaling between -9999 … +9999
The display outputs the current 4 … 20 mA as bar graph and
digital value.
With 4 mA no segment of the bar graph appears, with 20 mA
all segments appear. This assignment is fix.
You can scale the digital value to any value between -9999 …
+9999 via the adjustment module.
To scale, proceed as follows:
1 Open housing cover
2 Initial value: Set rotary switch to "zero"
3 Set the requested value, e.g. 0 with the [+] and [-] keys
4 Final value: Set the rotary switch to "span"
5 Set the requested value, e.g. 1000 with the [+] and [-] keys
6 Decimal point: Set the rotary switch to "point"
7 With the [+] and [-] keys you can adjust the requested
value, e.g. 8888 (no decimal point)
8 Set rotary switch to "OPERATE"
9 Close the housing cover
Indicating elements
Adjustment steps, scaling
18 VEGADIS 12
Set up
